ZX-5 5-Digit Magnetic Sensor Digital Counter

Ratings & Reviews (0)
Comment
Brand: Motorobit
Product Code: OTO.SYC.01.000005
Stokta 10+ ürün
486.00 TL + VAT
VAT Included: 583.20 TL

ZX-5 5-Digit Magnetic Sensor Digital Counter

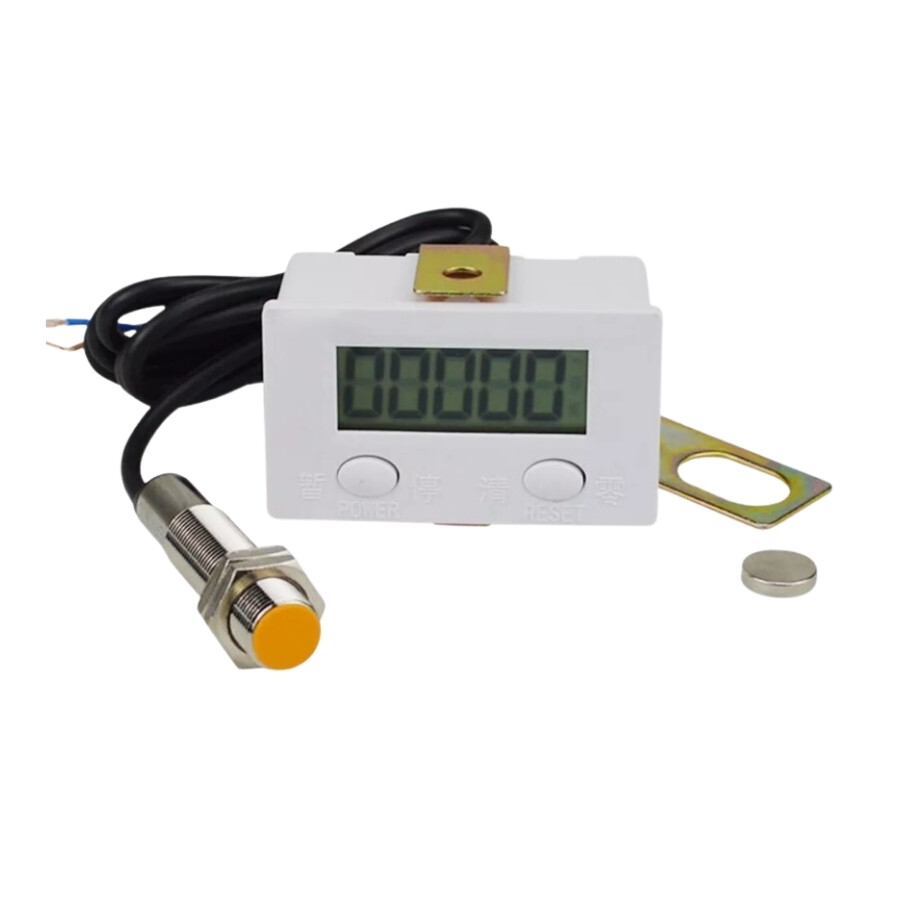

ZX-5 5-Digit Magnetic Sensor Digital Counter, the sensor that can detect approximately 5-10 mm can count up to 20 times per second. The current value can be displayed on the panel. The product is turned on and off by pressing the pause button for a long time, and it stops counting with a single press. If necessary, you can reset the counter with the reset button.

It is frequently used in automatic conveyor belt systems, wire winding machines, packaging machines, fiber machines, milling machines, etc.

There is a magnet inside the product. You can count in each pass by placing this magnet in the place where the counting will be done. It has a 5-digit display.



Features

  • Model: ZX-5
  • Operating Voltage: AA Battery (1.5V)
  • Counting Range: 0 - 99999
  • Highest Counting Frequency: 20Hz
  • Magnetic Sensing Distance: 5-10mm

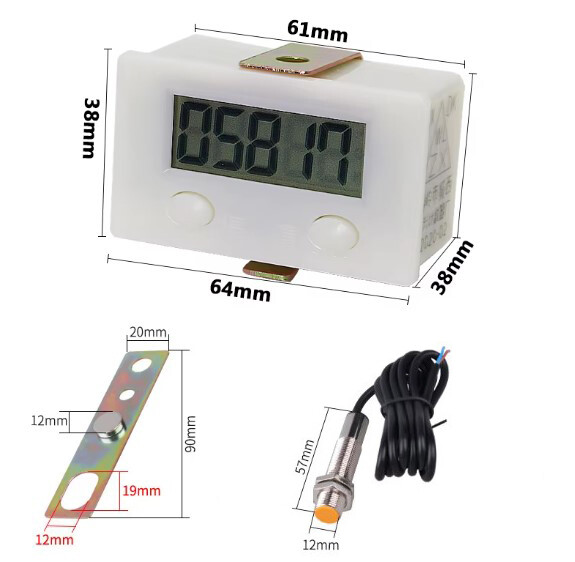

  • Case Size: 64x38x38mm
  • Mounting Slot Size: 61x38mm
Weight(Kg)
0.1
