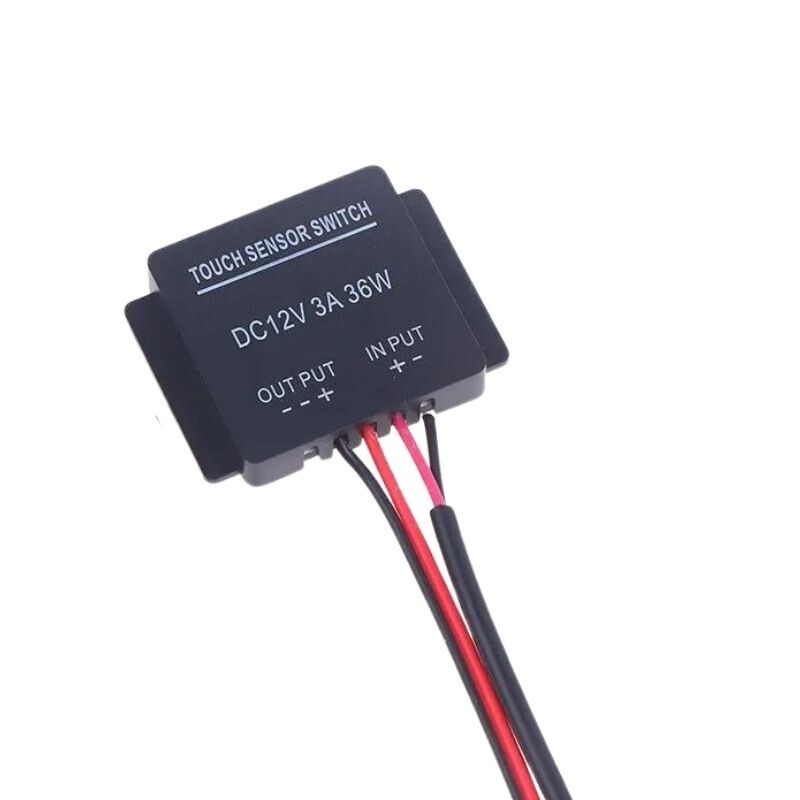

12V 3A Touch Led Driver Dimmer Module
12V 3A Touch Led Driver Dimmer Module is a led driver that works with 12V. It has on-off and dimming features. Since it is touch-sensitive, it turns on when you press it once and turns off when you press it again. It dims when you press and hold it while it is on. If you want to reverse the dimming process, you need to release it and press and hold again. You can easily stick it wherever you want and use it thanks to the adhesives on the back. It can be used in various areas of the house, bathroom mirror, make-up mirror or any lighting. It supports up to 3 amps. You can use glass or transparent plastic up to 3mm on the touch contact area.

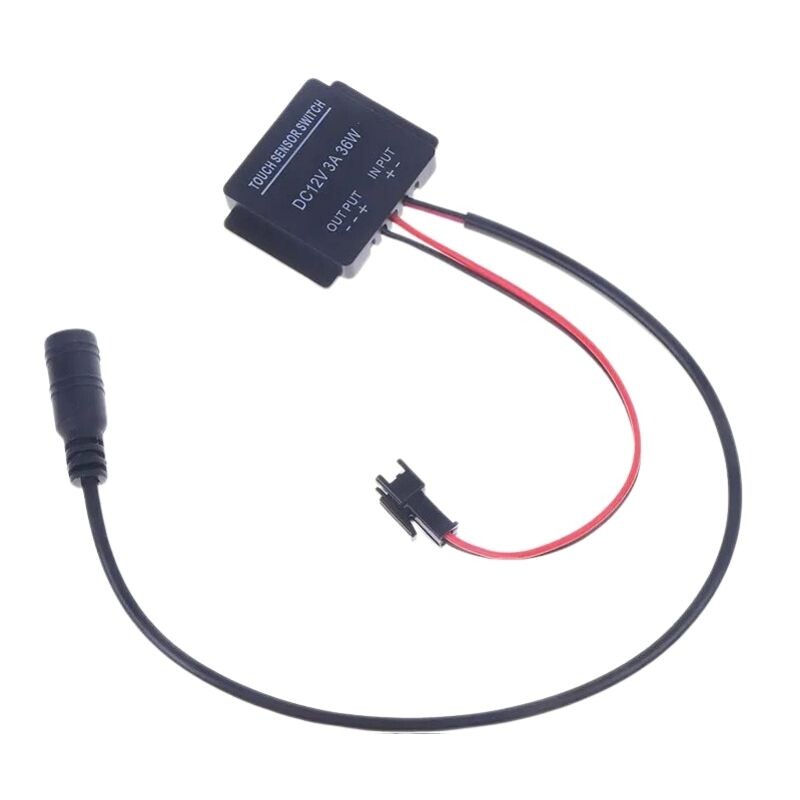

Its connection is easy. Its input is made by giving 12V power with a DC barrel jack. It can be fed with a 12V 3 amp adapter with a 5.5x2.5mm jack. Its output is a JST-SM connector. You can use it by connecting it to your LED.
Technical Specifications
- Supply: 12VDC
- Rated Current: 3A
- Electrical Life: 300,000 uses
- Mechanical Life: 2,000,000 uses
- Input Cable Length: Approx. 280mm
- Output Cable Length: Approx. 140mm
- Inductive Thickness: 3mm
- Application Area: Home smart lighting, mirror

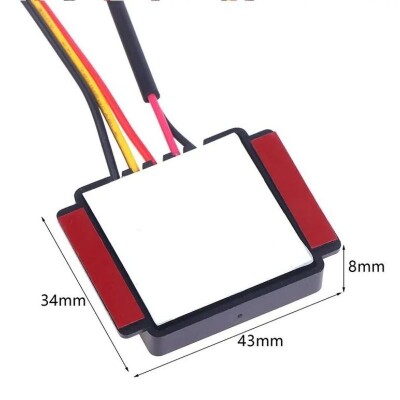

- Dimensions: 43x34x8mm
