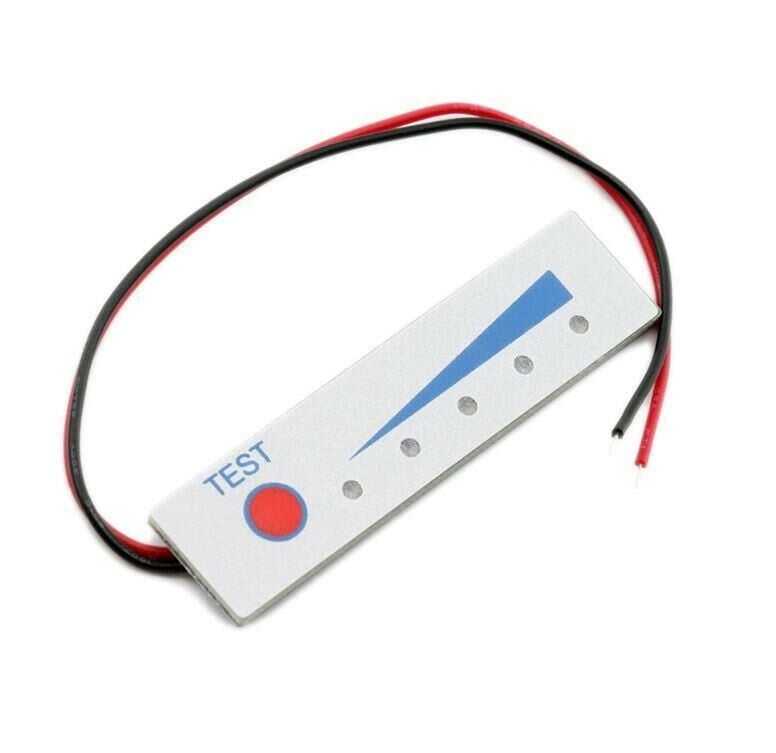

12V Battery Capacity Indicator
The battery capacity indicator allows you to instantly see the status of your battery.
Connection
- Black cable is connected to the "-" end.
- Red The cable is connected to the "+" end.

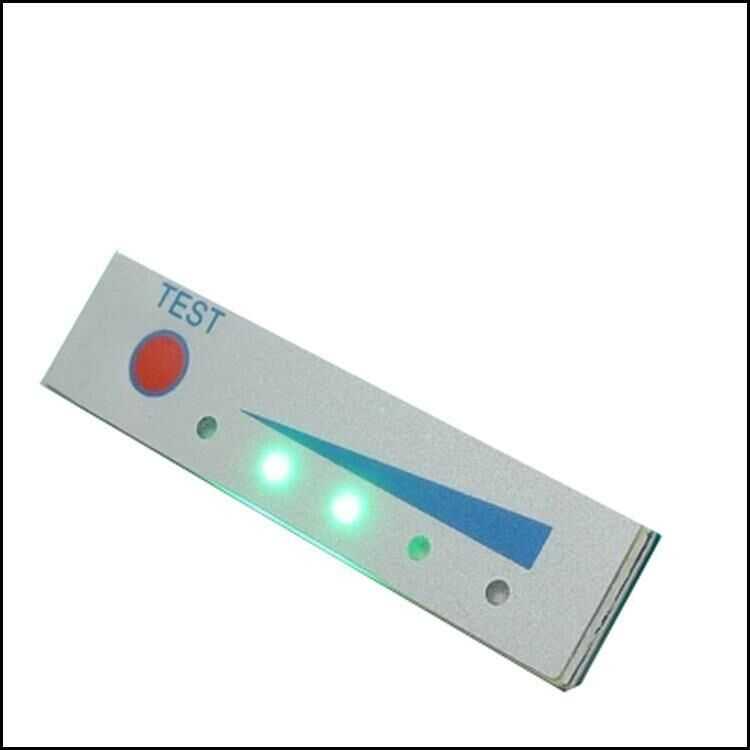

- After connecting the positive and negative terminals of the test panel to the positive and negative side of the tested battery, it will show the battery level when you press the TEST button.
- After 3-5 seconds, the capacity display will turn off and there will be no power consumption.
NOTE: If you connect the cables in reverse, the instrument panel will be damaged.
Technical Specifications
- Model: 12V Battery

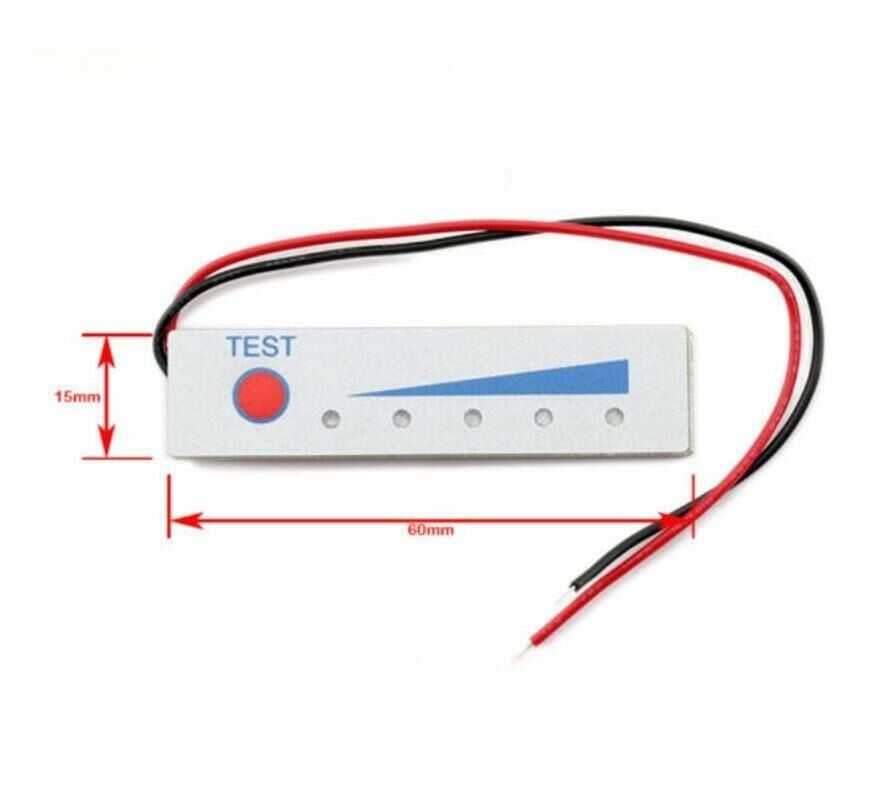

- Dimensions: 60x15x2.8mm
- Active Current: 10ma
