Solar Panel Charging Circuit DC-DC Voltage Regulator

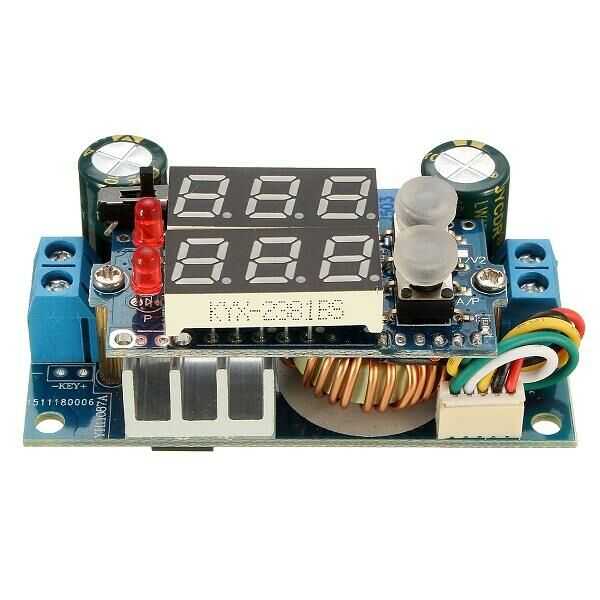

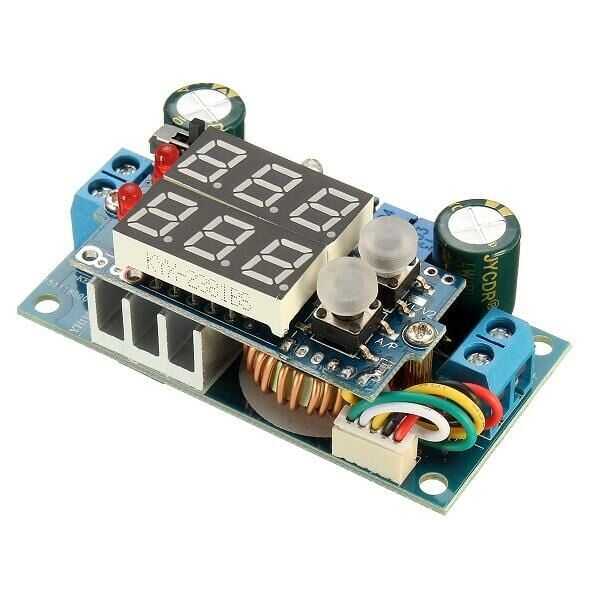

It is a circuit where you can charge your rechargeable batteries with the energy coming from solar panels. You can also use this circuit as a voltage regulator. Two 7-segment displays on the product allow you to see input and output voltages, output amperes and powers.

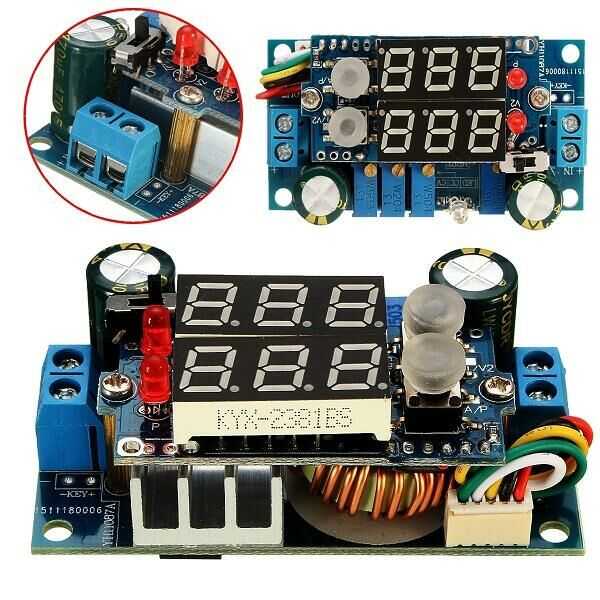

You can adjust the output voltage and constant current with the help of potentiometers on the product. You can see the functions of the buttons and pots on the product in the image below.
Technical Specifications:
- Introduction voltage: 6 ~ 36 V
- Output voltage: 1.25 ~ 32 V continuously adjustable (default output 5 V)
- MPPT voltage adjustment range: 6 ~ 36 V
- Output current range: 0.05 ~ 5A (default output current 3A)
- Turn lights output range: 0.01 ~ 5A (default turn light current 0.3A)
- Current range, part parameter error There will be a little difference due to (related to efficiency, input and output voltage, current and pressure)
- Short circuit protection: yes
- Over temperature protection: yes (automatically turns off the output after overtemperature)
- Input reverse polarity protection: none, (if necessary, please add diode)
- Multi-function dual display: input voltage, output voltage, output current, output power
- Charging indicator: It turns red when fully charged, bright green when charging.

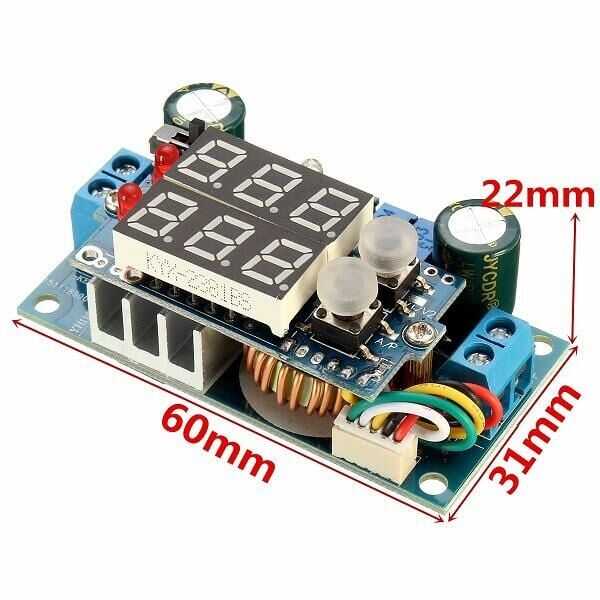

- Module dimensions: 6x3.1x2.5 cm/2.36x1.22x0.98 inches
