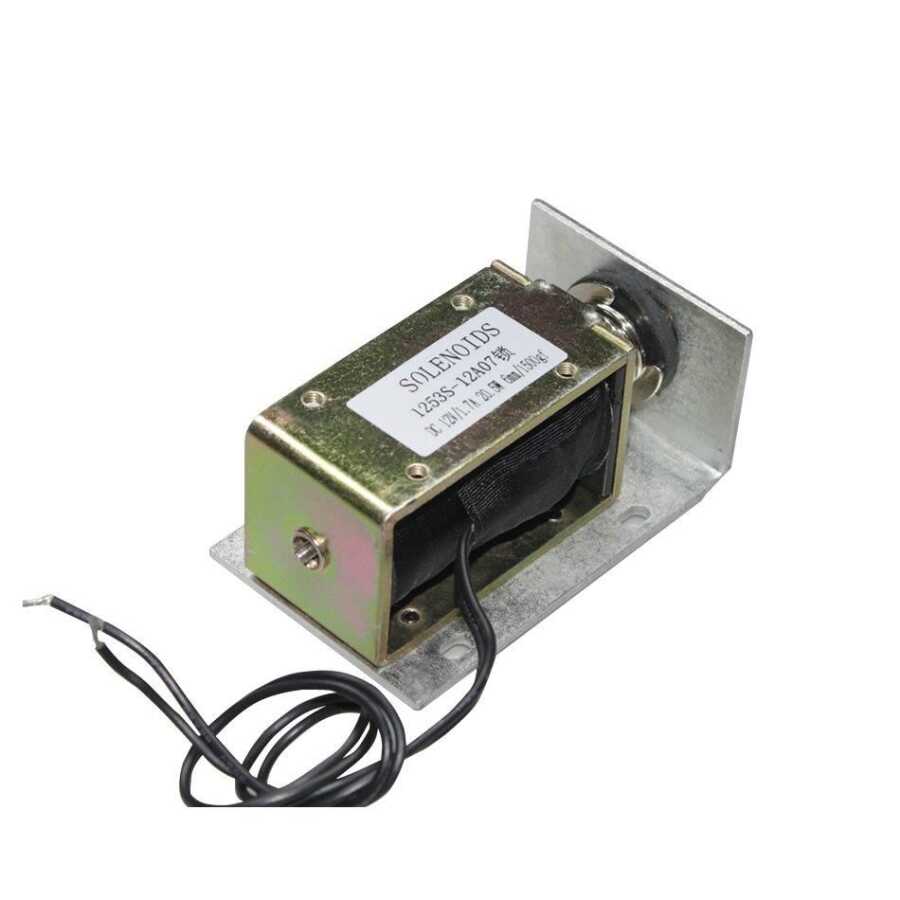

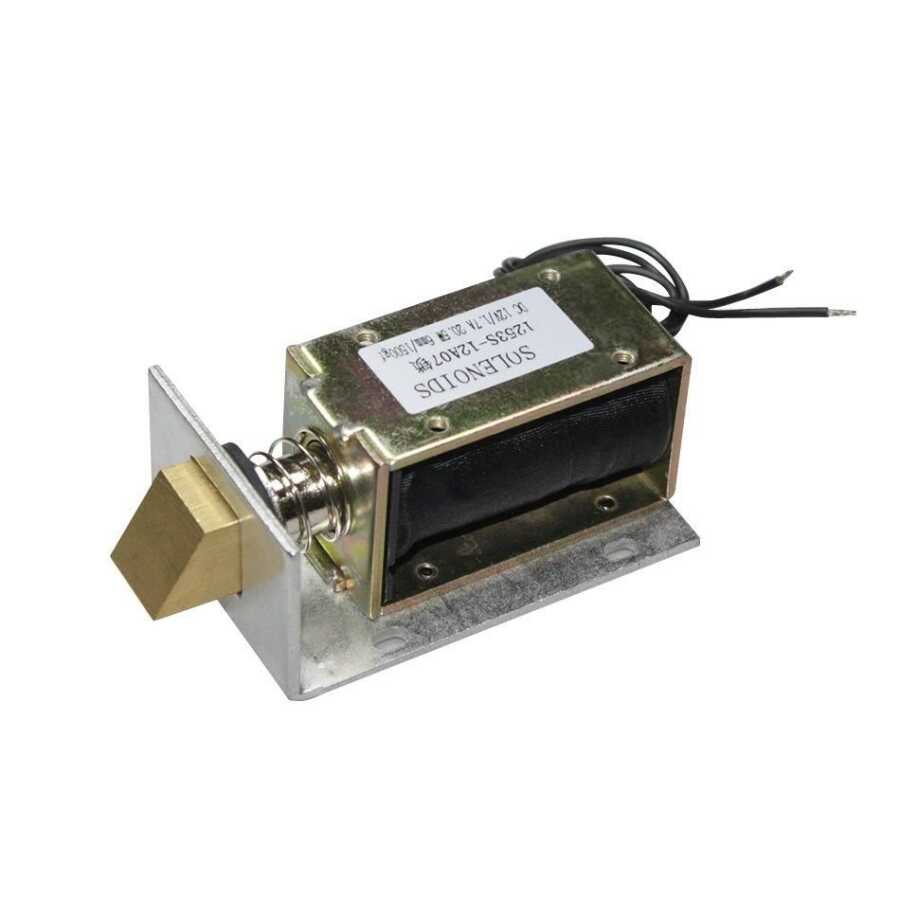

12V Door Lock Solenoid Coil 1253S-12A07
It is a solenoid coil with 12v supply value suitable for use in door lock projects and opening and closing operations. When voltage is applied, the lock tab on the product is pulled in. It is released when the voltage is cut off. Tongue length is 12mm and retracts approximately 9mm. The product is shipped with a screw fixing device.
Dimensions:
- Case Dimensions: 54x30x27mm
- Length: 96mm
- Stroke Length: 10mm
- Fixing Apparatus Dimensions: 68x42mm
Technical Specifications:
- Operating Voltage: DC 12V
- Operating Current: 1.7 A
- Weight Capacity: 6mm/1500gf
- Power: 20.4W
