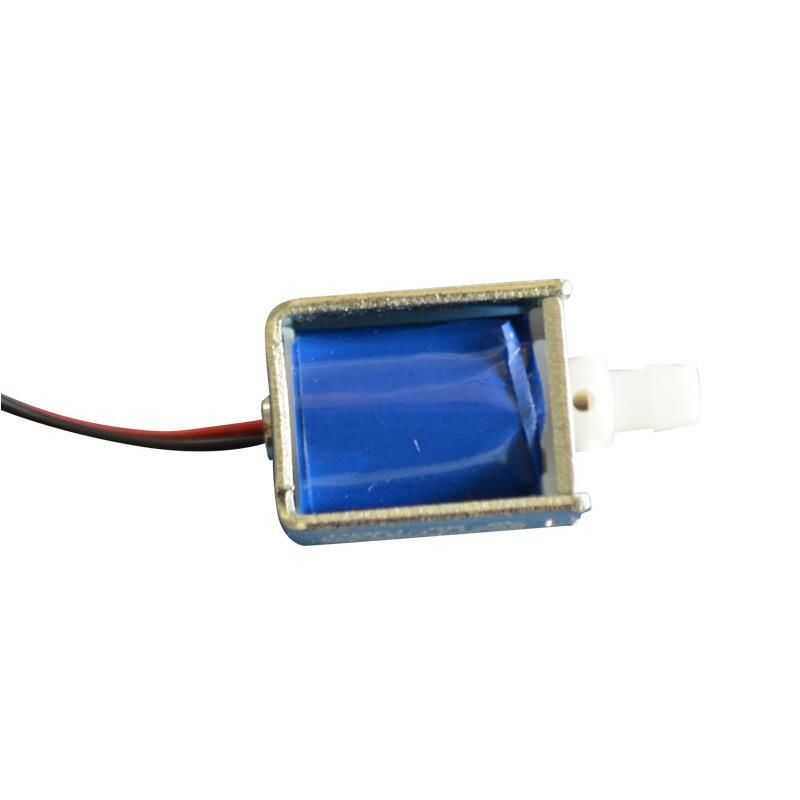

DQF1-6B 5V Solenoid Air Valve One Way NC
DQF-6B Solenoid air valve. It is a normally closed (NC) one-way air permeable product. When voltage is applied to the product, it opens and passes the air. Air comes out through the small holes next to the air-supplied bandage You can use this preferred product in many electronic projects.
Features:
- Supply Voltage: 5V DC
- Current: 250mA
- Power: 1.25W
- Pressure: 0~350mmHg
- Operating Temperature: 5-55ºC
- Normally Closed NC
Technical Drawing:
