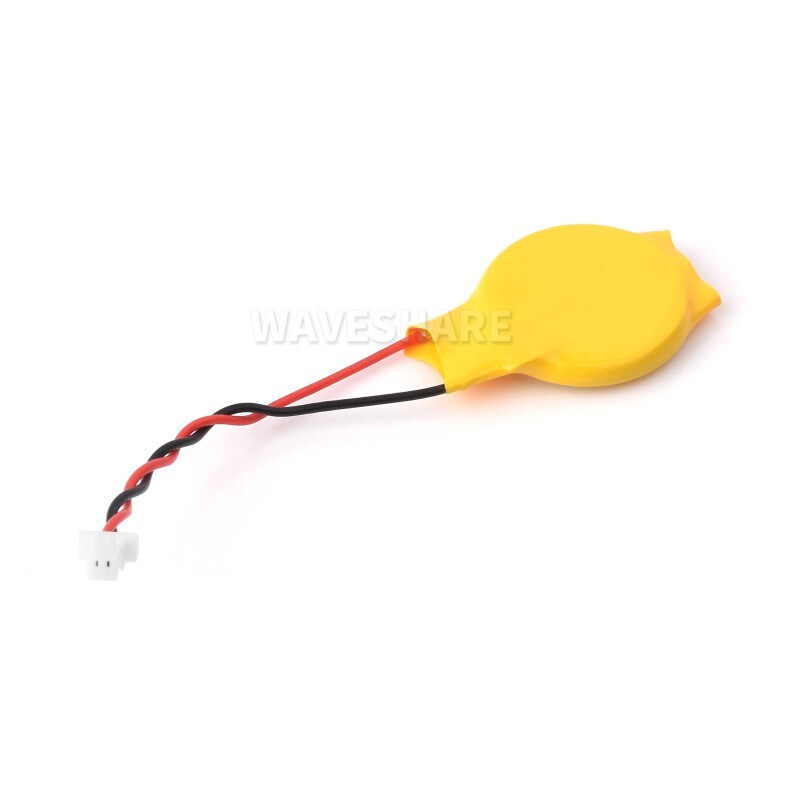

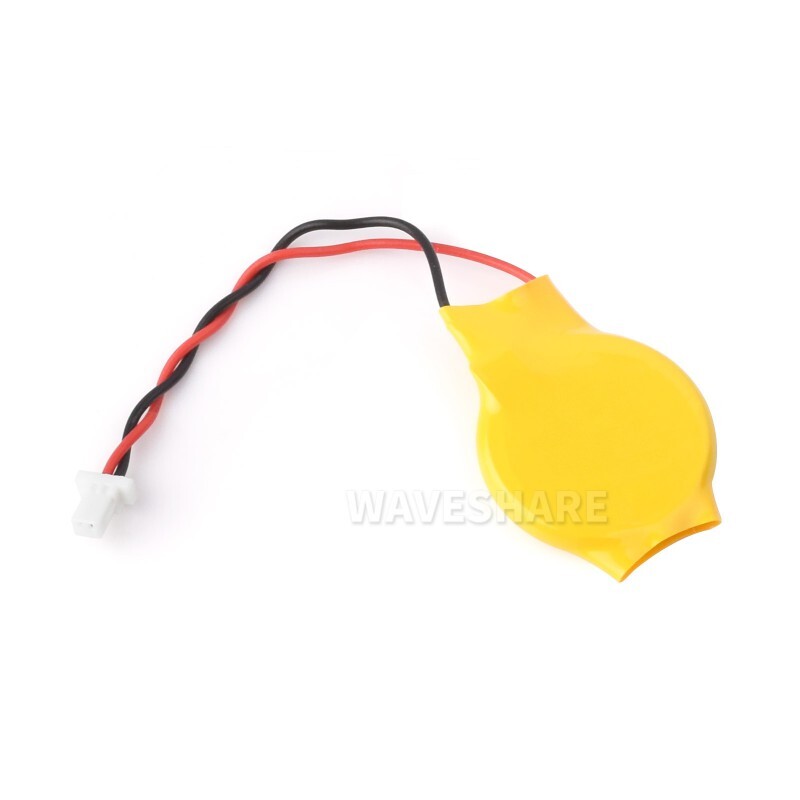

180mAh RTC Battery - Raspberry Pi 5 Compatible
The 180mAh RTC Battery - Raspberry Pi 5 Compatible is a rechargeable battery specifically designed for the Raspberry Pi 5 to provide a reliable real-time clock (RTC) power source. This battery supports the Raspberry Pi 5 board to keep accurate time even when the mains power is off. With a capacity of 180mAh and a nominal voltage of 3V, it provides a long-lasting and stable power source for your Raspberry Pi's RTC function. The battery comes with a 2PIN JST connector and is easy to install. Its compact size and light weight make it easy to integrate into any project. The RTC Battery is an essential component for anyone who wants to use their Raspberry Pi for time-critical applications.
Features
- Specially designed for Raspberry Pi 5.
- 180mAh capacity for long-lasting power supply.
- Supports direct charging from Raspberry Pi 5.
- 2PIN JST connector for easy installation.
- Compact dimensions and light weight.
- 3V nominal voltage. Provides precise time measurement even without mains power.
- Double-sided adhesive tape on the back for easy installation.
Use Cases
- Time-controlled projects and applications with Raspberry Pi 5.
- Systems that need to maintain precise time even after a power outage.
- Projects that require a reliable time base without being constantly connected to the internet.
Technical Specifications
- Manufacturer: Waveshare
- Manufacturer SKU: 27805
- Battery Capacity: 64mAh
- Battery Model: ML-2032
- Nominal Voltage: 3V
- Maximum Voltage: 3.3V
- Lifespan: After 300 charge/discharge cycles, the capacity remains above 80% of the initial level.
- Connector: 2PIN JST
- Cable Length: 50mm
- Dimensions: 20.2mm diameter, 3.3mm thickness
- Weight: 3.3g
