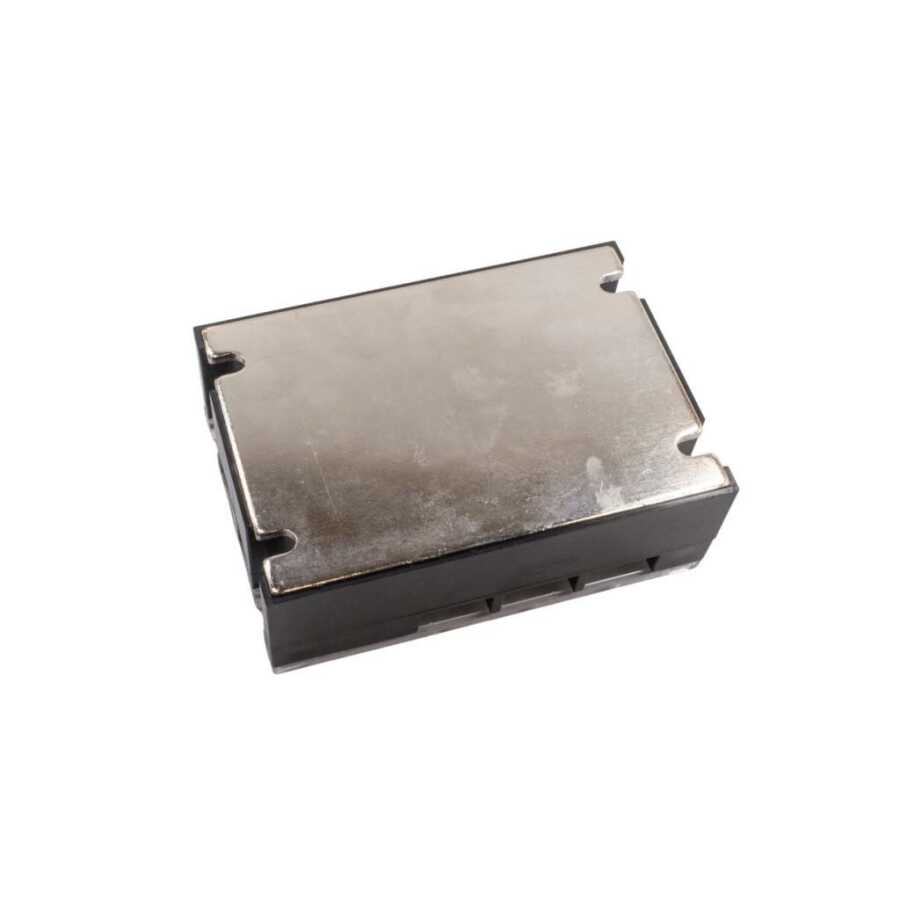

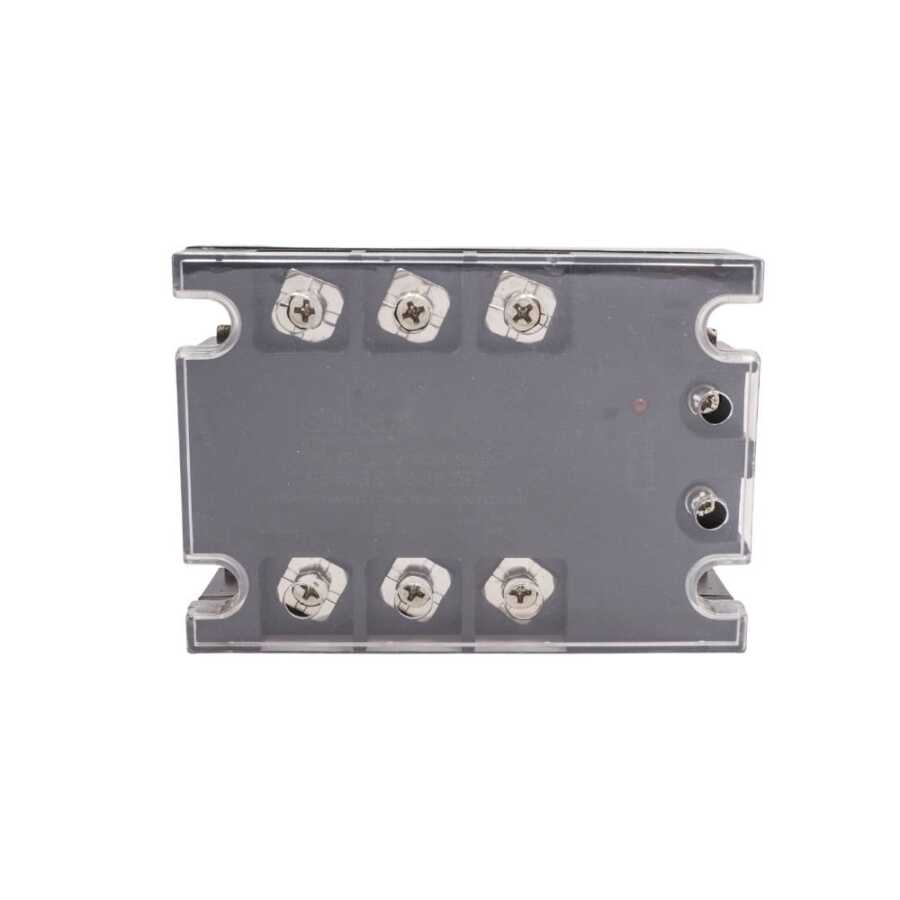

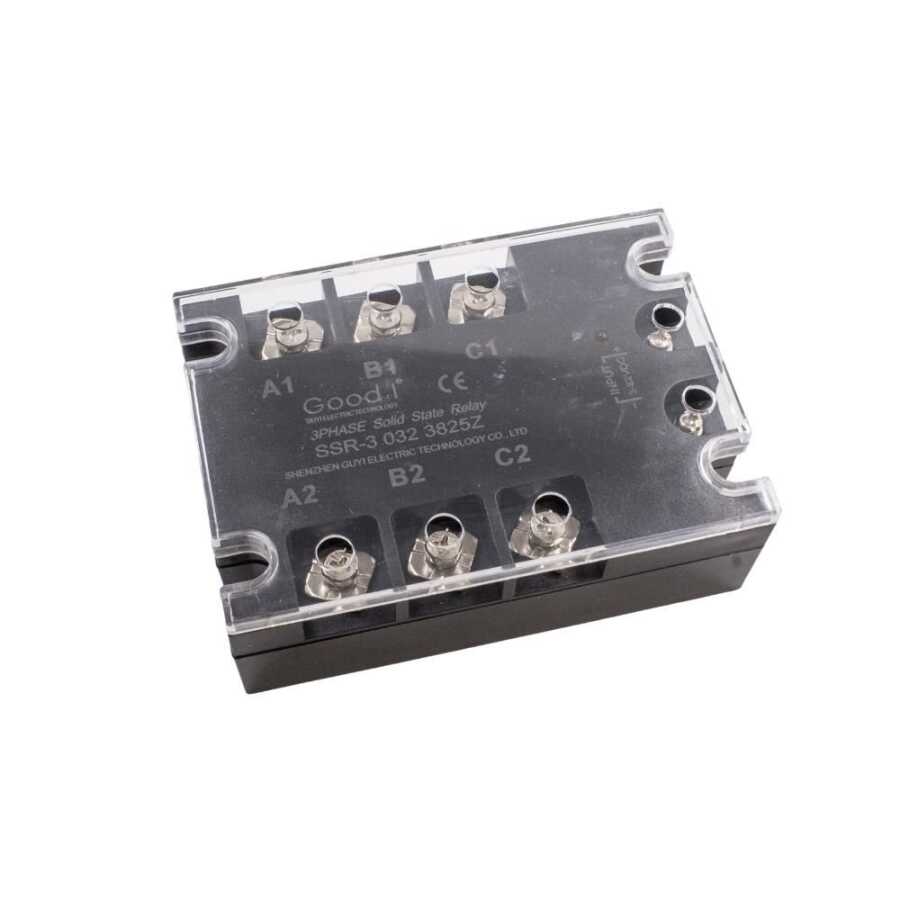

25DA 3 Phase 25A Solid State Relay SSR
25DA 3 Phase 25A Solid State Relay SSR. Solid state relays work like classical relays or contactors where they are used. Since they consist of a semiconductor circuit, they are longer lasting and more durable than other products with mechanical contact output.
3 Phase Solid State Relay This product is triggered by DC 3-32 volt supply. It can switch AC 24-480V electricity. It is also compatible with programming cards such as Arduino and Raspberry Pi.
Specifications:
- Model: 25DA
- Control Mode: DC-AC
- 3 Phase
- Load Voltage: 24-480VAC
- Load Current: 25A
- Control Voltage: 3-32VDC
- Operating Indicator: LED
- Trigger Current: Max. 20.0 mA
- Leakage Current: Max. 8 mA
- Response Time: Max. 10 ms (60 Hz)
- Insulation Power: 1000MΩ / 500VDC
- Ambient Conditions: -20°C ~ +75°C
- Dimension: 105x74x33mm
Wiring Diagram
