2X16 RGB LCD Display - I2C Bus

Ratings & Reviews (0)
Comment
Brand: WaveShare
Product Code: EKN.KRK.01.000018
Stokta son 4 ürün
593.12 TL + VAT
VAT Included: 711.74 TL

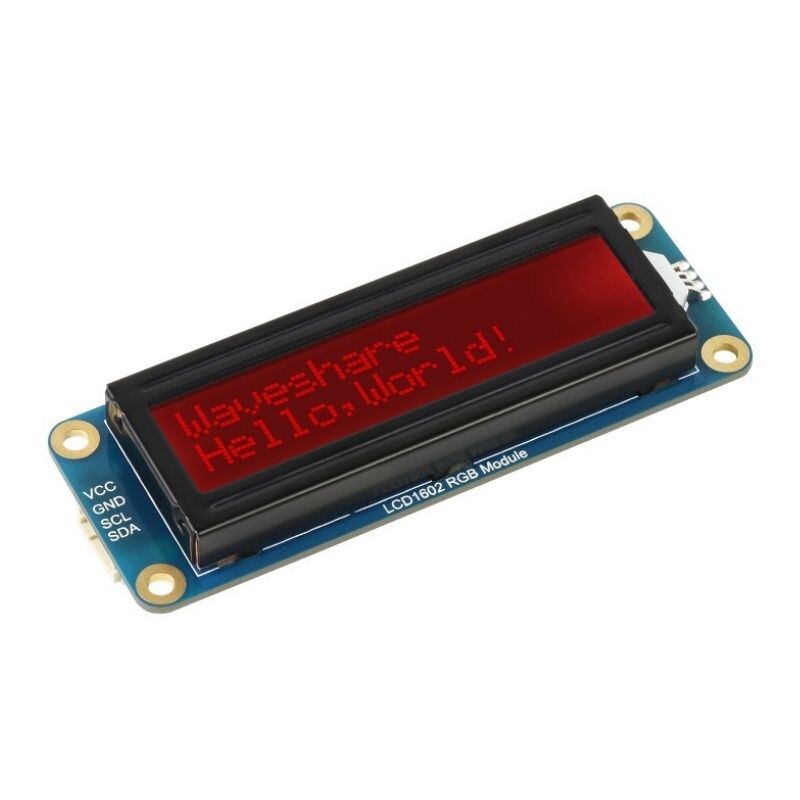

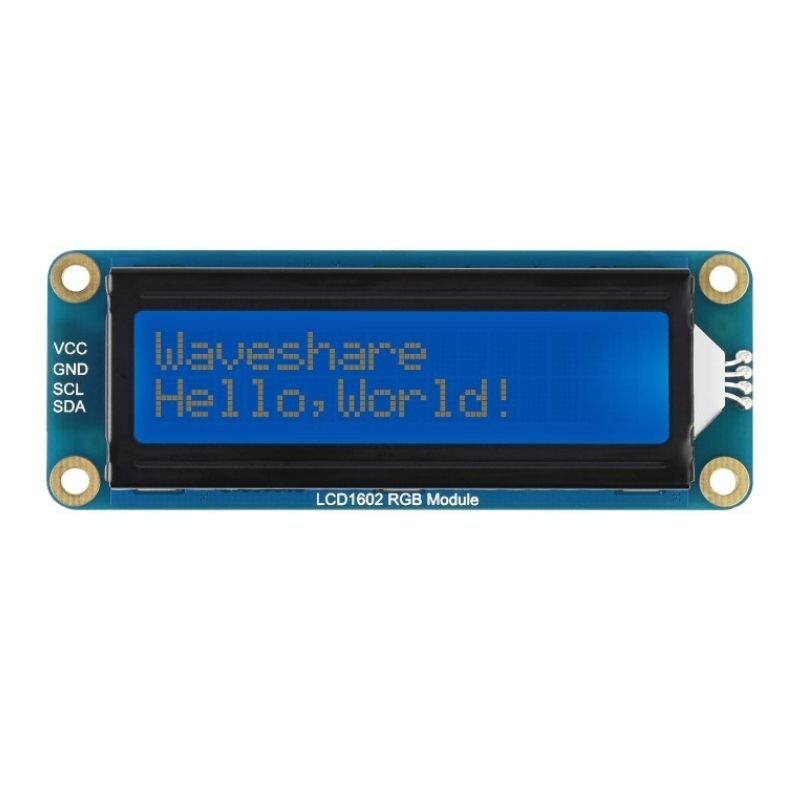

2X16 RGB LCD Display - I2C Bus

2X16 RGB LCD Display - I2C Bus, Adjustable RGB Backlight color, I2C communication, 3.3V/5V compatible.

Supports Raspberry Pi / Pi Pico, Jetson Nano and Arduino.

For detailed information, you can visit wiki page.

Features

  • I2C interface with only two wires can be directly controlled, which is convenient to connect to various control boards.
  • SKU: 19537
  • Character LCD panel includes LCD1602.
  • Adjustable RGB backlight color, theoretically up to 16M (2563) backlight color.
  • Can display up to 16 x 2 characters, support screen scrolling, cursor movement and other functions.

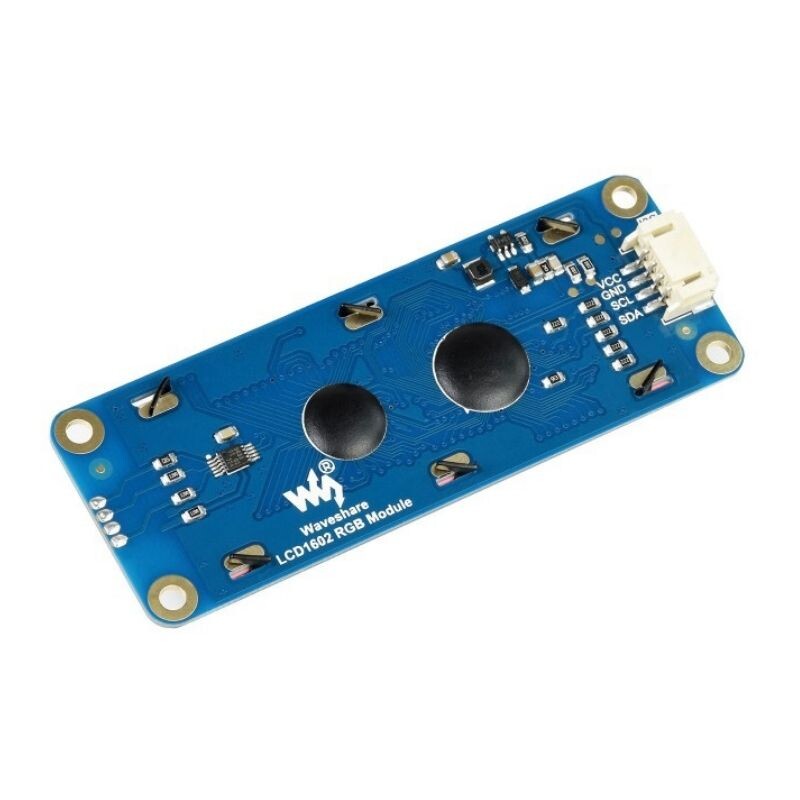

  • Built-in AiP31068L LCD driver chip, PCA9633 RGB control chip.
  • I2C control interface, only two signal pins are needed, saving IO resources.
  • Compatible with 3.3V/5V working voltage.
  • Comes with online development resources and manual (Raspberry Pi/Jetson Nano/Arduino examples).
  • Working voltage: 3.3V/5V
  • Interface: I2C
  • LCD type: character LCD
  • Controller: AiP31068L PCA9633DP2
  • Display: 64.5 x 16.0 mm
  • Size: 87.0 × 32.0 × 13.0 mm
  • Working current: 26 mA (5 V), 13 mA (3.3 V)

LCD1602-RGB-Module-details-13

LCD1602-RGB-Module-details-15

Weight(Kg)
0.05
