50m Laser Distance Measurement Sensor

Ratings & Reviews (0)
Comment
Show More: Ultrasonic Sensor
Brand: Motorobit
Product Code: SNS.CCM.01.000214
Stokta son 1 ürün
2,464.00 TL + VAT
VAT Included: 2,956.80 TL

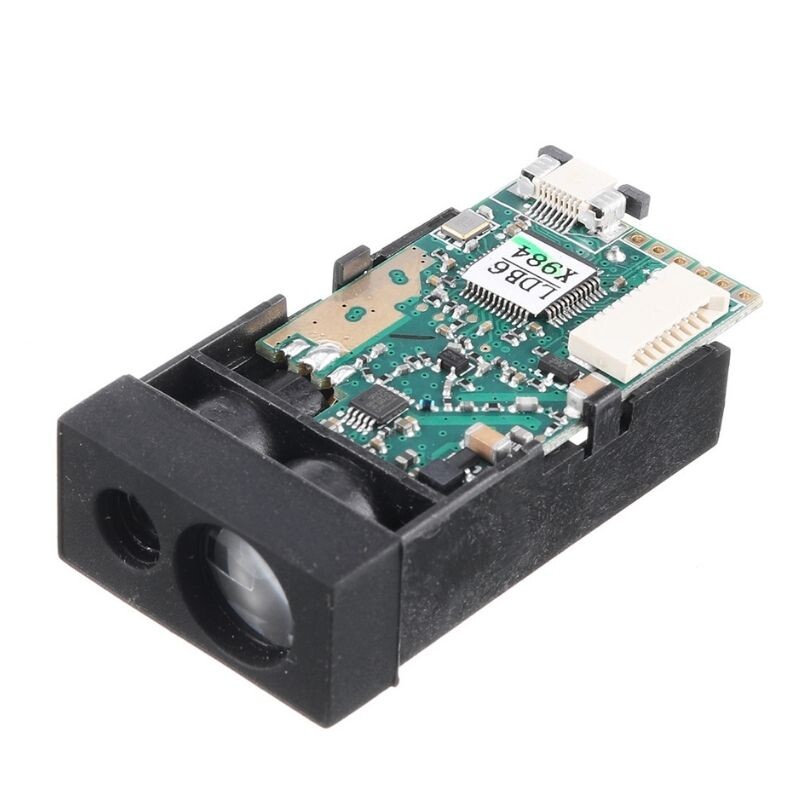

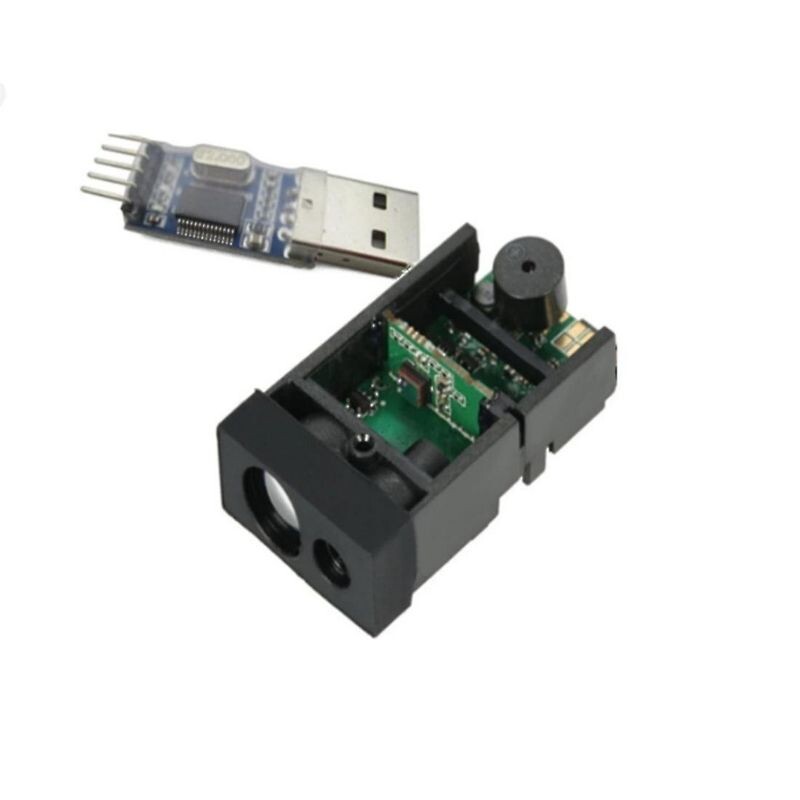

50m Laser Distance Measurement Sensor

50m Laser Distance Measurement Sensor is a laser distance measurement sensor with a range of up to 50m and a sensitivity of 1mm. This module has a wavelength of 635nm. Communication with the module takes place via the UART interface with 19200/8/1/n transmission parameters.

Uart Communication Instructions

  • 'O' - Start Scan
  • 'C' - Scan Complete
  • 'D' - Taking the Measurement
  • 'S' - Module Temperature

Specifications

  • Operating Voltage: 3V
  • Laser Wavelength: 635nm
  • Distance: 0.02 - 50m
  • Measurement Speed: 0.3 -3s
  • Accuracy : ± 1mm
  • Operating Temperature Range: -20 ~ 60°C
  • Dimension: 48x25x12mm

User Manual

Weight(Kg)
0.05
