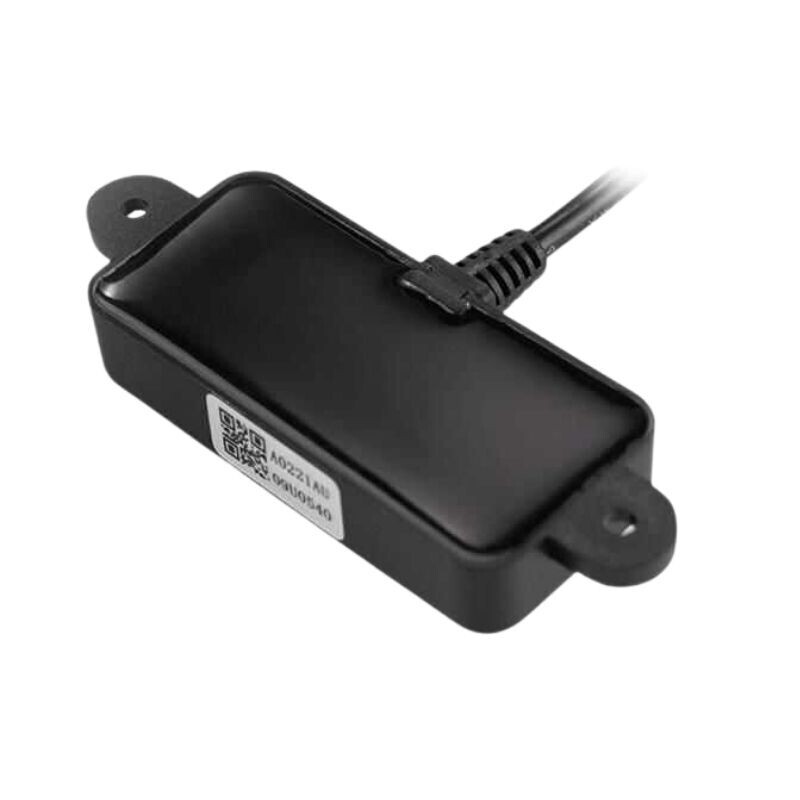

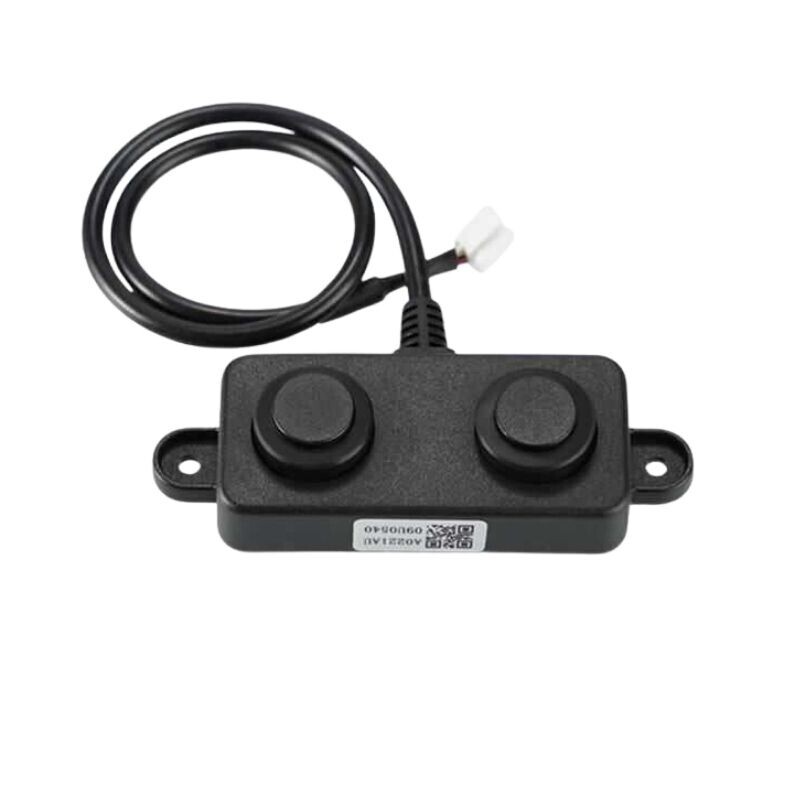

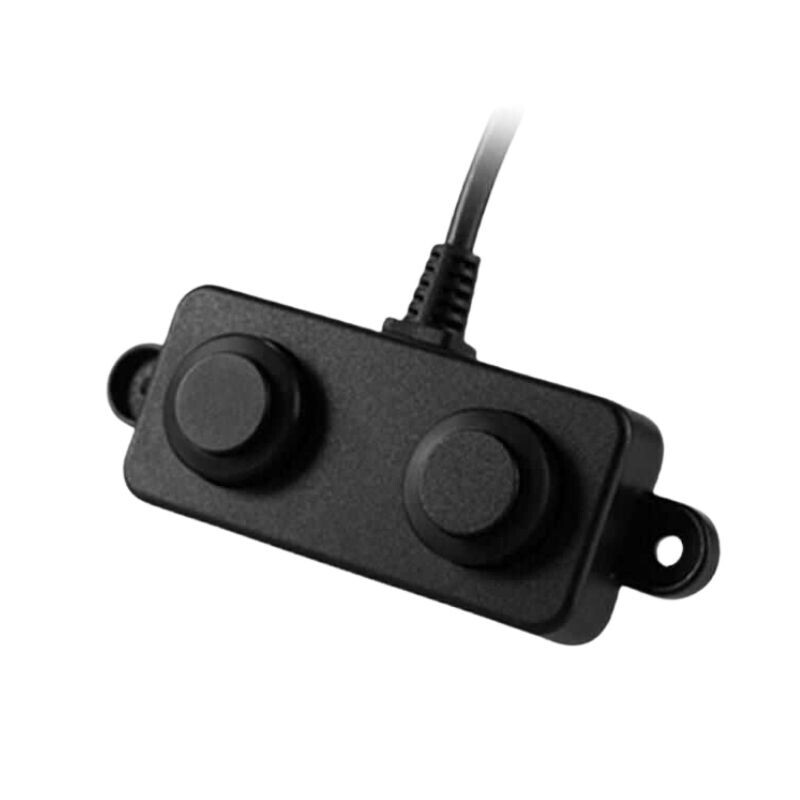

DYP-A02YY DC 5V Ultrasonic Waterproof Distance Sensor - PWM



This ultrasonic distance sensor is a non-contact distance measurement module with stable performance and high range accuracy, with much smaller blind zone, wider detection angle and a certain penetration power compared to other similar sensors. It can detect the distance between the ultrasonic wave and the target. Robot obstacle avoidance, parking management system, automatic control etc. It can be used in areas.



Features:

• Average Current: <8mA
• Operating Voltage: 3.3~5V
• Response Time: 100ms
• Detection Range (Flat object): 3-450cm
• Output: PWM
• Operating Temperature: -15~60℃
• Reference Angle: 60º
• Waterproof Class: IP67
• Measurement accuracy: ±(1 + S*0.3%)
