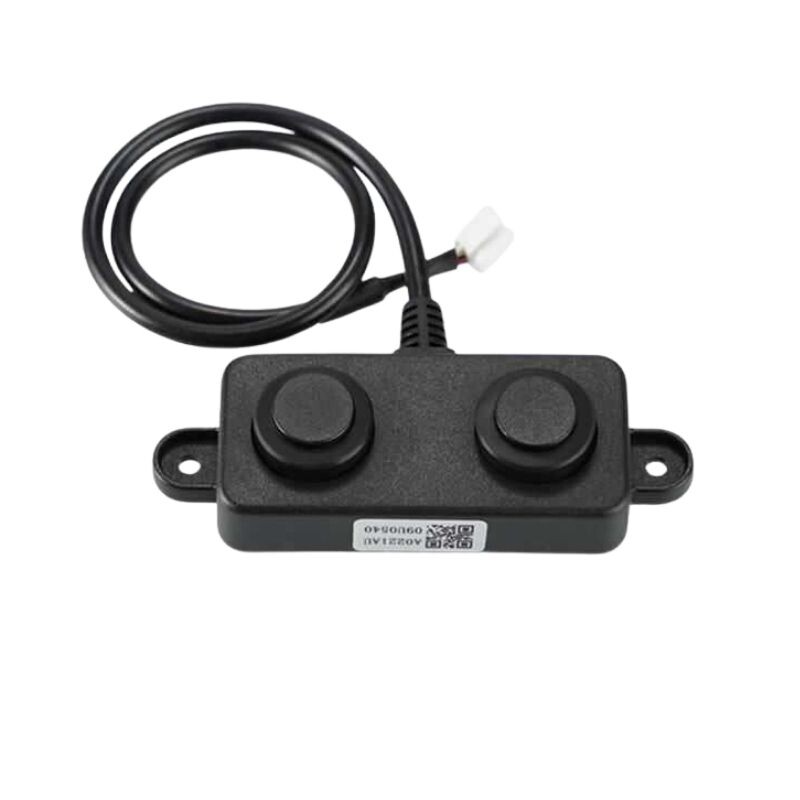

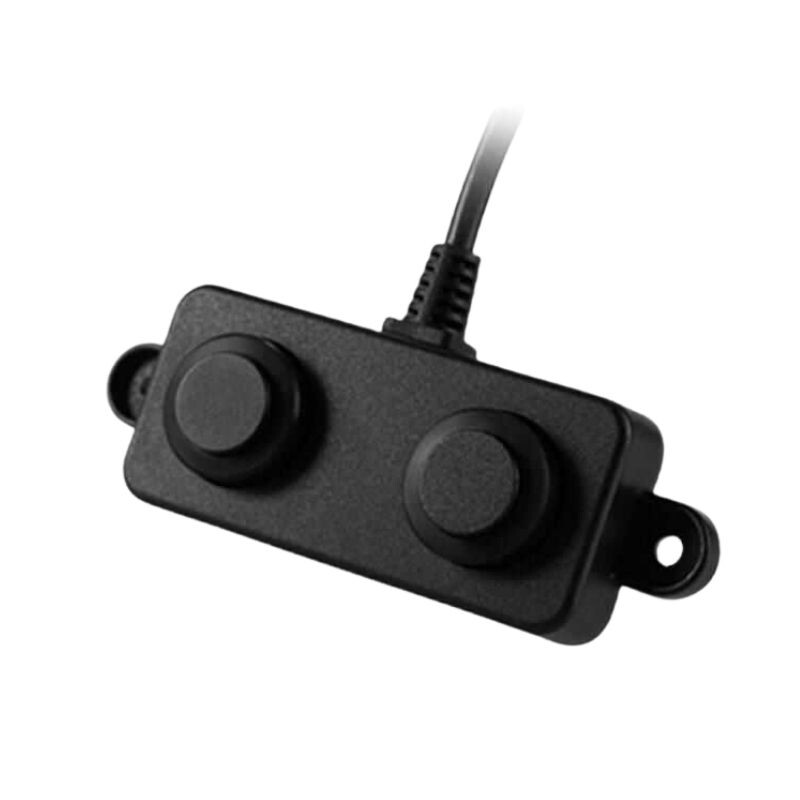

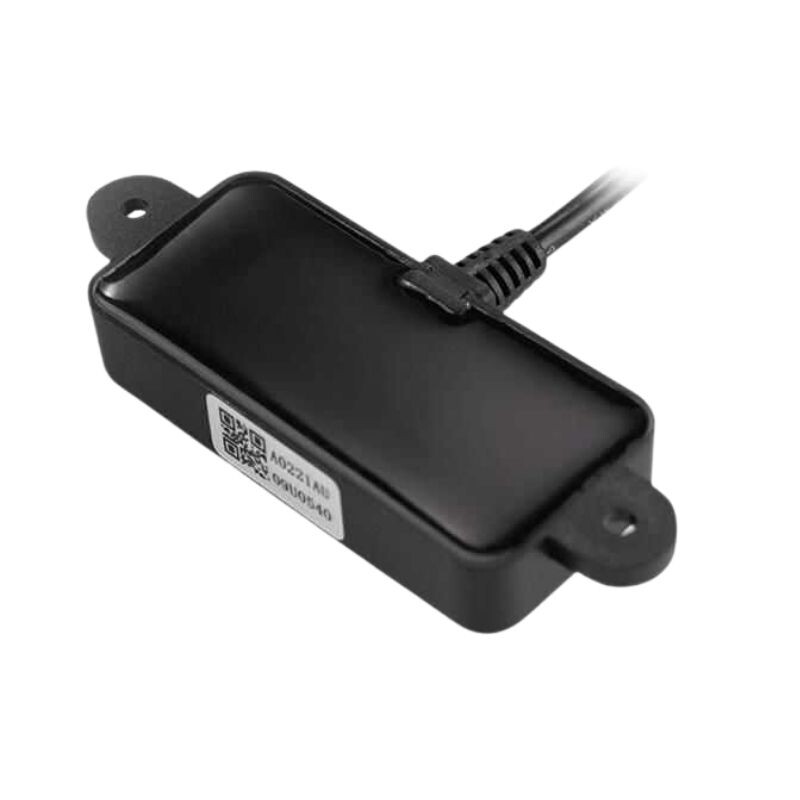

DYP-A02YY DC 5V Ultrasonic Waterproof Distance Sensor



This ultrasonic distance sensor has much smaller blind zone, wider detection angle and specific It is a non-contact distance measurement module with a penetration power, stable performance and high range accuracy. It can detect the distance between the ultrasonic wave and the target. Robot obstacle avoidance, parking management system, automatic control etc. It can be used in areas.

Features:

• Average Current: <8mA
• Operating Voltage: 3.3 ~5V
• Response Time: 100ms
• Detection Range (Flat object): 3-450cm
• Output: URAT
• Operating Temperature: -15~60℃
• Reference Angle: 60º
• Waterproof Class: IP67
• Measurement accuracy: ±(1 + S*0.3%)
