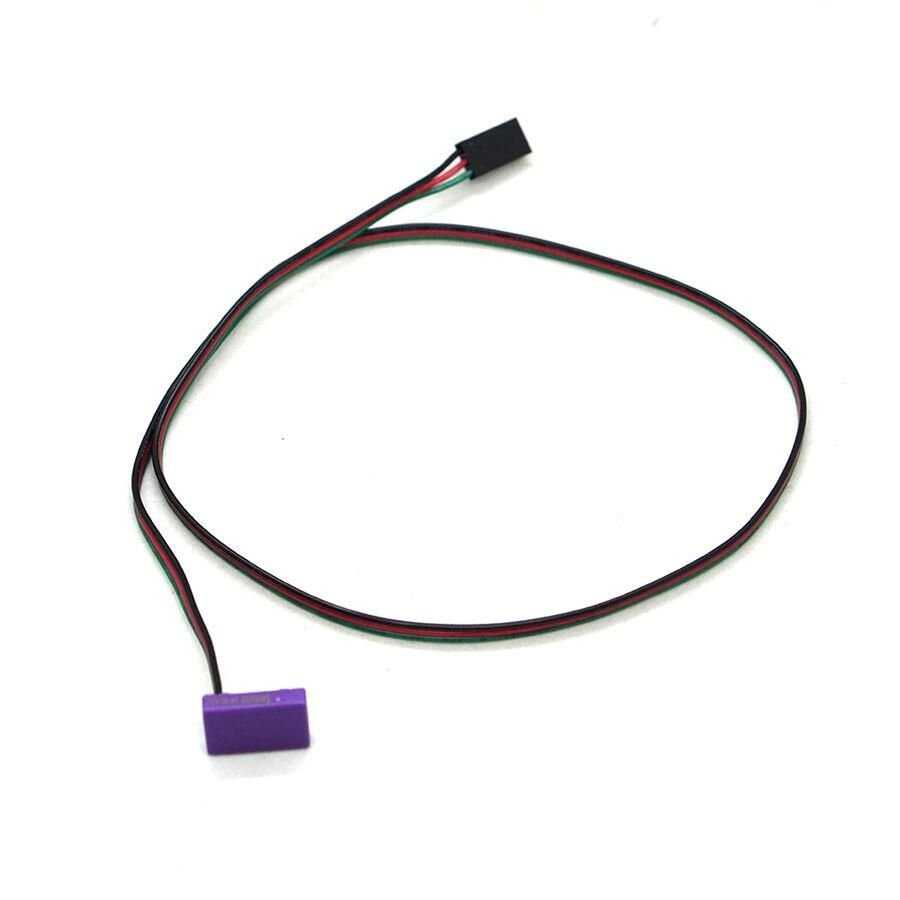

5V Non-Contact Liquid Level Sensor

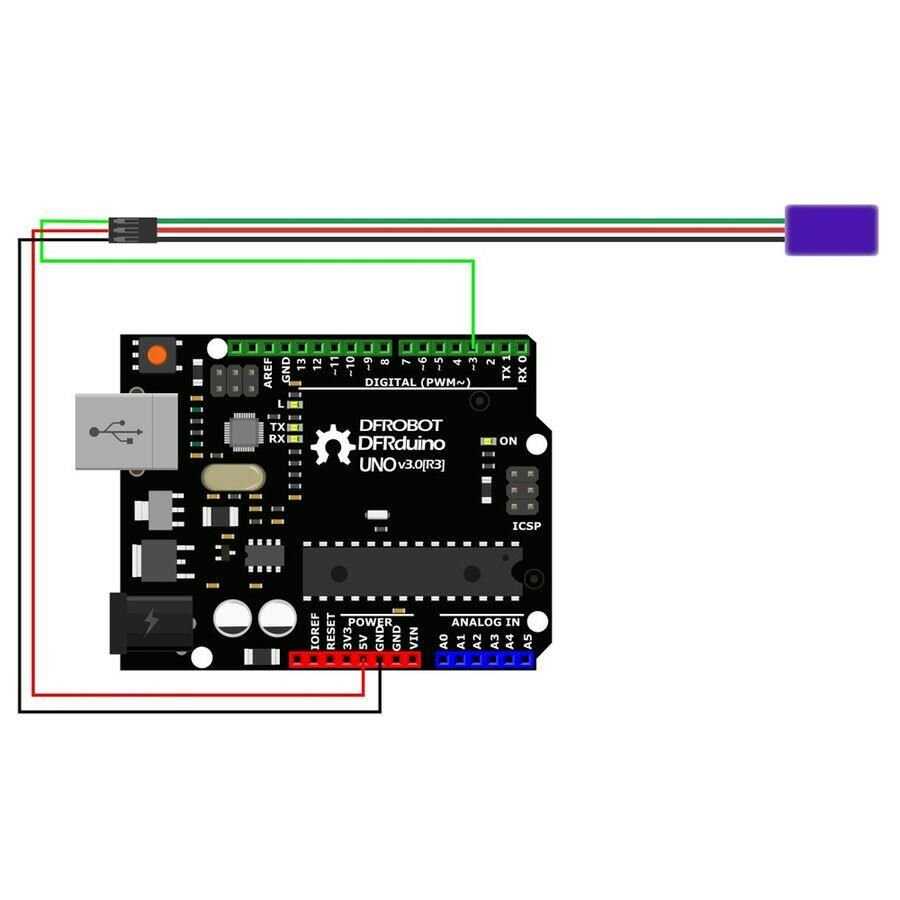

This small 5V non-contact liquid level sensor with Gravity Interface can detect 0-100°C conductive liquid levels in non-metallic containers within a 3 mm detection range. Provided with digital quantity output (low), the sensor is widely used in water tank, beverage machine, water pipe, scientific experiment test tube, etc. It can be used directly on the Arduino UNO for liquid level detection.
With IP67 protection level, the module features an integrated seamless shell and fully sealed water to prevent dust ingress and protect internal electrical components. It uses proof glue encapsulation process. Additionally, the sensor cable with excellent electrical conductivity is flexible, durable, waterproof and oil-proof.
Technical Specifications
- Supply Voltage: 5V
- Detection Distance: 3mm
- Applicable Environment: 0-100°C conductive liquid (can only detect non-metallic containers)
- Output Mode: high/low (low level output)
- Operating Current: ＜5mA
- Operating Temperature: -5~80°C
- Storage Temperature: -20~85°C
- Protection Level: IP67
