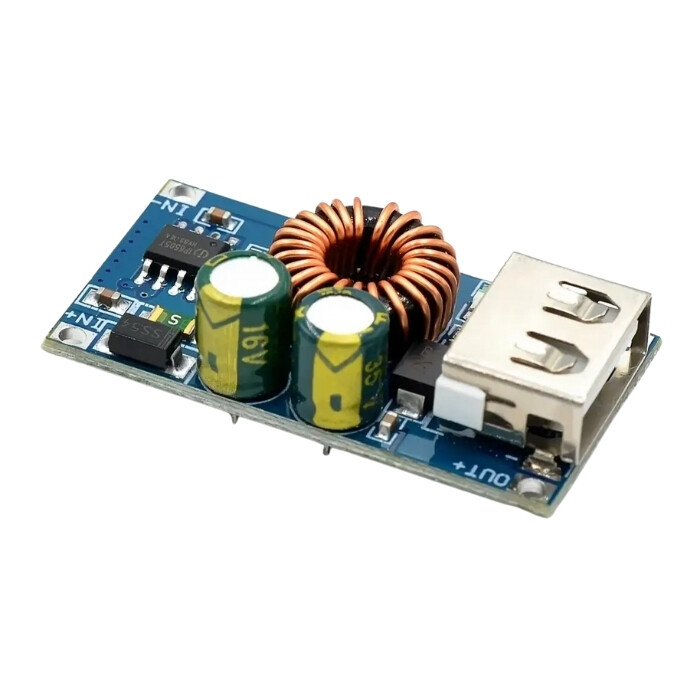

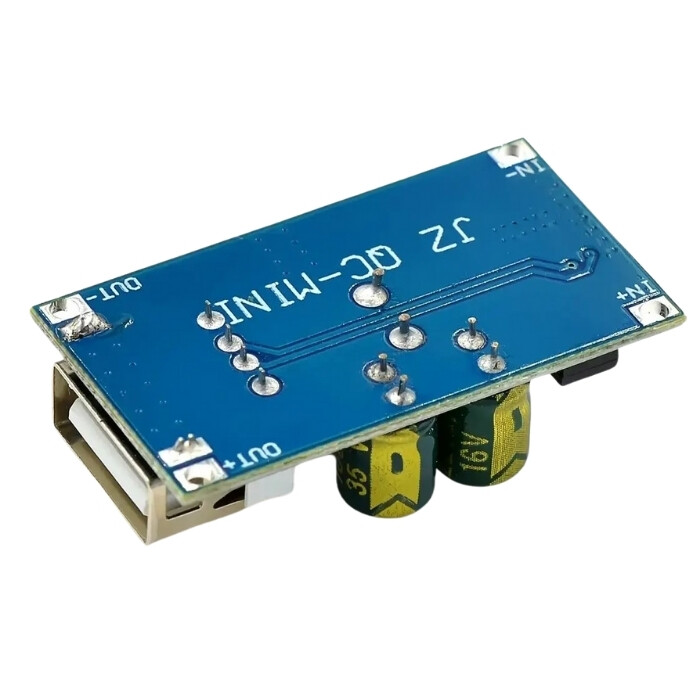

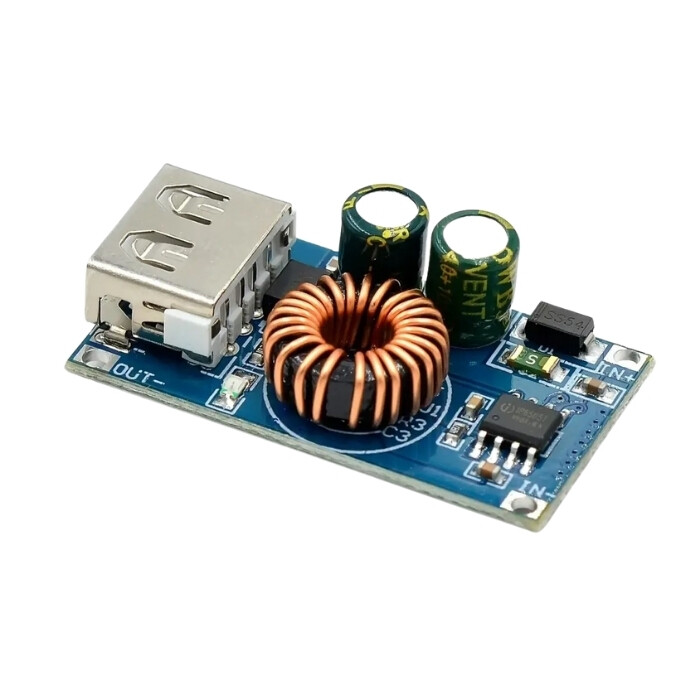

6-32V Q3.0 USB Fast Charging Circuit
6-32V Q3.0 USB Fast Charging Circuit. QC2.0 and QC3.0 It is a fast charging circuit that supports short circuit and overcurrent protection. It automatically adjusts the voltage for fast charging.
Features
- Operating Voltage: DC 6-32V
- Output Voltage: 5 VDC (Automatic adjustment at 12V in fast charging mode.)
- Output Current: 3A
- Output Power: 24W
- Operating Frequency: 140KHz
- Operating Temperature Range: -20 °C ~ 85 °C
- Dimension: 38x20x10mm
- Overheat Protection
- Brief Circuit Protection
- Overcurrent Protection
- Support for Multiple Fast Charging Protocols
