7 Segment Display Module 2 Digit

Product code : EKN.SEG.01.000006
64,50 TL + VAT
77,40 TL
64,50 TL + VAT
77,40 TL
Add to Favorite
10+
RecommendCommentAlarm Price

7 Segment Display Module 2 Digit

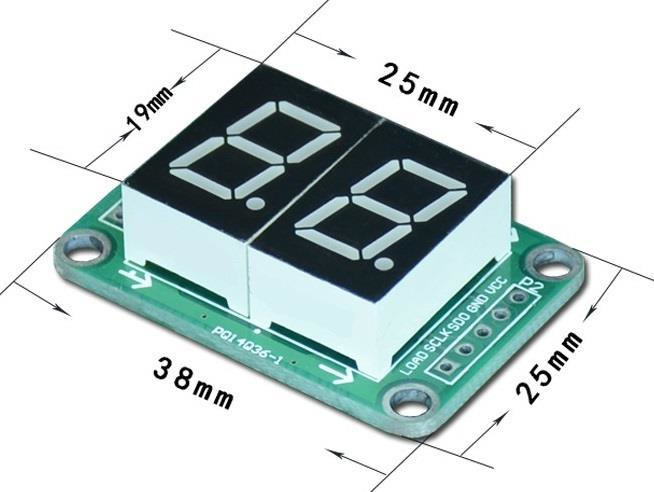

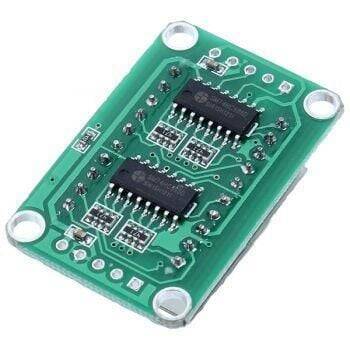

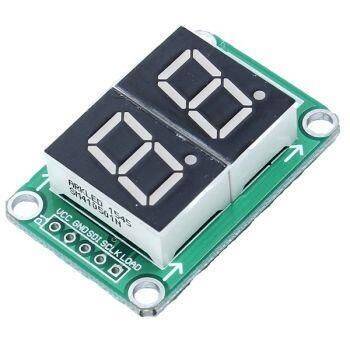

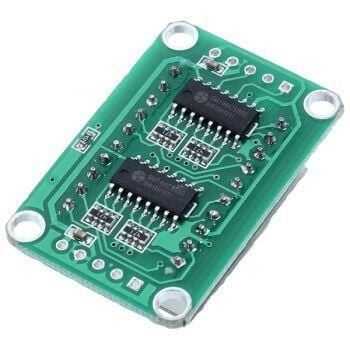

A 7-segment two-digit display, each controlled by a 74HC595 integrated circuit. Each digit has a height of 12.7 mm with bright red illumination. You can use the display with Arduino or a similar microcontroller. The operating voltage is between 3-5VDC.


Specifications:

  • Input Voltage: 3 - 5VDC
  • Operating Current: 50mA
  • Interface: Digital
  • Color: Red
  • Digit Height: 12.7mm
  • Driver chip: 74HC595


Connection:

  • VCC +
  • GND -
  • SDI data
  • Shift clock SCLK
  • Latch LOAD
