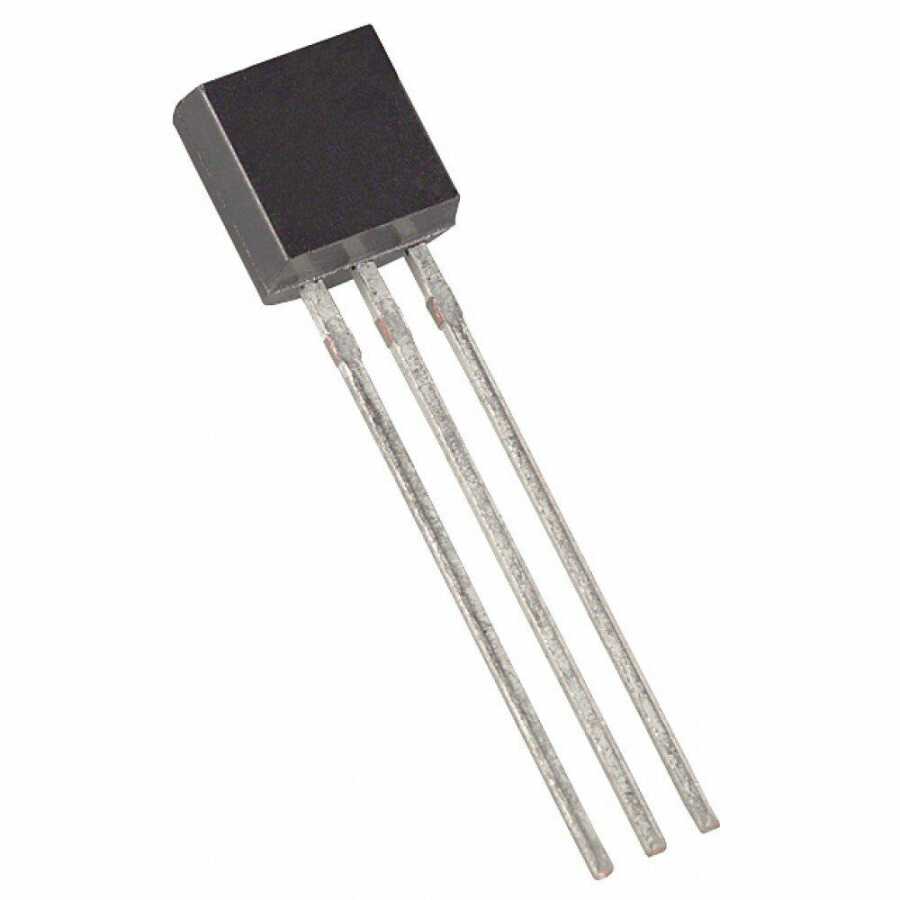

78L09 Voltage Regulator - TO92
The LM78LXX series of three-terminal positive regulators are available in a variety of fixed output voltages, making them useful in a wide variety of applications. These regulators can provide local regulation on the board, eliminating the distribution issues associated with single-point regulation.
Available voltages allow the LM78LXX to be used in logic systems, instrumentation, HiFi and other solid-state electronics. It allows use in devices.
Usage Areas
-
Circuits requiring constant 9v supply
-
Protection for devices with specific voltage sensitivity
-
DIY projects requiring specific voltage from an existing high/variable voltage source
| Series |
LM78L |
| Output Type |
Solid |
| Output Voltage |
+9V DC |
| Input Voltage |
15 - 30VDC |
| Current Output |
100mA |
| Package Type |
TO-92 |
