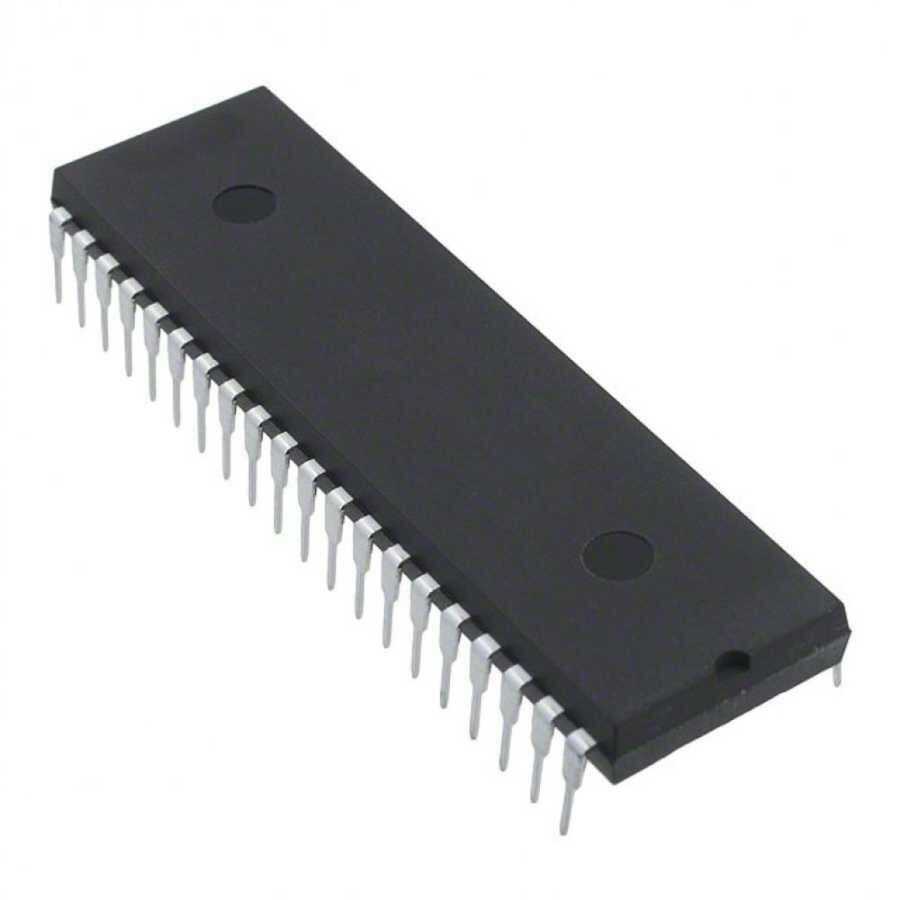

8255 DIP40 Integrated
The 8255 (or i8255) is a Programmable Peripheral Interface (PPI) chip. The 8255 provides 24 parallel input/output lines with a variety of programmable modes of operation. The 8255 has been widely used in many microcomputer/microcontroller systems and all home computers such as the SV-328 and all MSX models.
| Series |
82C55 |
| Bit |
8 |
| Supply Voltage |
4.5-5.5V |
| I/O Count |
24 |
| Protocol |
CMOS |
| Number of Pins |
40 |
| Package Type |
DIP-40 |
