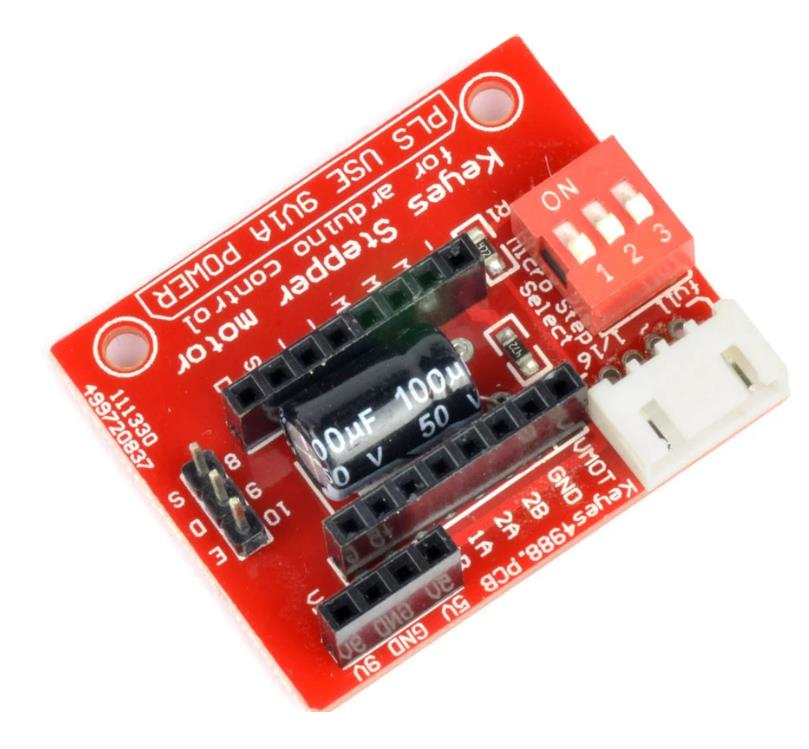

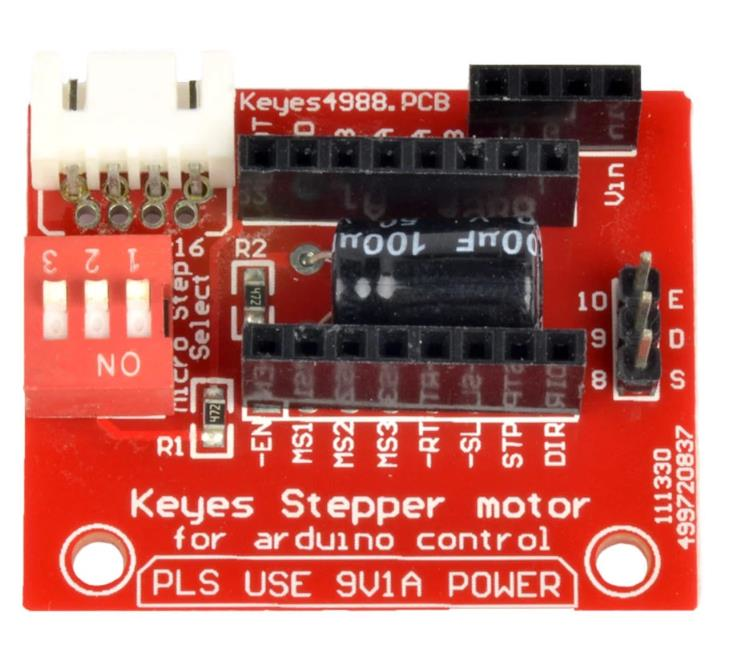

A4988 - DRV8825 Stepper Driver Control Module

This Stepper Motor Control Card ; You can use it by adding A4988 or drv8825 Stepper Driver. When installing your drives, please check the correct orientation.

The driver has adjustable current limiting, over-flux and temperature protection and 5 different micro resolutions (up to 1/16 steps). You can supply it with energy between 8 – 35 V. The product is based on 1A current. You can use up to 2A with extra cooling under extreme conditions.

Female pins on the product should be used for power input, and male pins should be used for motor control. The dip switch on it is used to adjust the step resolutions.

·Simple step and direction control

·Five different step resolutions: Full, Half, Quarter, 1/8, 1/16

·Five different step resolutions: Full, Half, Quarter, 1/8, 1/16

·You can regulate the maximum current rate with a potentiometer.

·Short circuit and overload protection
