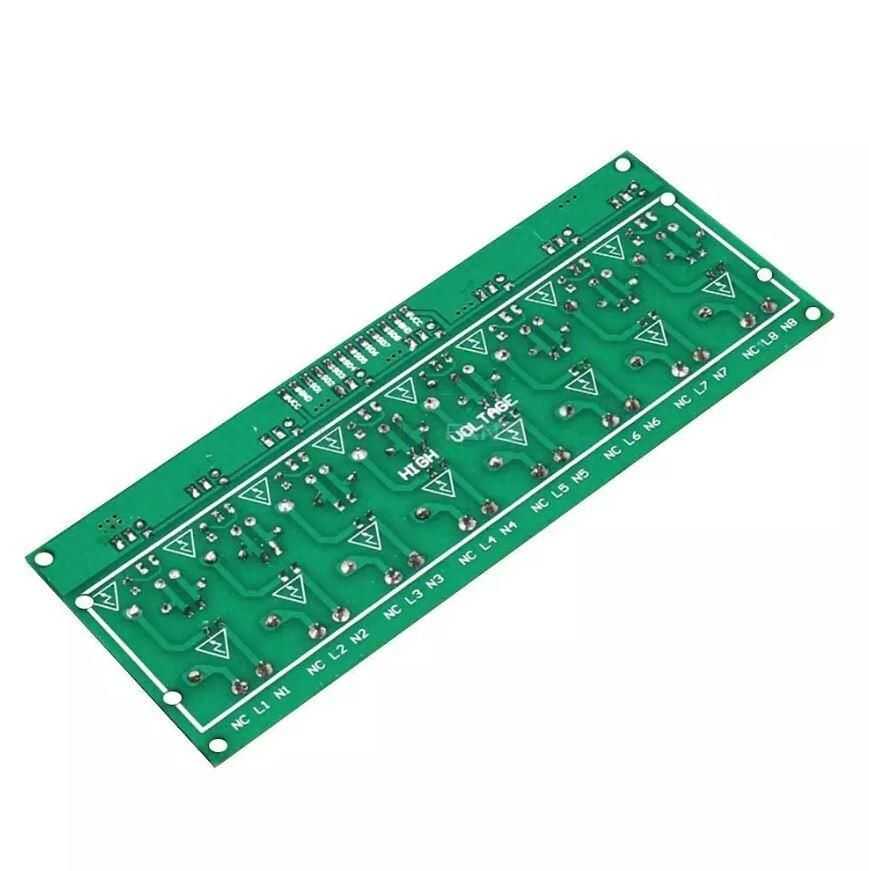

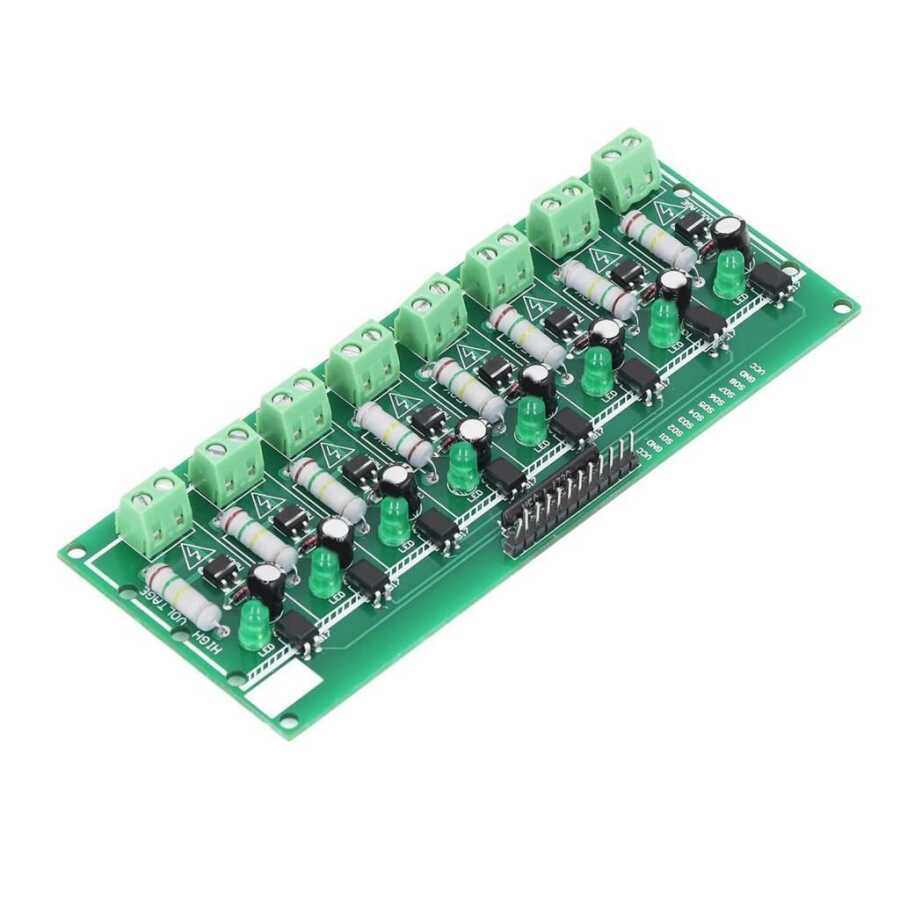

AC 220V 8 Channel Optocoupler Isolation Module
AC 110V 220V 8 Channel Optocoupler Isolation Module. It can detect 8-Channel AC input power supplies and output DC voltage according to the detection results. The output results can be applied to the PLC system and other control equipment.
It can detect whether there is input power. The output status will change when input power is detected.
Attention: Module is ON While in this state, the board solder points or any components must not come into contact with any device metal or Person due to high AC voltage flow.
Technical Specifications
- Input Voltage: AC 110V~220V
- Load Input Voltage: DC 3V~5V
- Output type:PNP(High level) signal output
- Output current:100mA~300mA
- Operating Temperature: -20 ℃ ~ 85 ℃
- Operating Humidity:10%~85% RH
- Dimension: 138*56*19mm
Areas of Use
- AC power detection
- PLC control system
- Device alarm
