Acoms Technisport V - 2 Channel Remote Control Set - Band 5 (27.195 MHz / Green)



Acoms Technisport V is a two channel remote control set. You can use it in many RC vehicle projects and in all vehicle prototypes that move in two dimensions, such as tanks and boats. With the trigger and wheel on it, forward, reverse and speed control of the vehicles can be done very easily. Moreover, you can use this product with Arduino or a similar microcontroller  By using it together, you can use your own project vehicle, connect it to ESC, and control the direction with the steering servo. This product has a 27MHz crystal set. In cases where you will use more than one remote control, remote control options with different band options should be preferred to avoid interference with product signals. You can see other remotes by clicking here .

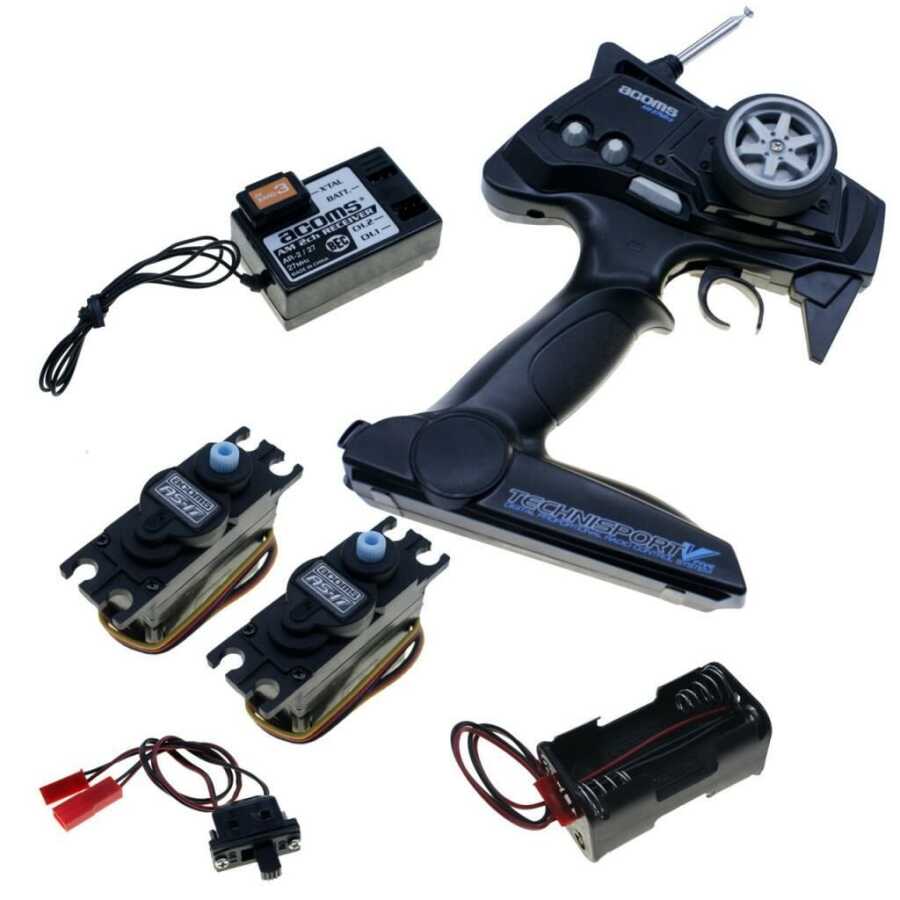

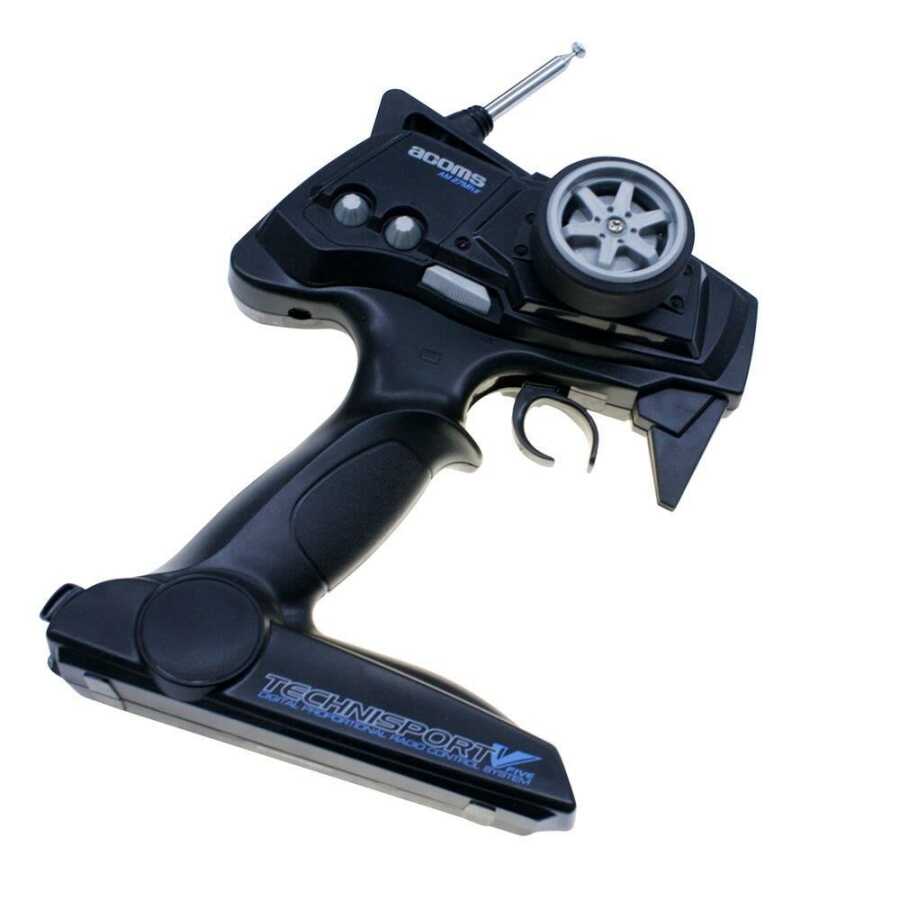

•2-channel Acoms Technisport V 27MHz remote control

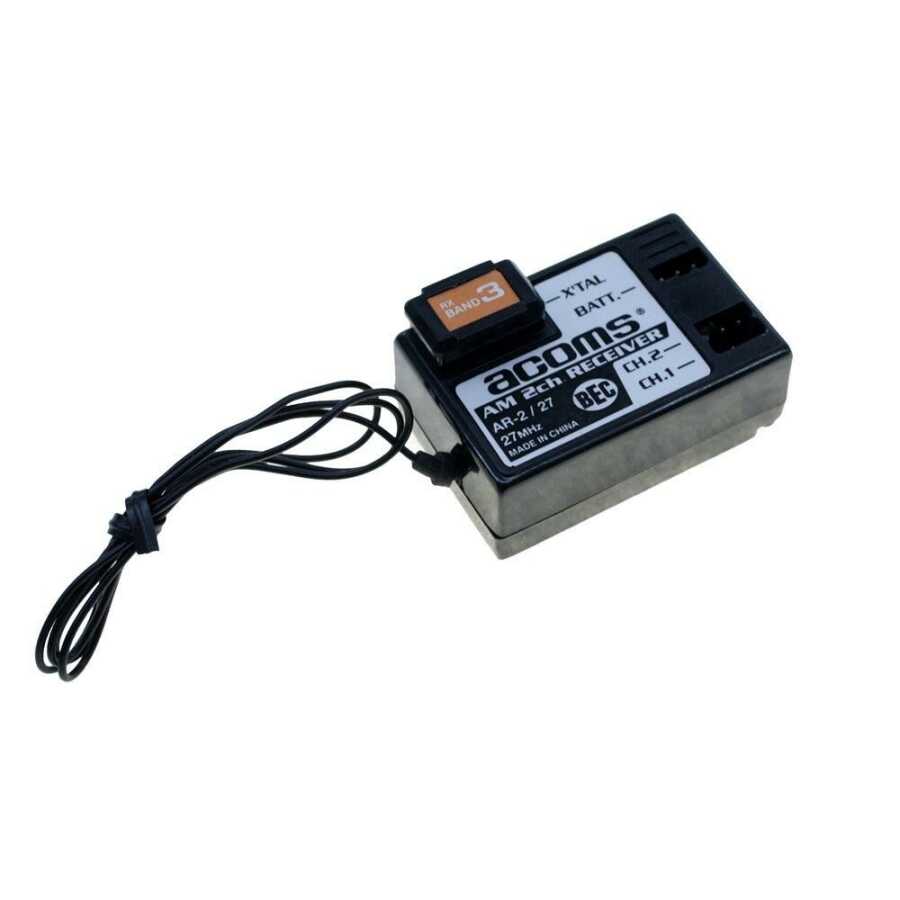

•2-channel Acoms AR-2 27MHz receiver

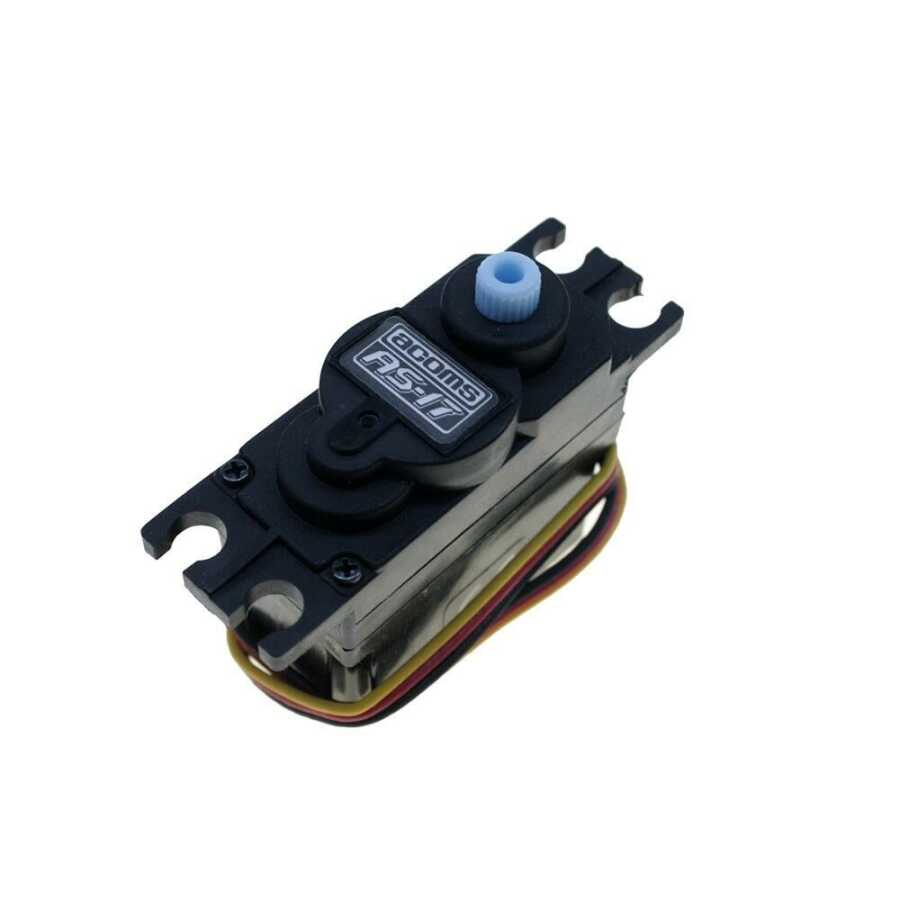

•2 AS-17 servo motors

•Servo heads and mounting screws

•4xAA battery holder

•On/off for receiver power switch

•User manual





•27MHz AM communication, 100mW output power

•Changeable frequency crystal

•Adjustable trim (midpoint) setting for throttle and steering channels

•For steering channel D/R (sensitivity) adjustment

•Reverse feature for throttle and steering channels

•Operating voltage: 12VDC (8xAA batteries, not included in the product)

Acoms AR-2 Receiver Specifications:
