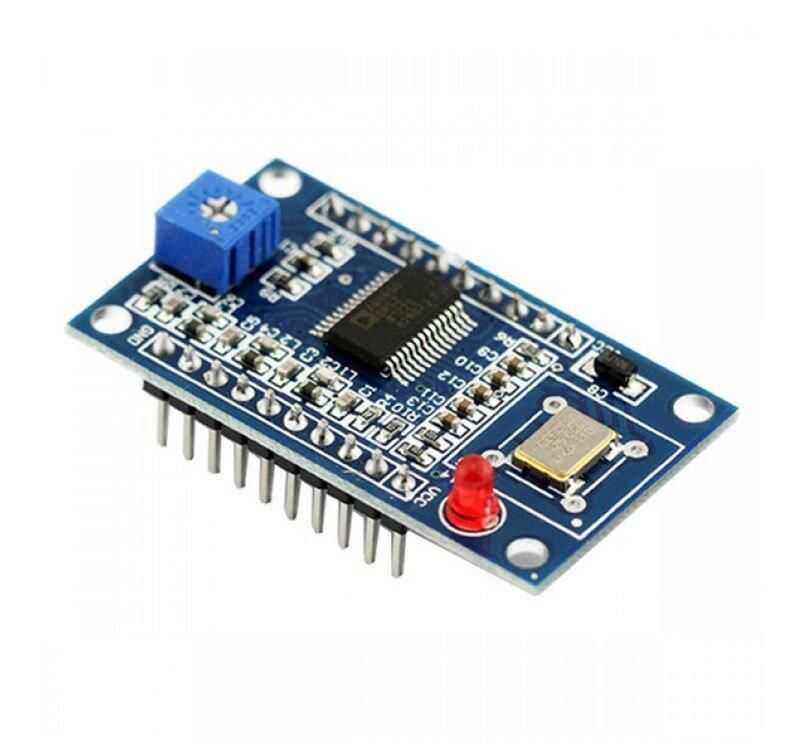

AD9850 DDS Signal Generator 0-40MHz

The module can output sine wave, square wave, two sine waves and two square waves. At 20-30MHz, frequency harmonics, the waveform will be less and cleaner. 70MHz low pass filter , the better the waveform SN. Create the DA criteria pin (PIN12) ends, which is suitable for adjusting the application to make the amplitude of the output waveform The comparator reference input voltage produced by the variable resistor can be a different duty cycle square wave.

Square Wave: 0-1MHz

AD9851: 0- 70 MHz

Size: Approx. 45x26x17mm
