ADE7758ARWZ SOIC-24 Multi-Function Energy Metering IC
ADE7758 is a high-accuracy 3-phase electrical energy metering IC with serial interface and two pulse outputs .
The ADE7758 includes second-order Σ-Δ ADCs, a digital integrator, reference circuitry, a temperature sensor, and all signal processing required to perform active, reactive, and apparent energy measurement and rms calculations.
DIV>
| Product Code |
ADE7758ARWZ |
| Input Voltage |
4.75V - 5.25V |
| Output Voltage (High / Low) |
4V/0.4V |
| Feed Current |
8mA |
| Active Measurement Bandwidth |
14kHz |
| Number of Pins |

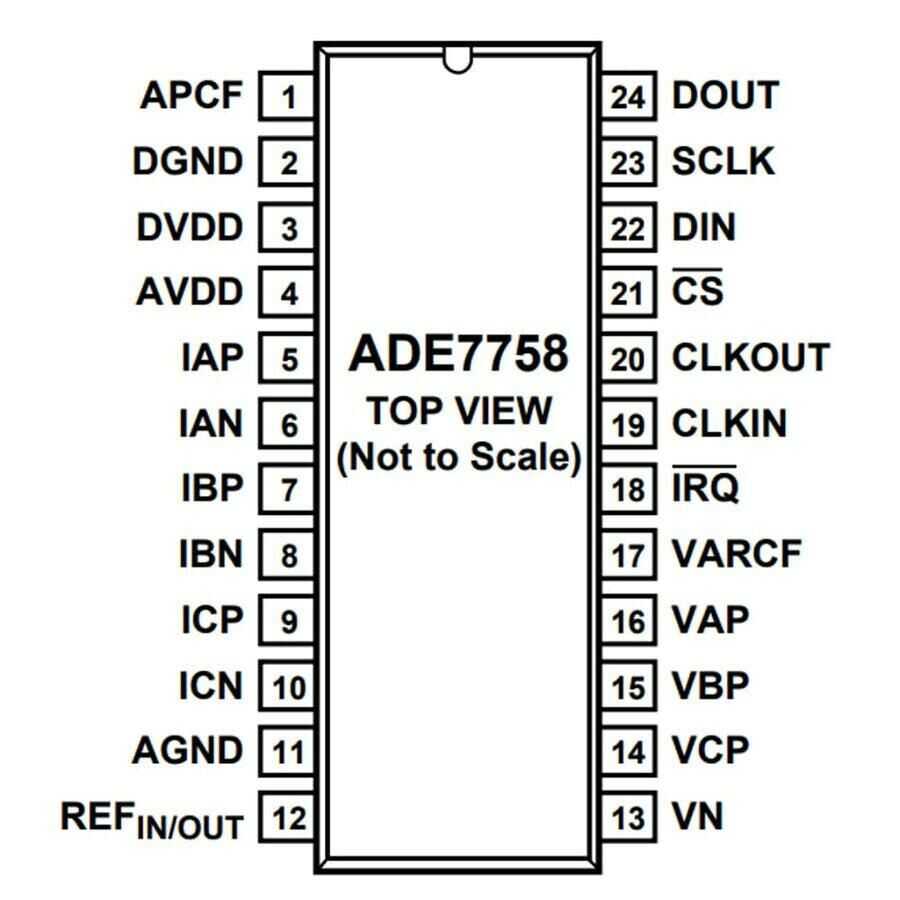

24 Pin |
| Package Type |

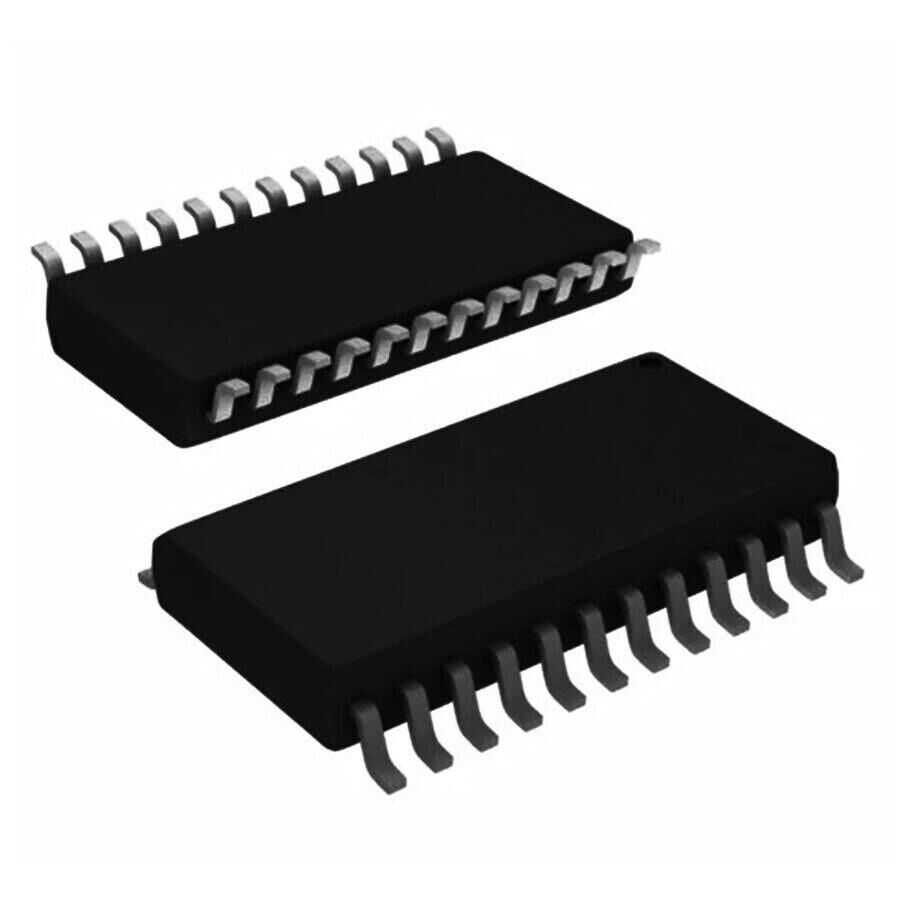

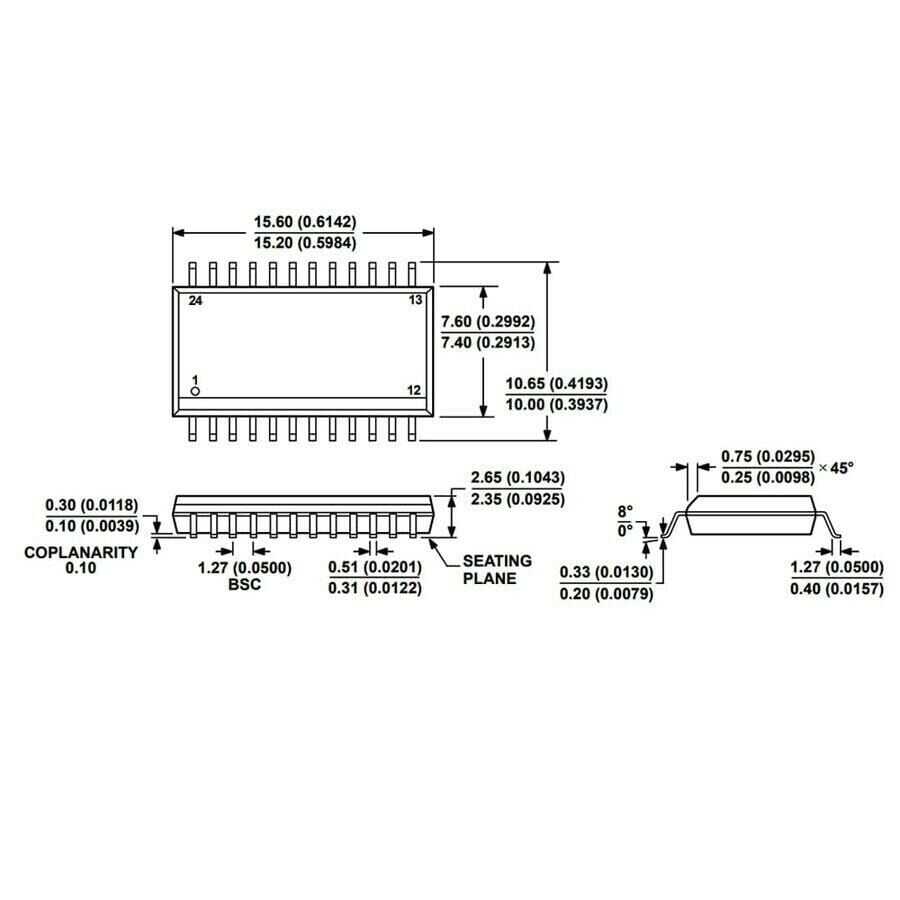

SOIC-24 |
