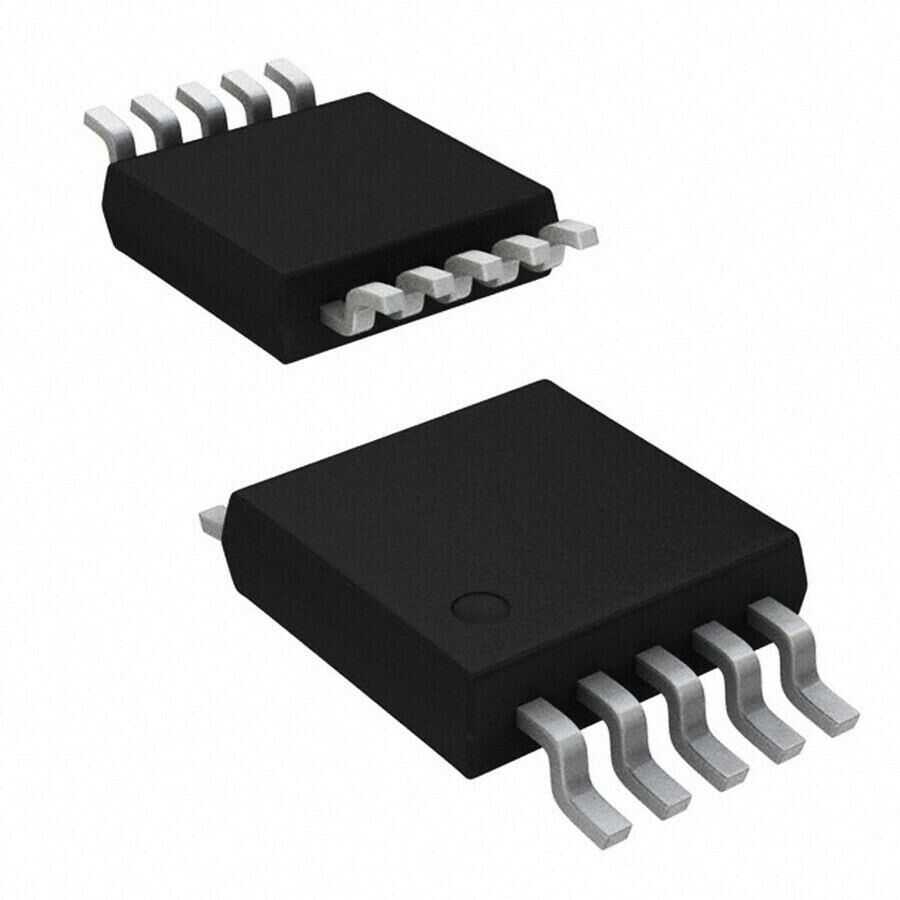

ADG884BRMZ MSOP-10 Smd Switch IC
ADG884 is a low-voltage CMOS device containing two independently selectable single-pole, double-throw (SPDT) switches. This device offers ultra-low resistance of 0.41 Ω over the full temperature range, making the part an ideal solution for applications requiring minimal distortion through the switch. The ADG884 is also capable of carrying large amounts of current, typically 600 mA in 5 V operation.

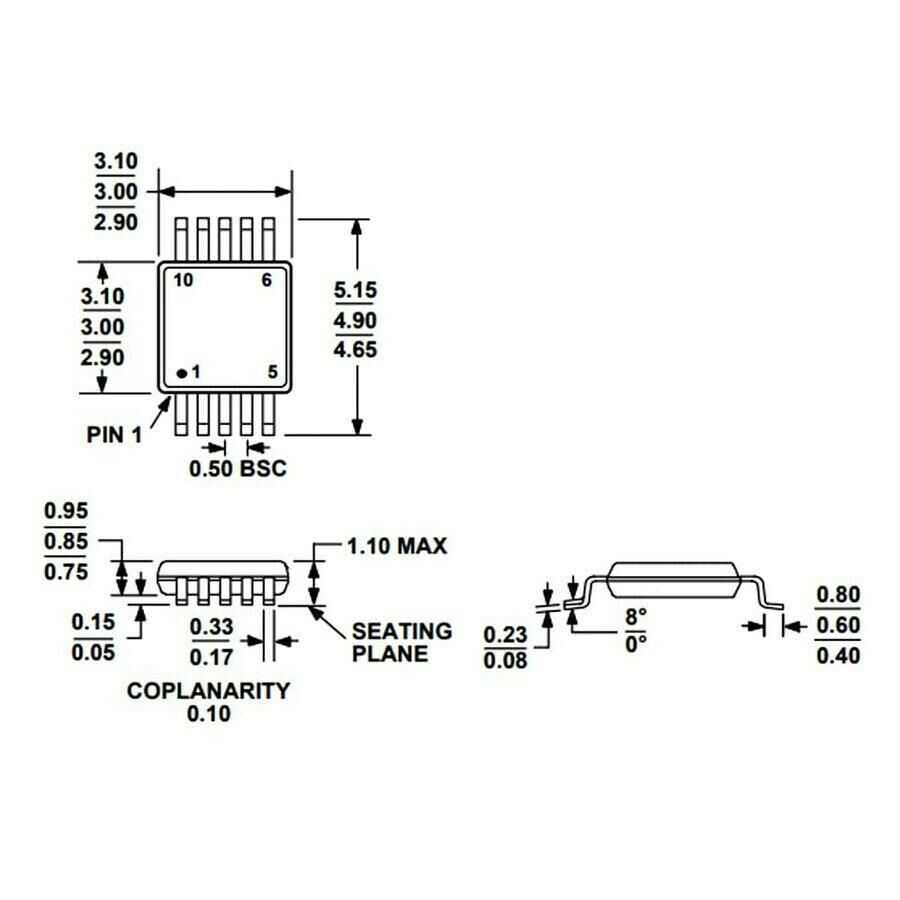

The ADG884 is available in a 10-lead, 2 mm × 1.5 mm WLCSP package, a 10-lead LFCSP_WD package, and a 10-lead MSOP package. . These small packages make the ADG884 the ideal solution for space-constrained applications.
Uses
- Cellular phones
- PDAs
- MP3 players
- Power routing
- Battery-powered systems
- PCMCIA cards
- modems
- Audio and video signal routing
- communication systems
| Input Voltage |
1.8V - 5.5V
|
| Supply Voltage Configuration |
Single Feed |
| Number of Channels |
2 |
| Resistance |
370 mOhm |
| Number of Pins |
10 Pin |
| Package Type |
MSOP10 |
