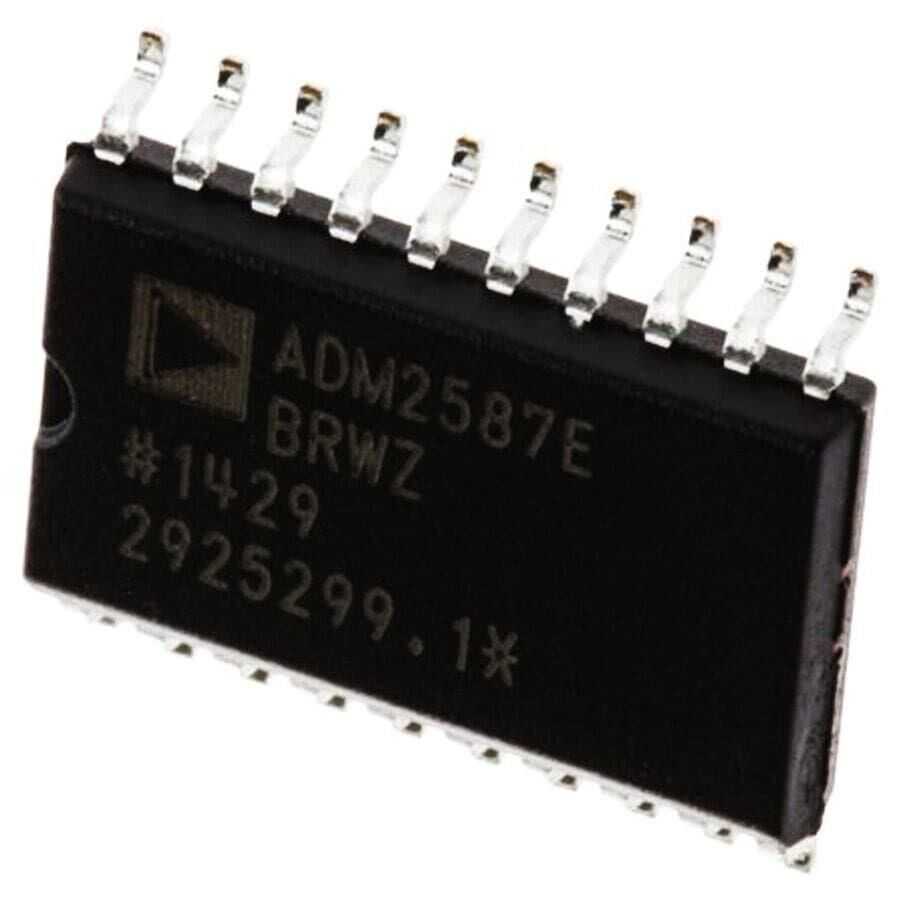

ADM2587EBRWZ SOIC-20 Smd Digital Isolator IC
ADM2582E/ADM2587E are fully integrated signal and power isolated data transceivers with ±15 kV ESD protection and are suitable for high-speed communication on multipoint transmission lines. The ADM2582E/ADM2587E includes an integrated isolated dc-to-dc power supply that eliminates the need for an external dc-to-dc isolation block.
Balanced transmission lines They are designed for and comply with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E).
The devices are a 3-channel isolator, tri-state Integrates Analog Devices, Inc., iCoupler® technology to combine a differential line driver, a differential input receiver, and Analog DevicesisoPower® dc-todc converter in a single package. The devices operate from a single 5 V or 3.3 V supply, realizing a fully integrated signal and power isolated RS-485 solution.
Uses
- Isolated RS-485 /RS-422 interfaces
- Industrial area networks
- Multipoint data transmission systems
| Input Voltage |
3.3V or 5V
|
| Signal Rate |
500Kbps |
| Number of Channels |
3 |
| Insulation Voltage |
2500Vrms |

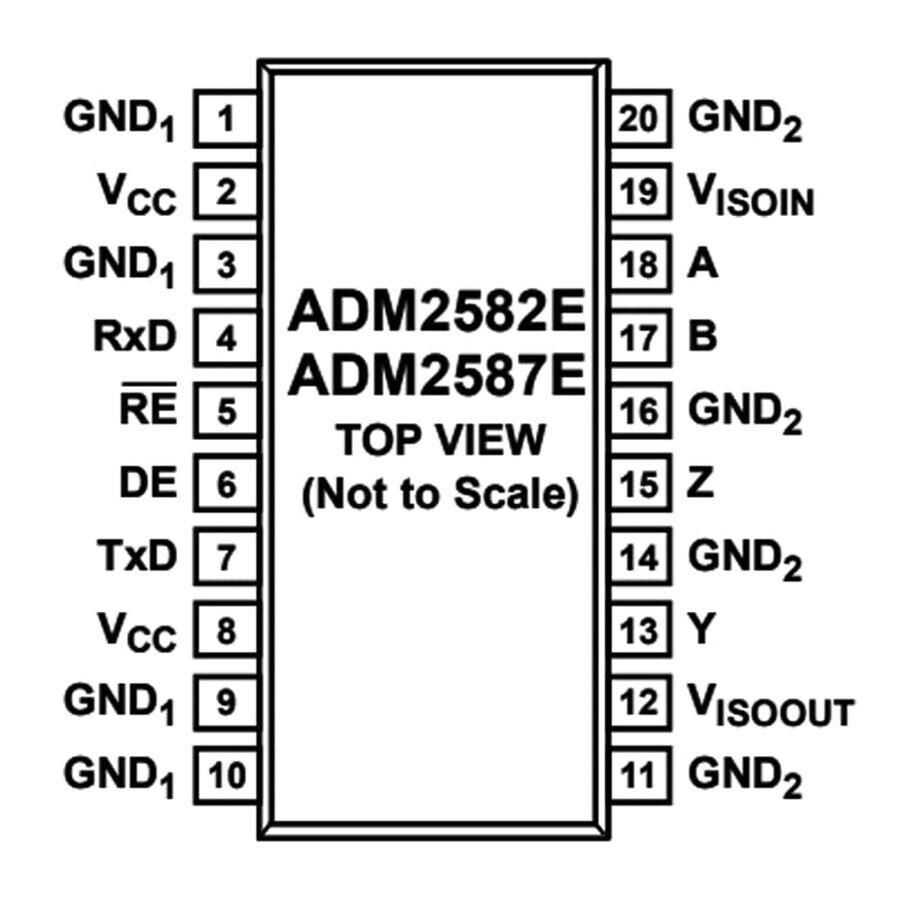

| Number of Pins |
20 Pin |

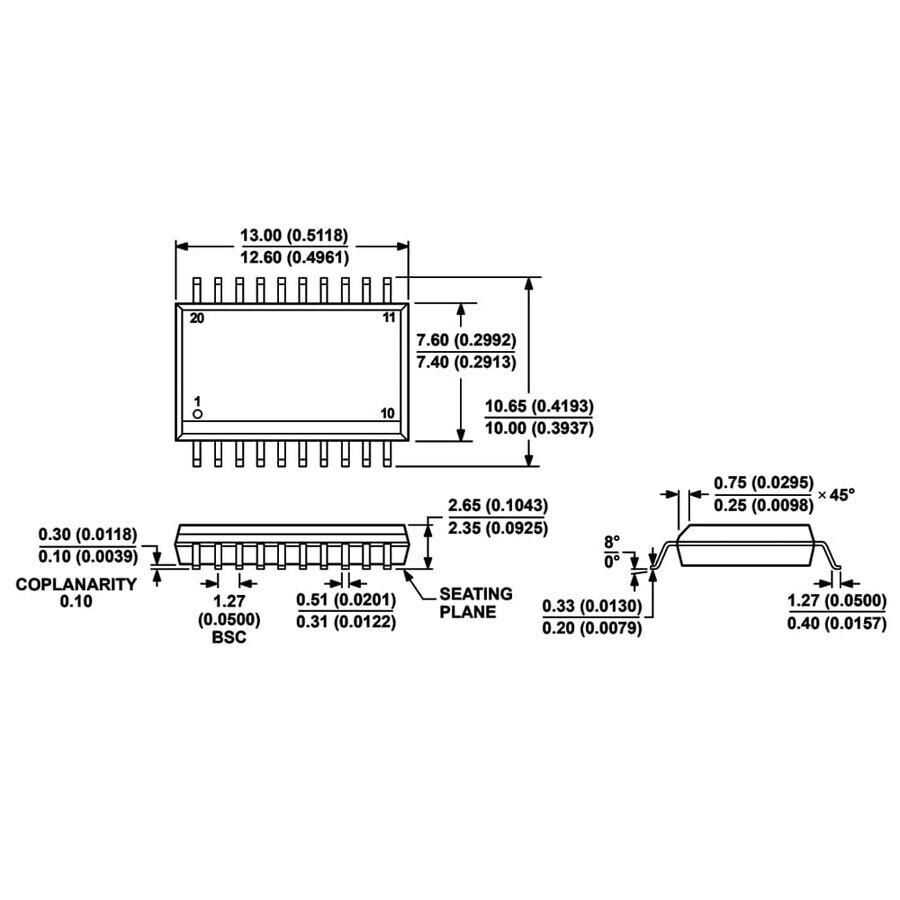

| Package Type |
SOIC20/7.50mm |
