ADR525ARTZ-R2 SOT23-3 Smd Voltage Reference IC
Designed for space-critical applications, the ADR520/ADR525/ADR530/ADR540/ADR550 is a high precision shunt available in ultra-small SC70 and SOT-23-3 packages are voltage references. These references feature a low temperature drift of 40 ppm/°C, a starting accuracy of better than ±0.2%, and ultra-low output noise of 14 μV pp.
2.048 V Available in output voltages of 2.5 V, 3.0 V, 4.096 V and 5.0 V, the advanced design of the ADR520/ADR525/ADR530/ADR540/ADR550 eliminates the need for compensation by an external capacitor, but the references are constant with any capacitive load. The minimum operating current only increases from 50 μA to a maximum of 15 mA. This low operating current and ease of use make these references ideal for handheld, battery-powered applications.

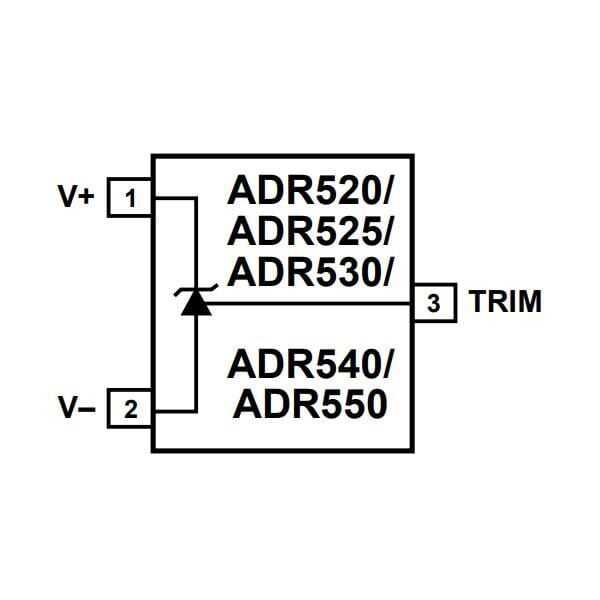

On the ADR520/ADR525/ADR530/ADR540/ADR550, the output voltage is ±0%, without affecting the temperature coefficient of the device. There is a trim terminal that allows it to be adjusted within 5 range. This feature provides users with the flexibility to correct system errors.
Uses
- Portable, battery-powered equipment
- Automotive
- Power sources
- Data acquisition systems
- Instrumentation and process control
- Energy measurement
| Output Voltage |
2.5 V Min.
|
| Tolerance |
±0.4% |
| Reference Type |
Shunt |
| Output Type |
Solid |
| Number of Pins |
3 Pin |
| Package Type |
SOT23-3 |
