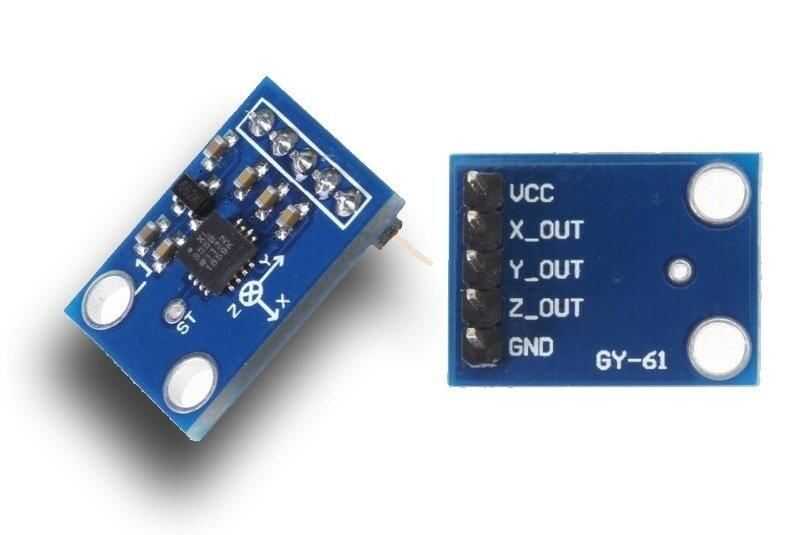

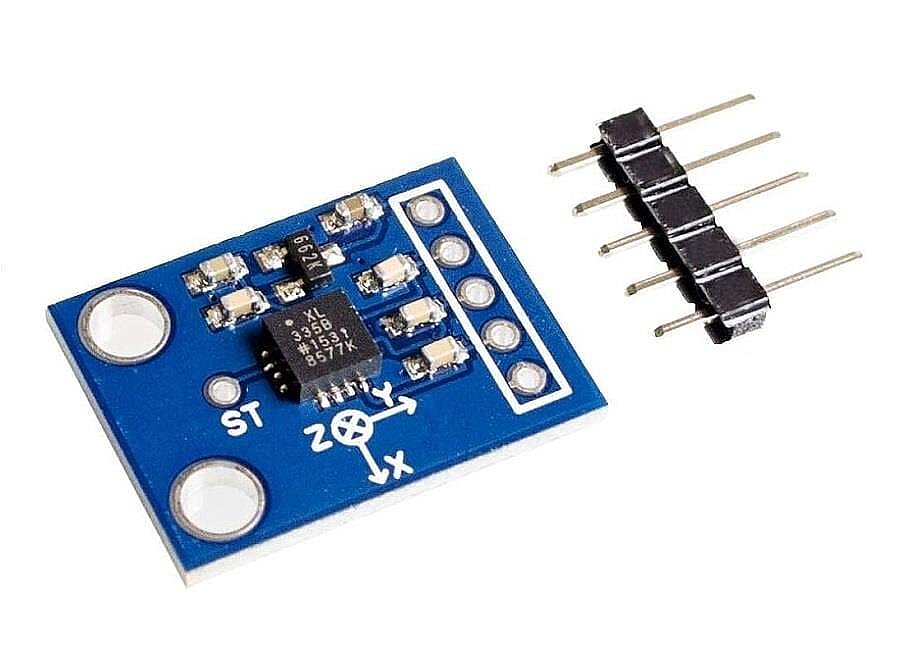

ADXL335 3-Axis Accelerometer - GY-61
ADXL335 three-axis accelerometer module provides easy access to the X, Y and Z axis analog outputs from the accelerometer. It can detect forces up to 3g in the entire axis. It can measure tilt sensing applications in static acceleration of gravity and movement, shock or vibration due to dynamic acceleration. User CX, CY and CZ pin capacitance X OUT, Y OUT and Z OUT select the bandwidth of the accelerometer. Depending on the application, the appropriate bandwidth is X-axis and Y-axis bandwidth from 0.5 Hz to 1600 Hz, Z-axis bandwidth from 0.5 Hz to 550 Hz. A 3.3V onboard regulator is also provided, allowing the module to be powered from a 3.3 - 5V power supply source.
Specifications
- Chip Used: ADXL335
- Power: 3-5v
- Supply Range: 3V - 5V DC
- Full scale range : +/- 3g
- Current: 400uA
- Output: Analog (X, Y, Z outputs)
- Sensitivity: 300mV/g (Typ)
- Operating Temperature: -40C ~ 85C
- Dimensions: 15.7 mm x 20.3 mm x 11.6 mm (L * W * H)

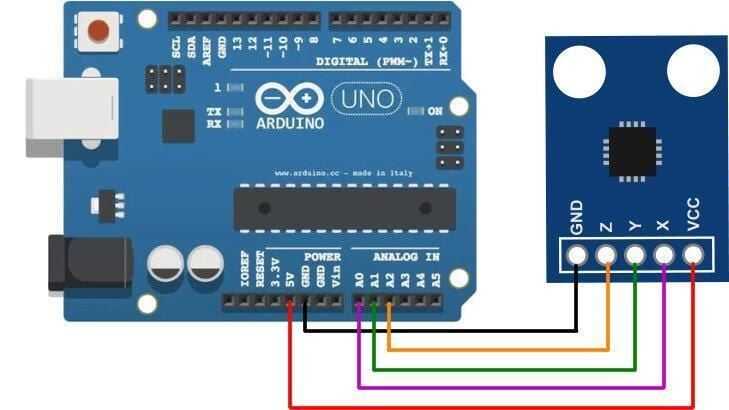

Arduino Connection Diagram
.png)
