AMS1117 SMD 5V Voltage Regulator - LM1117
AMS1117 5V constant voltage output, providing output current up to 1A and 1V It is designed to operate with an input-output difference of up to . The dropout voltage of the device is guaranteed to a maximum of 1.3V, decreasing at lower load currents.
The current limit is set to minimize stress under overload conditions on both the regulator and the power supply circuit.
Usage Areas
Used for positive voltage regulation
Variable power supply
Current limiting circuits
Reverse polarity circuits
Commonly used in desktop PCs, DVDs, and other consumer products
Used in motor control circuits
| Series |
AMS1117 |
| Output Type |
Fixed |
| Output Voltage |
5V DC |
| Input Voltage |
15VDC Max. |
| Current Output |
1A |

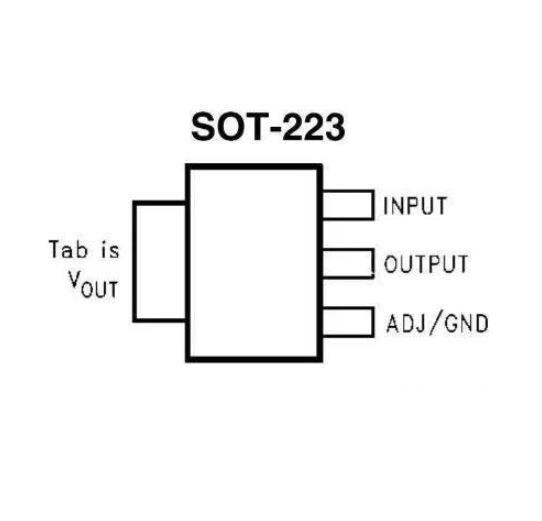

| Package Type |
SOT-223 |
