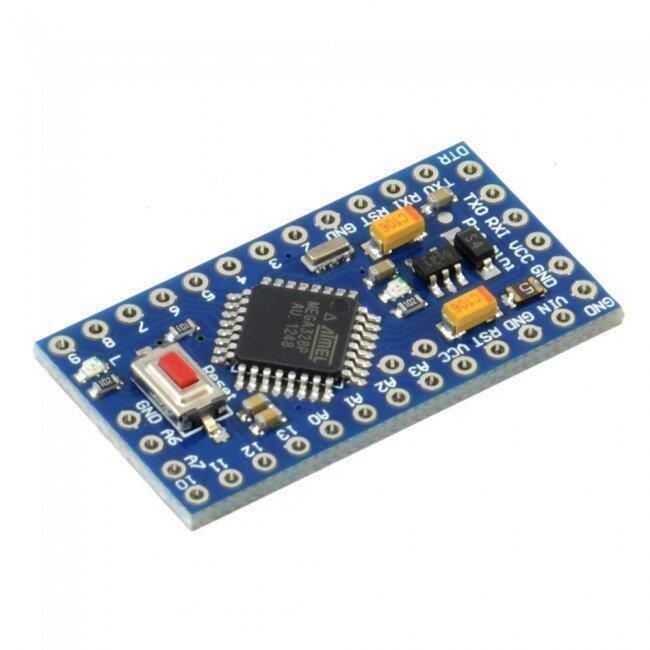

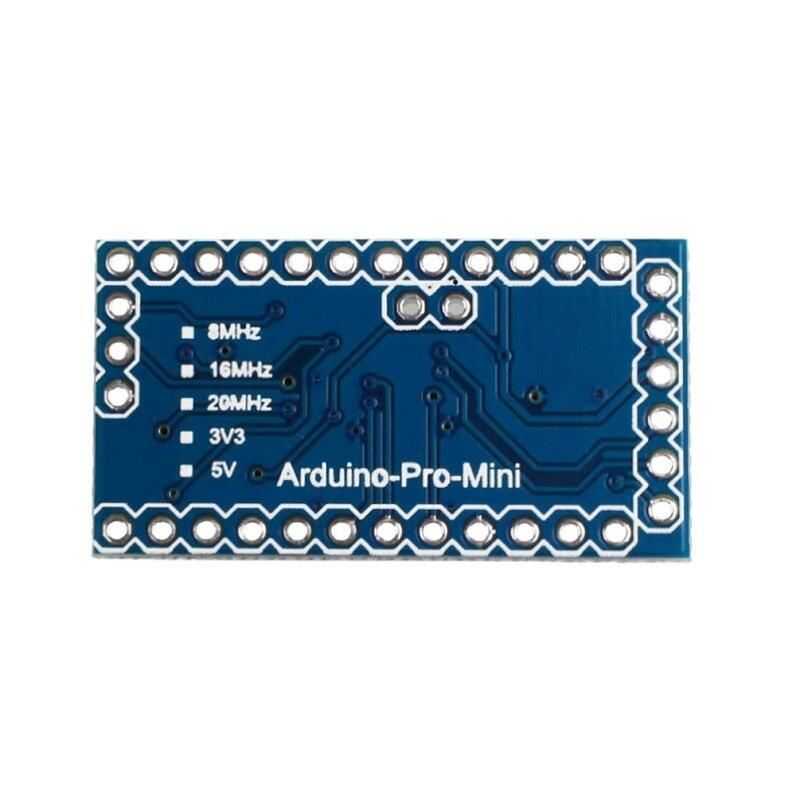

Arduino Pro Mini 328 - 3.3V/8MHz Clone



Arduino Pro Mini is a microcontroller board based on ATmega328. It has 14 digital input/output pins (6 of which can be used as PWM outputs), 6 analog inputs, a built-in resonator, a reset button, and holes for mounting pin headers. A six-pin header can be connected to an FTDI cable to provide USB power and communication with the board.

The Arduino Pro Mini is designed for semi-permanent installation on objects or exhibits. The board does not have pre-assembled headers and allows the use of various types of connectors or direct soldering of wires. The pin layout is compatible with Arduino Mini.

This version of Pro Mini operates at 3.3V and 16 MHz.

Arduino is an open source electronic platform based on easy-to-use hardware and software. Arduino cards receive and process the signal from sensors, buttons, or any product that gives a signal, and perform the operations you want to do in line with this signal. For example, you can turn on an LED by pressing a button, and you can adjust the direction and speed of your motor with the help of a motor driver. You can make remote controlled vehicles or robots with Bluetooth or Wi-Fi control. With the help of relays, you can create many projects that can be turned on and off with your commands.



• Microcontroller: ATmega328
• Operating Voltage: 3.3V
• Input Voltage: 5 - 12 V
• Digital I/O Pins: 14 (6 of which provide PWM output)
• Analog Input Pins : 6
• DC Current Per I/O Pin: 40 mA
• Flash Memory: 32 KB (2 KB of which is used by bootloader)
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock Speed: 16 MHz
