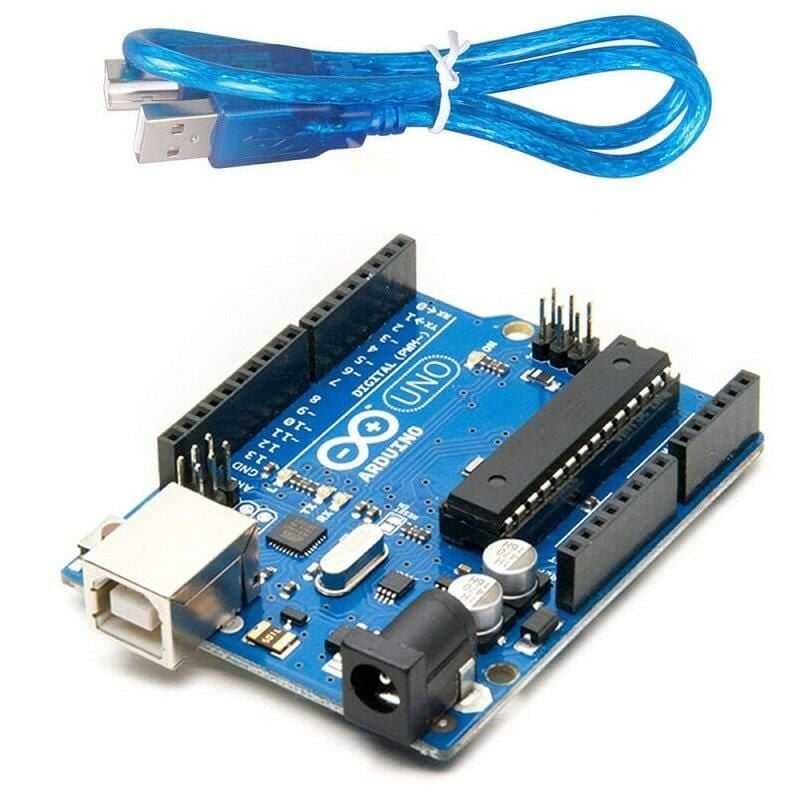

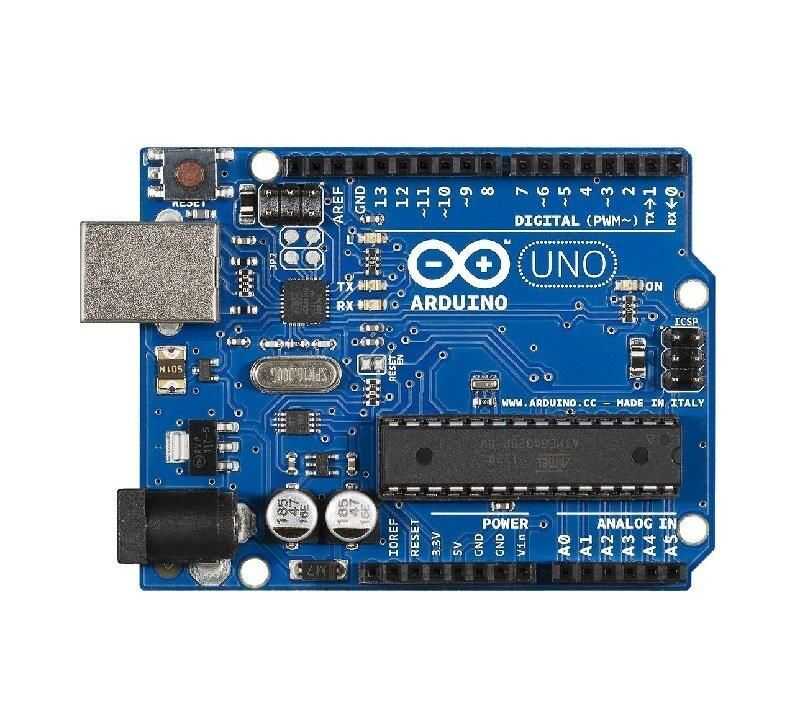

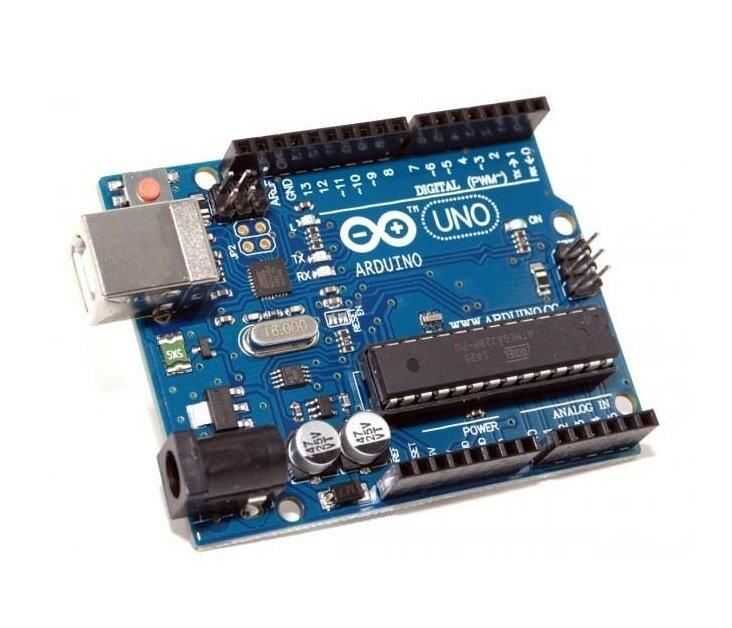

Arduino Uno R3 DIP Clone - (USB Cable Included)

There is no difference from the original product in terms of usage and software. DIP sheath integrated is used. The integrated circuit on it is replaceable. The USB cable is shipped with the product.

The clone Arduino has an ATmega328 processor, just like the original.

It offers the opportunity to use ATmega328p in our own DIY projects.





Arduino is an open source electronic platform based on easy-to-use hardware and software. Arduino cards receive and process the signal from sensors, buttons, or any product that gives a signal, and perform the operations you want to do in line with this signal. For example, you can turn on an LED by pressing a button, and you can adjust the direction and speed of your motor with the help of a motor driver. You can make remote controlled vehicles or robots with Bluetooth or Wi-Fi control. With the help of the relay, you can create many projects that can be turned on and off with your commands.



• Operating Voltage: 5V
• Input Voltage  6-20V (recommended) 7-12V
• Digital I / O Pin: 14 Pin (6 Pin providing PWM output)
• Analog Input: 6 Pin
• Output Current Per Pin: 40 mA
• 3.3V Pin 50 mA DC Current
• Memory: 0.5 KB Flash Memory used by Bootloader 32 KB (ATmega328)
• SRAM : 2 KB (ATmega328)
• EEPROM: 1 KB (ATmega328)
• Frequency: 16 MHz
• Size: 68.6 mm x 53.4 mm
• Weight: 25g
