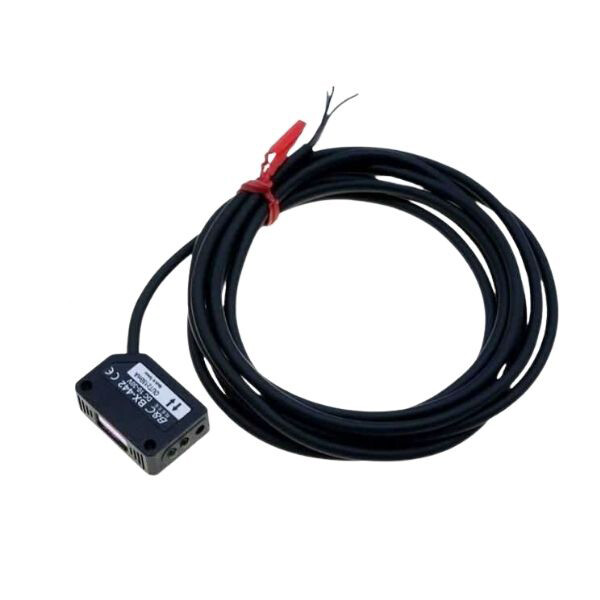

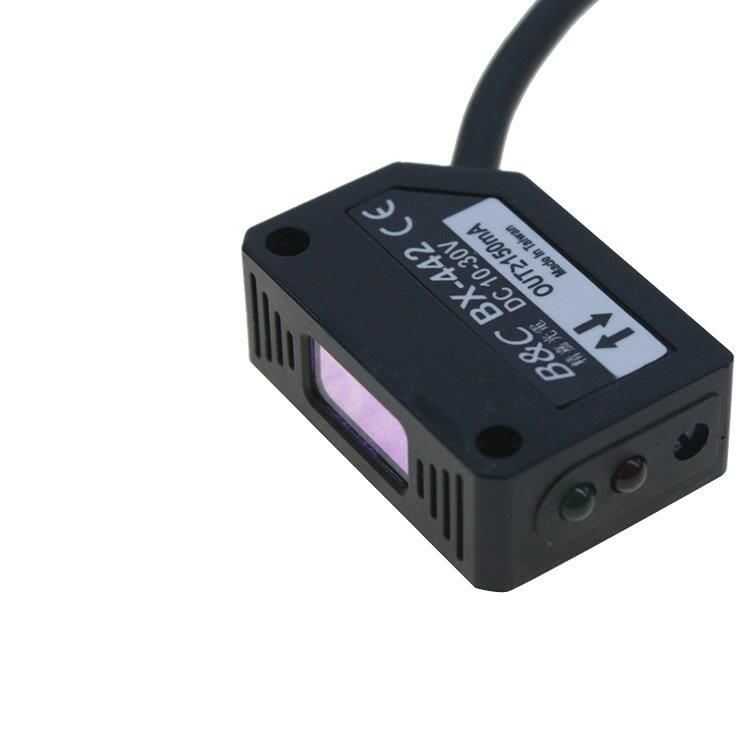

It is a very useful product with 1ms response time. By changing the distance and vision level with the trimpot on it, detection can be made in the range of 10-150 cm. It is an infrared sensor used in industrial projects.
Product Features:
Operating Voltage: 12-24V DC
NPN NO
Adjustable 15-150cm distance range
Response Time: 1ms
Operating Current: 100mA
Sensor Size: 3.1 x 2 x 1.2 cm
Sensor Connection Cables:
Brown: You must apply DC voltage between 12-24V.
Blue: It is the ground line of the sensor.
Black: It is the output cable of the sensor. Since the sensor operates in the 12-24V range, it must be used with a pull-up or voltage divider resistor when using microprocessors operating with +5V.
