BD-24-C03PE-23-001A 3-Pin Waterproof Connector - Male

Ratings & Reviews (0)
Comment
Brand: CNLINKO
Product Code: KOM.KNN.05.000127
Stokta son 8 ürün
619.87 TL + VAT
VAT Included: 743.85 TL

BD-24-C03PE-23-001A 3-Pin Waterproof Connector - Male

BD-24 series power and signal waterproof connectors, stand-alone or can be fixed together and used to provide solutions for equipment connections in different industries. It has uses such as audiovisual equipment, medical equipment, industrial control, test and measurement equipment, AV system, broadcast television and communications, industry. Suitable for connection of equipment installed on the front and back of the board.
The new BD-24 (M24 type) series waterproof connector adopts streamlined dynamic design, one-button device end push and quick plug-in .



Technical Specifications

  • High temperature and pressure resistance
  • IP65/67 rating when connected
  • Number of Pins: 3
  • Pin Diameter - 3.2 mm
  • Cable Connection - 12-14 AWG
  • Rated Current - 25 Amperes
  • Operating Voltage - 500V AC
  • Contact Resistance - <5mOhm
  • Withstand Voltage - 2500V
  • Ingress Protection - IP65/67
  • Operating Temperature - -40 C - 80 C
  • Body Material - High Performance Plastic
  • Flammability Rating- UL94-V0

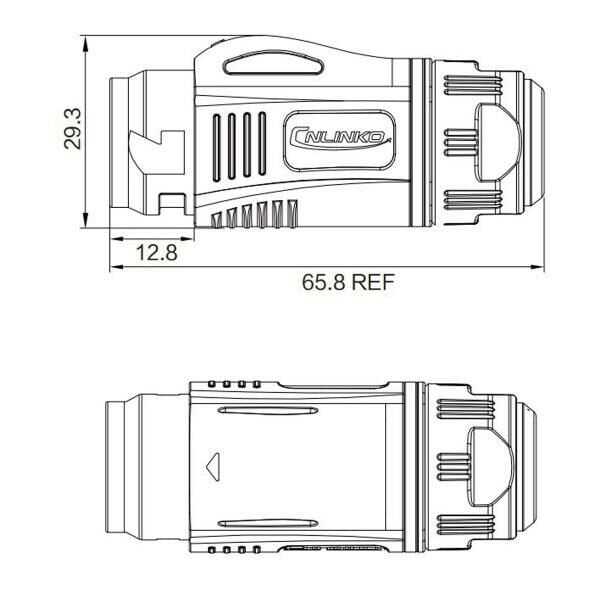

BD24 Waterproof Connector Datasheet

Weight(Kg)
0.1
Features
Connector Pin
3-Pin
