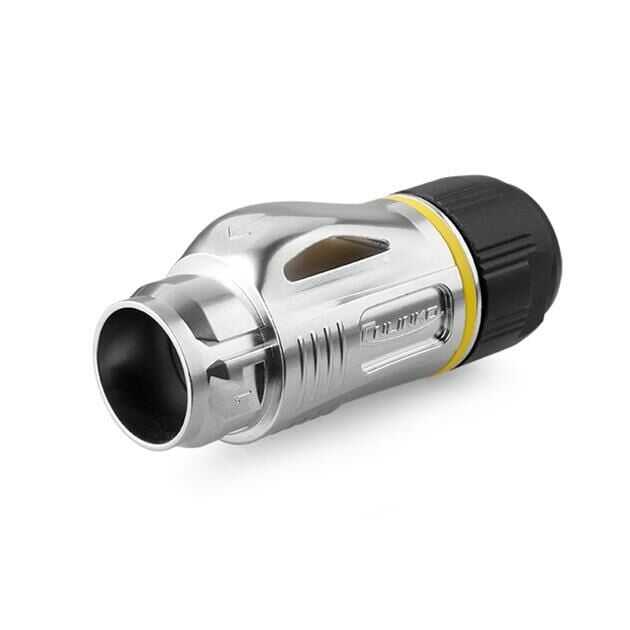

BD-24-C/RJ45/015/PE-43-001A Waterproof Ethernet Connector - Male
BD series is the newly developed modern style series products . Direct locking design ensures a more stable connection, more convenient operation and a more durable use time. Meet the quality and meet the environmental protection requirements of international industrial equipment. Quick plug design allows one-handed insertion/removal.
Suitable RJ45 cable plug protection for a fast and secure data connection. Simple slot for attached RJ45 cable (RJ45 cable not included).
Technical Specifications
-
High temperature and pressure resistance
-
IP65/67 rating when connected
-
Connector Type: RJ45
-
Cable Connection - 24-26 AWG
-
Rated Current - 1.5 Amperes
-
Operating Voltage - 42V
-
Contact Resistance - <1mOhm
-
Withstand Voltage - 1000V
-
Ingress Protection - IP65/67
-
Operating Temperature - -40 C - 80 C
-
Body Material - High Performance Plastic

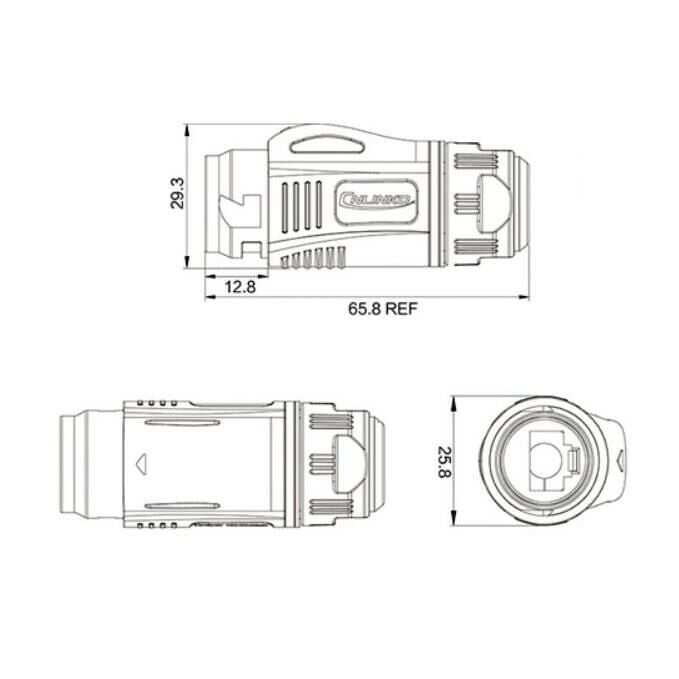

BD24 Waterproof Connector Datasheet
