Brushless 24v 2000 Rpm Brushless Fan Motor

Ratings & Reviews (0)
Comment
Show More: Brushless Motors
Brand: Motorobit
Product Code: MTR.RDZ.03.000003
Stokta 10+ ürün
880.00 TL + VAT
VAT Included: 1,056.00 TL

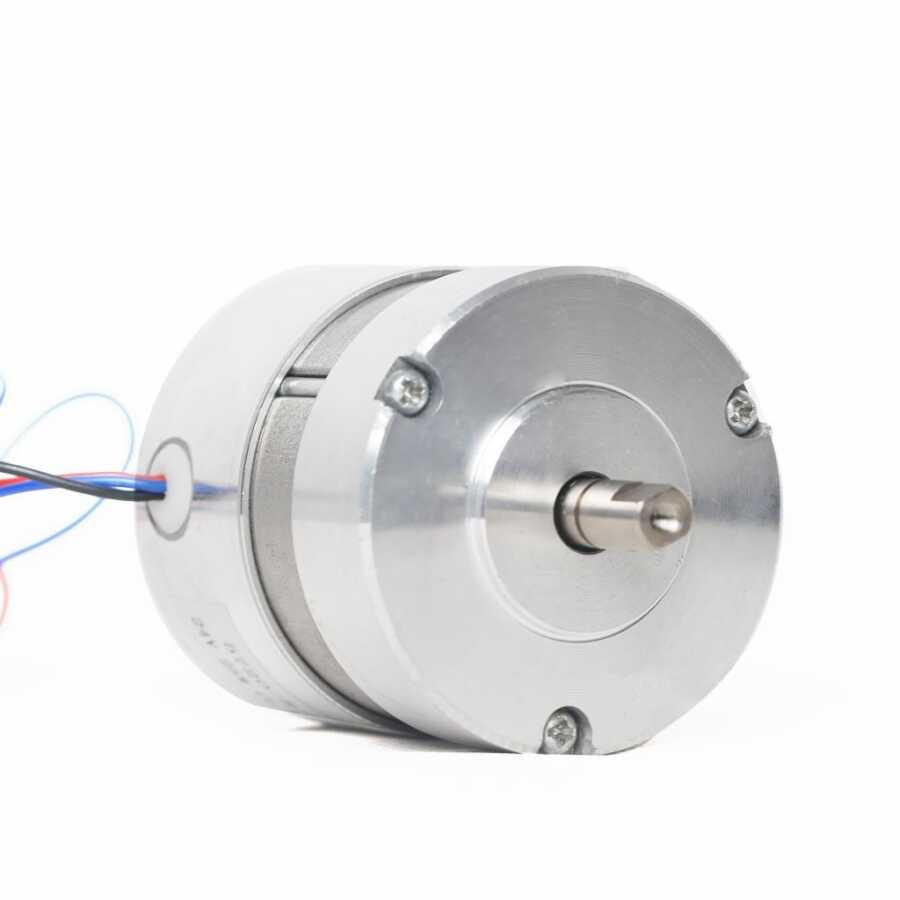

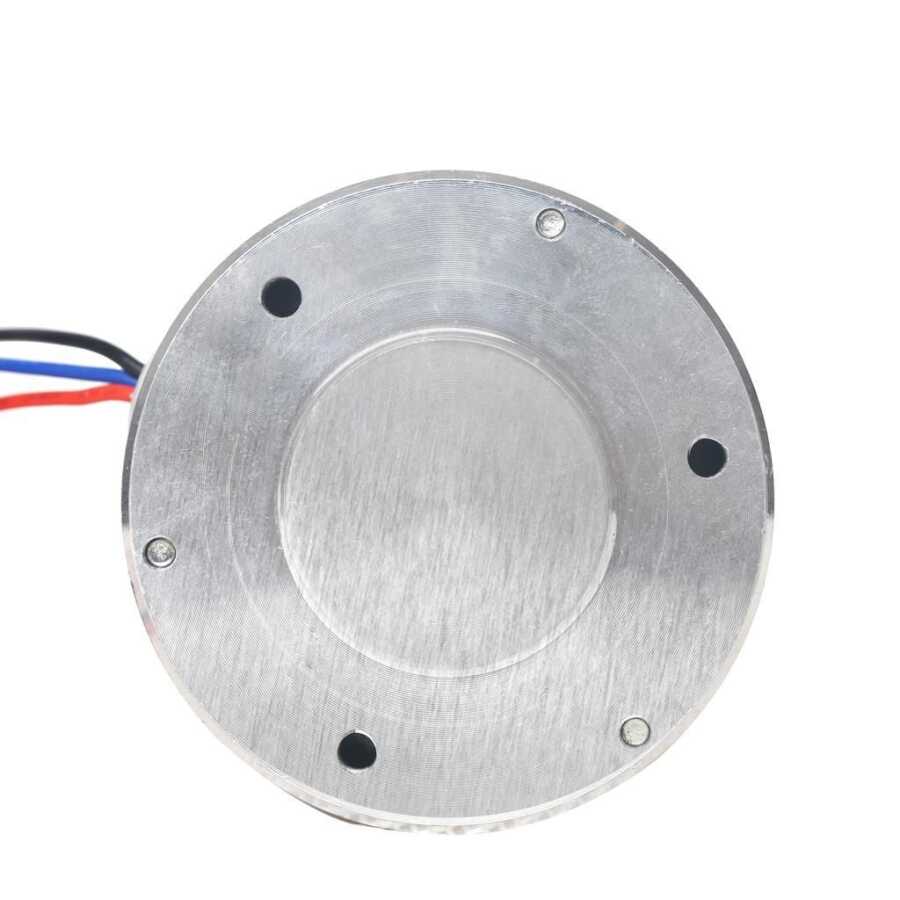

Brushless 24v 2000 Rpm Brushless Fan Motor


24v 2000rpm brushless motor. It is a motor generally used in overhead fans, electric fireplaces and blenders. The product has three wires. These are plus, minus and pwm terminals. It can be used with fan drivers with PWM control.


Technical Specifications:

  • Model: 5720-8
  • Weight : 465g
  • Rated Voltage: 24V
  • Rotation: CW
  • No-load speed (RPM): 2050
  • Rotor: Inner rotor
  • Load Current: 0.4 ± 0.1A
  • Noise level: Max. 30db
  • Rated torque: 0.12Nm / A

Product Dimensions:

  • Motor Diameter: 57mm
  • Motor Length (Excluding Shaft): 60mm
  • Shaft Diameter: 8mm
  • Shaft Length: 17mm
Weight(Kg)
0.5
