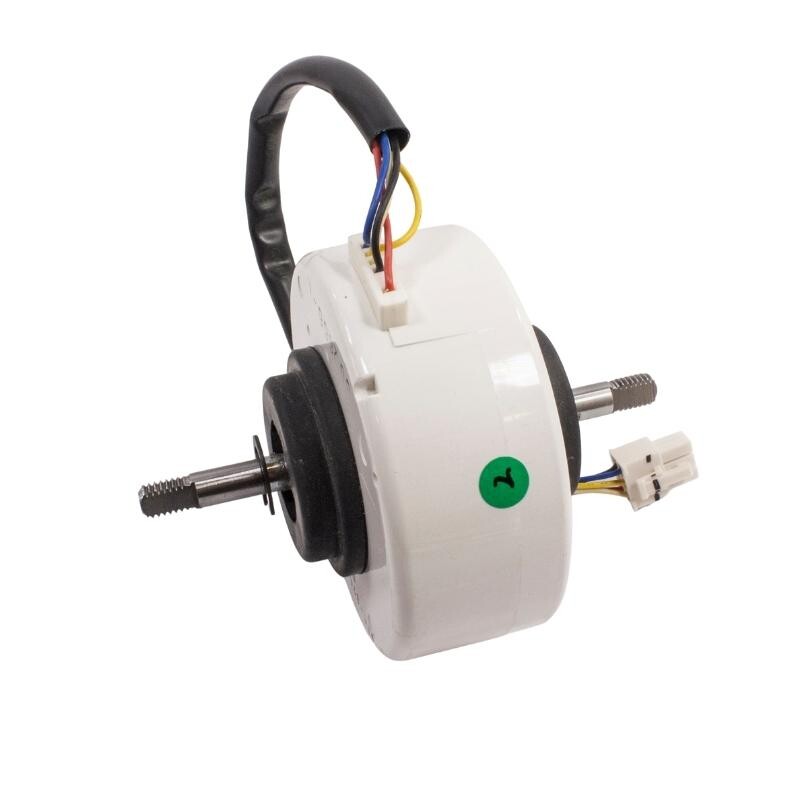

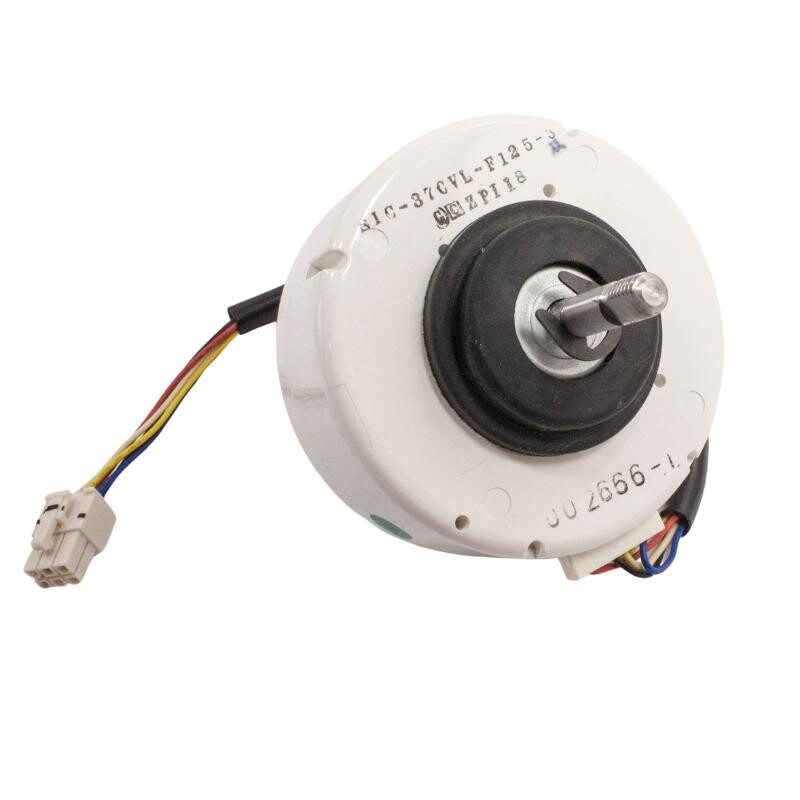

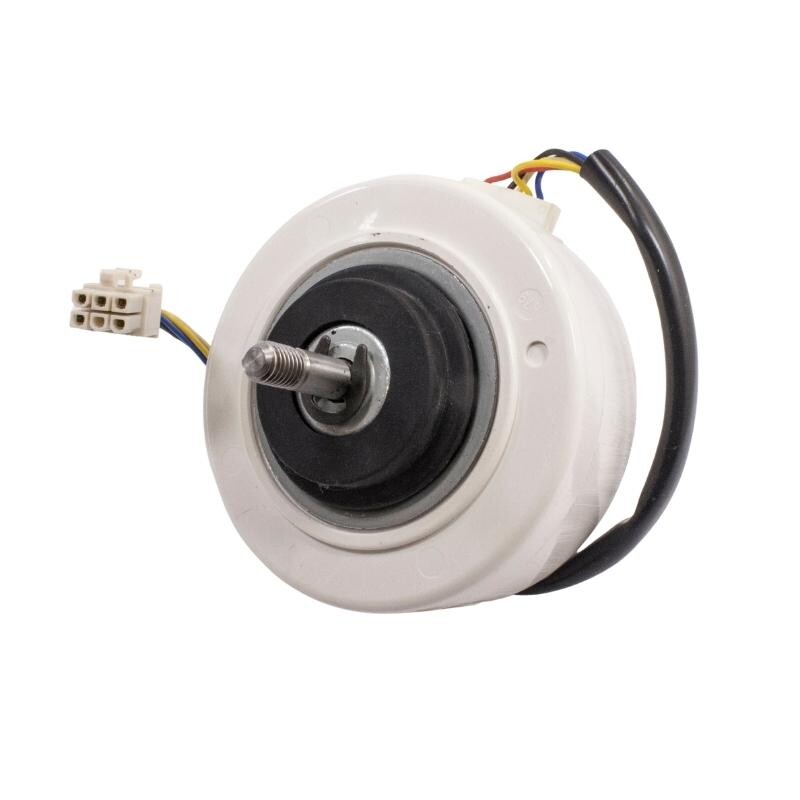

SIC-37CVL-F125-3 DC 310V 25W Brushless Air Conditioner Motor

SIC-37CVL-F125-3 DC 310V 25W Brushless Air Conditioner Motor

SIC-37CVL-F125-3 DC 310V 25W Brushless Air Conditioner Motor is brushless, generally used in air conditioners. ) is the engine. It works with 310V DC and has a power of 25W. It has a rotation speed of 1400RPm. It is double national. Shafts are d-shaft.

Technical Specifications

• Supply Voltage: 310V DC
• Power: 25W
• Rotation Speed: 1400 r/min
• Motor Body Diameter: 91mm
• Motor Length (including shafts): 120mm
• Upper Shaft Diameter: 8mm< /li>
• Upper Shaft Length: 33mm
• Lower Shaft Diameter: 8mm
• Lower Shaft Length: 28mm

Pinout

• Blue: FG 12pulse/round
• Red: Vm 310VDC
• White: VCC 15VDC
• Yellow : Vsp 0 ~ 6.5V
• Black: GND
