Button Relay Module 12V 10A

Ratings & Reviews (0)
Comment
Show More: Other Relay Boards
Brand: Motorobit
Product Code: RLK.DGR.01.000014
Stokta 100+ ürün
140.80 TL + VAT
VAT Included: 168.96 TL

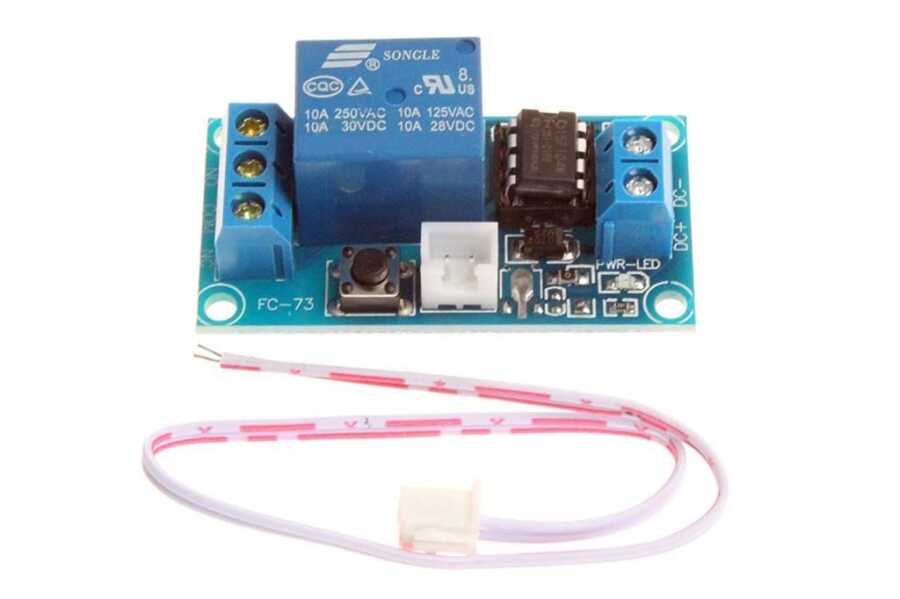

Button Relay Module 12V 10A

Button Relay Module 12V 10A, Trigger button on it  When the button is pressed once, the relay is triggered and activated, when pressed again, the connection is broken. There are mounting holes on the PCB for easy mounting. Thanks to the socket cable sent with it, it is possible to remotely control the socket part by connecting the other two ends to the card. You can turn on the devices in the home area. It is used to shut down, to perform switching operations in electronic circuits, to disconnect or connect connection loads of heavy loads in safety circuits in any dangerous situation, etc.

Features:

  • Introduction Voltage: 12V
  • Current: 10A
  • AC Load Voltage: up to 250V
  • DC Load Voltage: up to 30V
  • Dimension: 50.5x21x14mm
  • Mounting Hole Diameter: 3.1mm
      Weight(Kg)
      0.1
