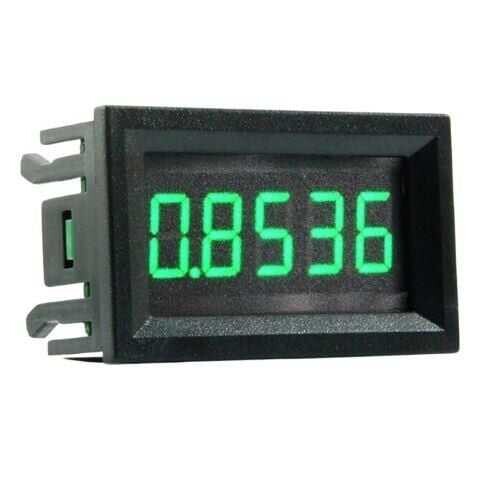

BY536A DC 0-70,000mA High Precision Digital Ammeter - Green
It is a high precision ammeter with a digital display that you can measure between 0-70mA. A 5-digit voltage value is displayed on the display. The device's own operating range is 4-30V. Therefore, care should be taken when making connections.
Features:
- Supply Voltage: 4-30VDC (Recommended 5 ~ 12V)
- Display Color: Green
- Measuring Range: 0.0000 ~ 70.0000mA
- Reverse Polarity Protection
- Sampling Rate: 300ms
- Input Impedance: 10 mOhm
- Working Current: ≈ 20mA
- LED Size: 0.36 inch LED
- Weight: 19g
Connection Diagram
Size
