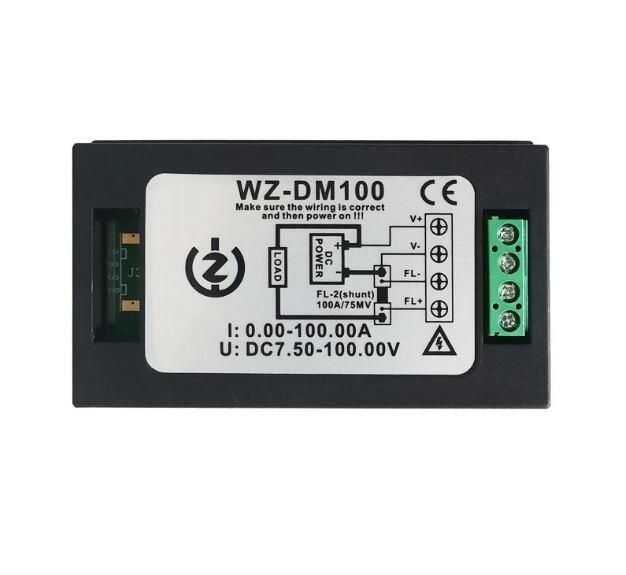

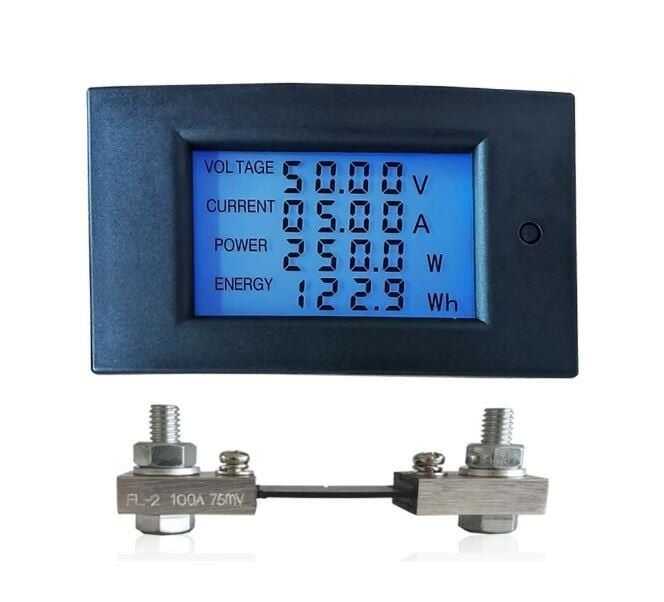

WZ-DM100 100V 100A Voltmeter Ammeter - 75mV Shunt Resistor
WZ-DM100 100V 100A Voltmeter Ammeter - 75mV Shunt Resistor. It is a Multi-Functional Voltmeter Ammeter. It can measure currents up to 100A with its high-precision 100A 75mV shunt. It can measure voltage, current and power in the circuit.
Device Functions
- Current Measurement
- Voltage Measurement
- Power Measurement
- High Voltage Warning System
- Low Voltage Warning System
- Adjustable Current Range
- Power Saving Mode
Features
- Operating Voltage: 7.5V-100V DC
- Operating Current: <10mA
- Measurable Voltage Range: 7.5-99.99V DC
- Measurable Current Range: 0-99.99A
- Rated Power: 100A / 10KW
- Operating Temperature Range : -10 ~ 50°C
