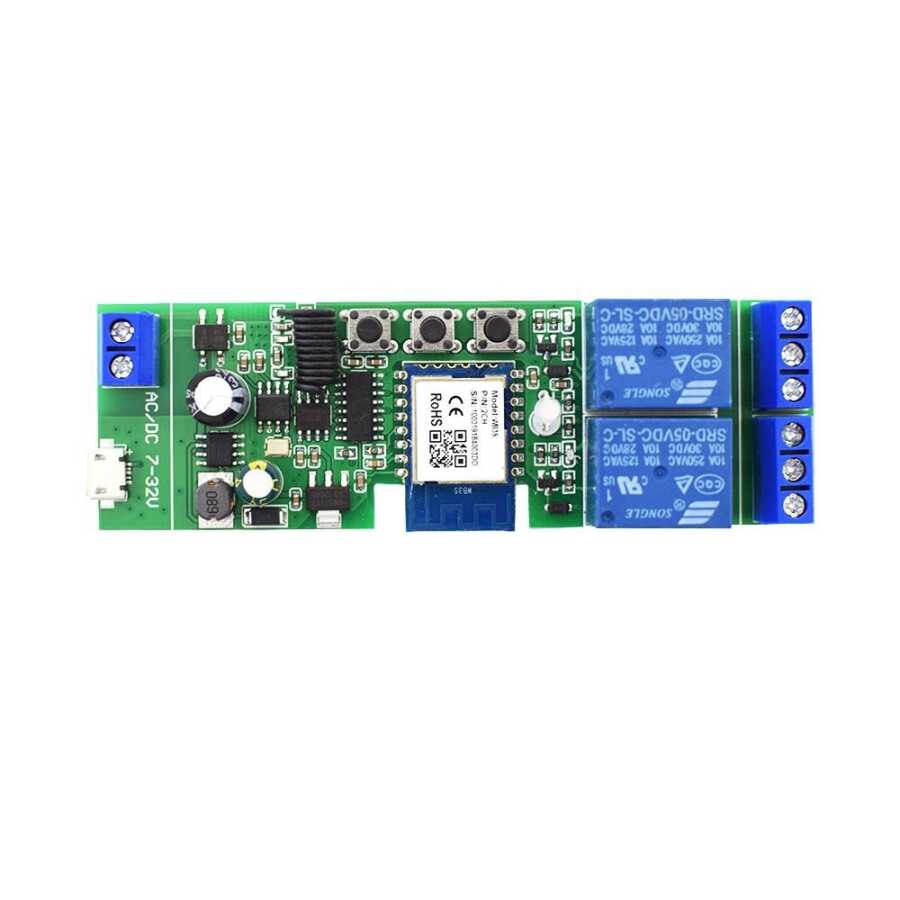

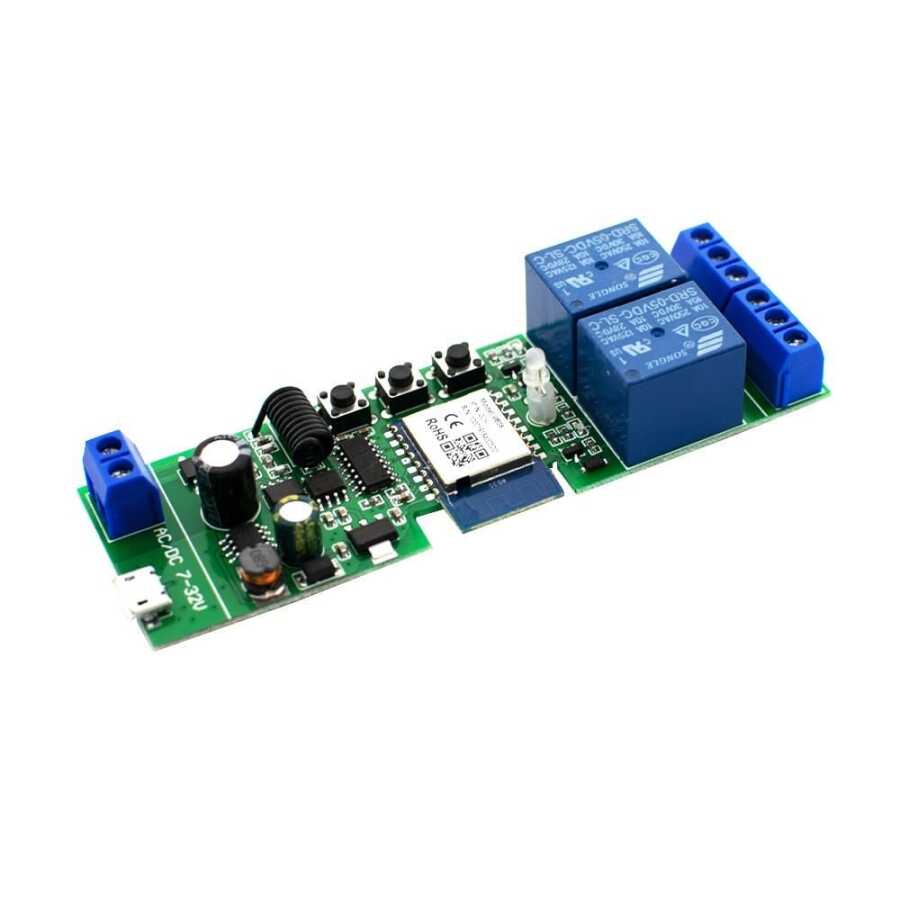

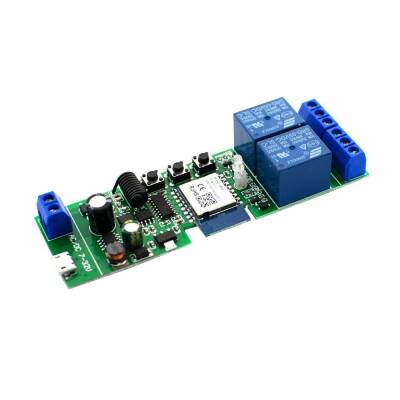

DC 7-32V WiFi 2 Channel Relay Module - APP Controlled
WiFi 2 Channel Relay Module is a low-cost, low-cost, It is an affordable device. You can control it via phone via wifi by downloading the Tuya Smart application on Android and IOS devices.
Supports inching/self-locking modes. In self-locking mode, customers can instantly remotely turn on/off connected devices. When in inching mode, customers can choose two wiring ways: 1s on and then auto off, 1s off and then auto on.
Features:
- Operating voltage: 5V or 7-32V DC/AC
- Product Size: 105x33x20mm
- LED: 1 LED (respectively shows working mode, wifi status, relay on/off status shows)
- Two input interfaces Supports controlling different voltage ranges
- Card consumption: <1W
- Standby current: 80mA
- Maximum input current: 10A
- Maximum Watt: 2200W
- Relay maximum turn-on time: 15ms
- Relay maximum release time: 5ms
- Mobile Application: Tuya / Smart life on Android/IOS
- Application: access control, opening computer, garage door etc.
