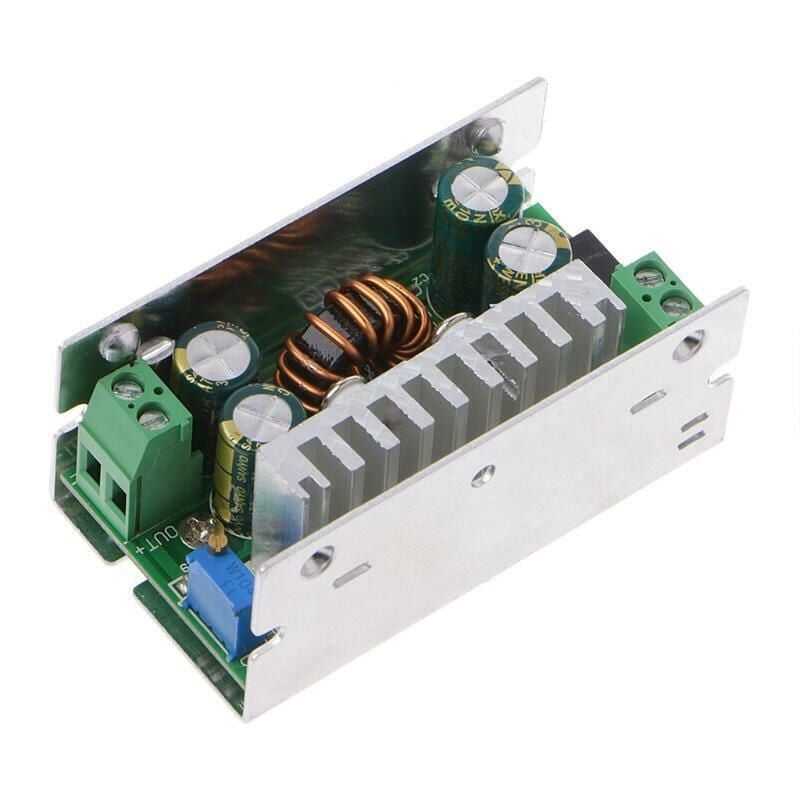

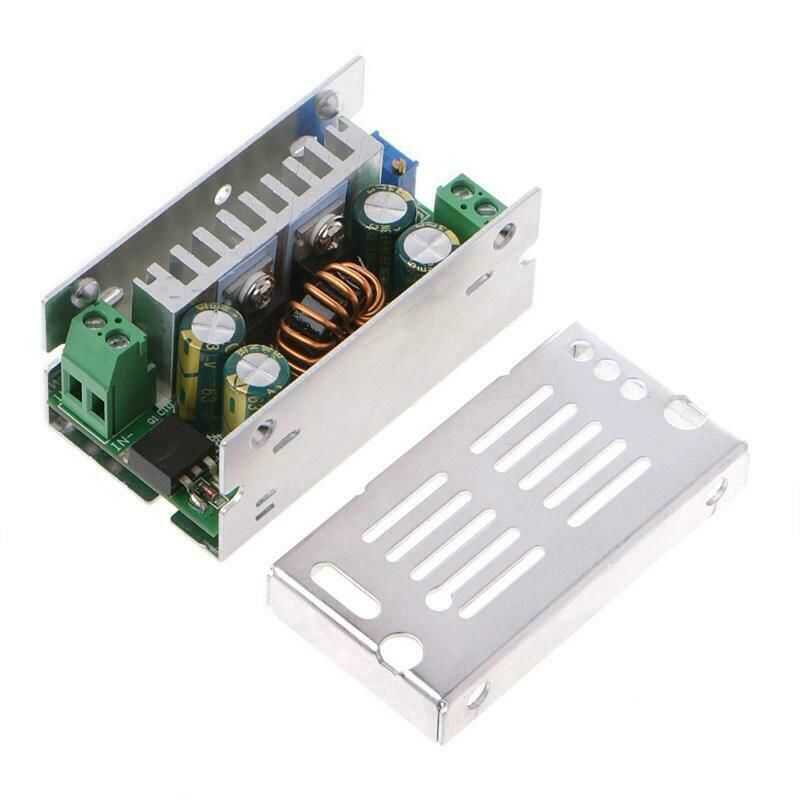

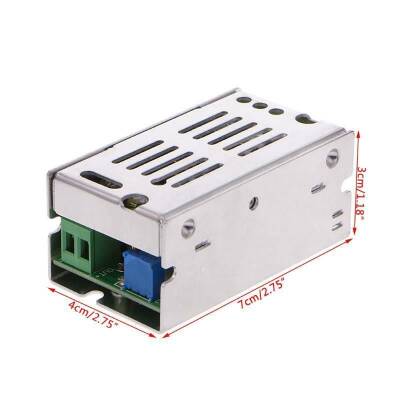

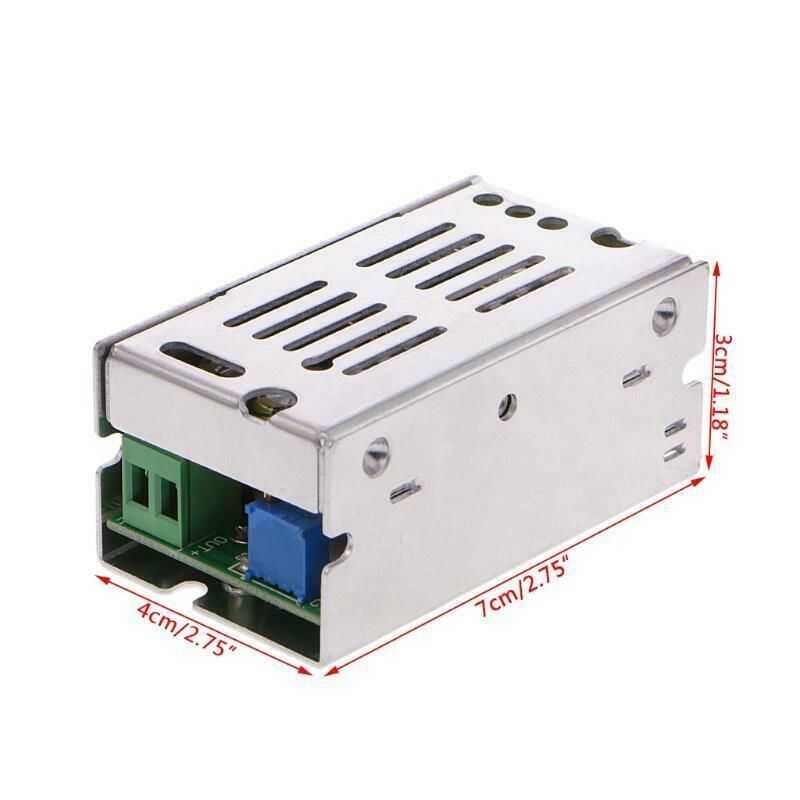

DC-DC 8-60V 15A Adjustable Voltage Reducer Module

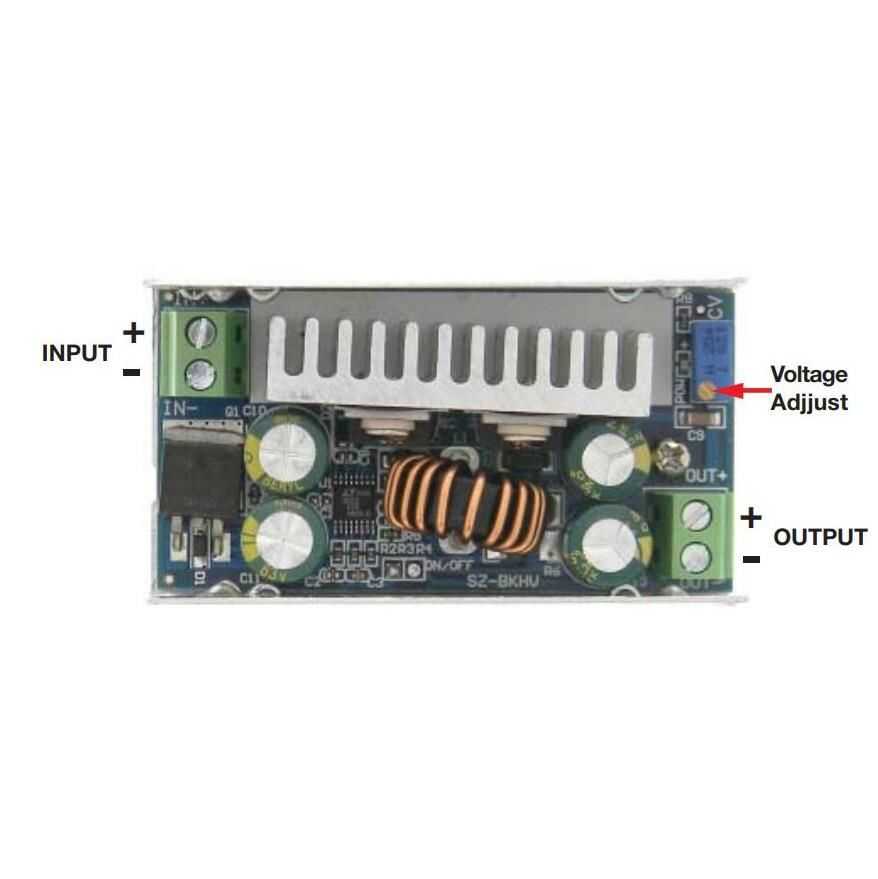

Voltage that can reduce the entered voltage value between 8-60v to a voltage value between 1-36v It is the regulator. Voltage adjustment can be easily made with the trimpot on the voltage reducer. The product is resistant to a maximum of 15 Amperes and 10 Amperes in continuous use.
Technical Specifications
-
Input voltage: 8-60V
-
Output voltage: 1-36V continuously adjustable (default output 12V)
-
Output Current: Normal 10A , MAX15A
-
Output power: natural cooling ventilation long-term power 100W
-
Operating temperature: -10 to +85 ℃
-
Operating frequency: 180KHz
-
Conversion efficiency: up to 94%
