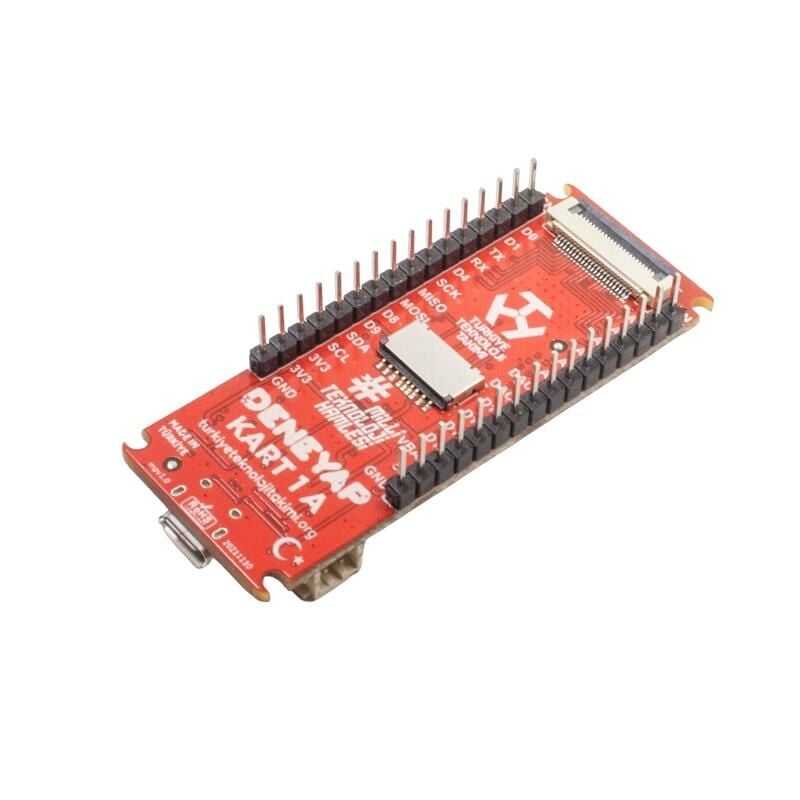

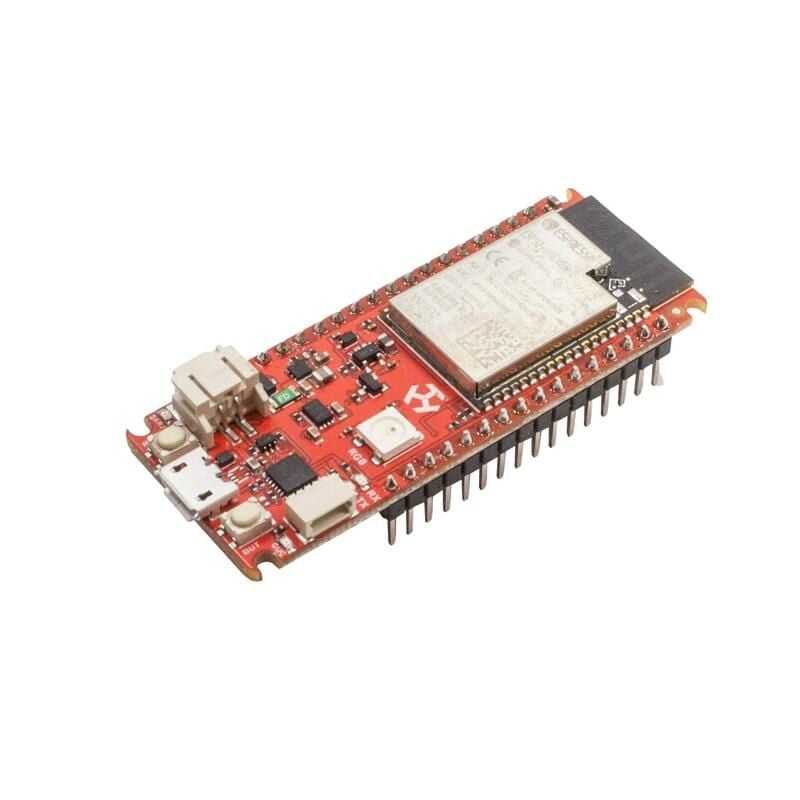

Deneyap Kart 1A Electronic Development Card
Deneyap Kart 1A Electronic Development Card. Versatile and powerful electronic development card made by Deneyap company, original ESP32-WROVER It was developed using the -E module. Thanks to its built-in Wi-Fi and Bluetooth communication features, it will enable you to prepare internet of things and cloud-based projects.
With its dual mode (Dual) Bluetooth feature, it will enable you to create both BLE and You can exchange data with devices that have Bluetooth EDR infrastructure. DENAP Card; smart home, smart agriculture, smart vehicles, mobile health, etc. It offers you great convenience in internet of things projects where you can implement applications in areas.
ADC, DAC, UART, PWM, I2C, SPI, I2S, Ethernet, SD, Capacitive Sensing, TWAI, RMT, It has a rich range of peripheral connections such as JTAG and external interrupt. In addition, to provide you with flexibility, some of these connection interfaces can be used from any pin you want according to your needs.
Deneyap Kart 1A has a breadboard-compatible design. . The pins are soldered for you so you can start developing right away. Deneyap Card 1A is compatible with Arduino IDE. You can start coding using the instructions.
Features
- 240 MHz Dual Core Tensilica Xtensa LX6 Microprocessor
- 520 KB SRAM
- 128 KB ROM
- 8 MB PSRAM
- 4 MB SPI Flash
- 2.4 GHz Wi-Fi – 802.11b/g/n
- Bluetooth EDR and BLE
- Internal PCB Antenna
- General Purpose Button (Pin: D8)
- 3.3V Operating Voltage
- 3.3V and 5V Output Voltage
- 3.3 – 5.5V Input Voltage
- Dimension: 63.50mm x 25.4mm x 15.70 mm
Documents
Deneyap User Manual
Technical Drawing
