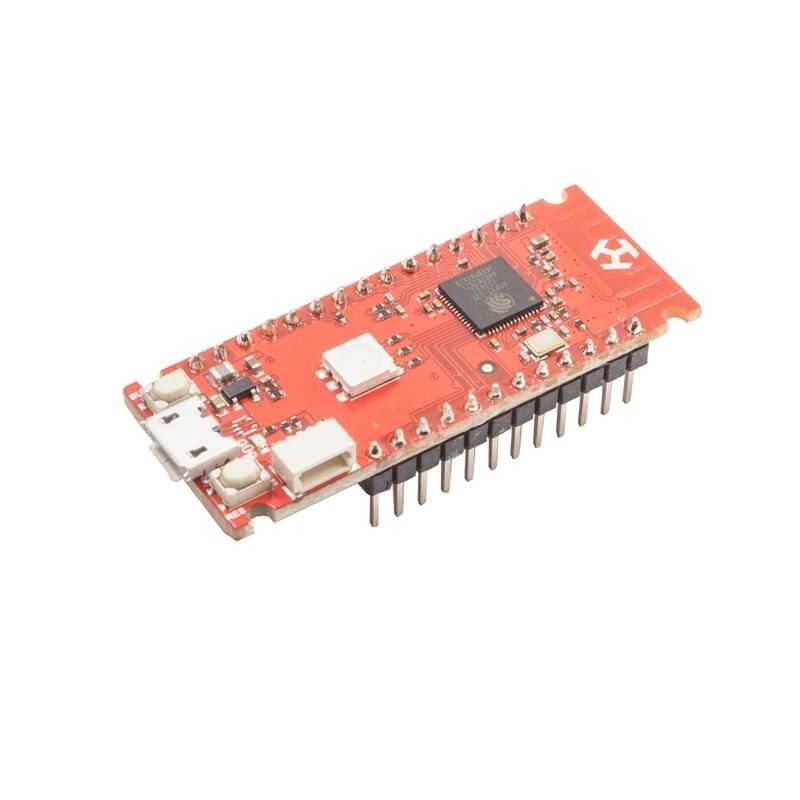

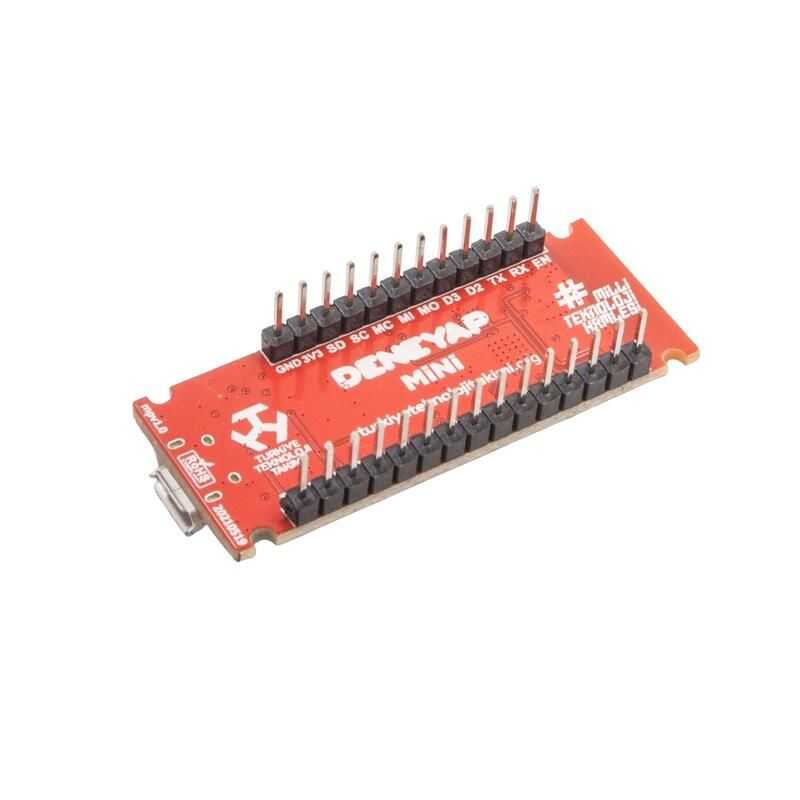

Deneyap Mini Electronic Development Board
Deneyap Mini Electronic Development Board.Deneyap Mini, made by Deneyap company, was developed using the original ESP32-S2 integrated microprocessor.
Data can be exchanged between your system and your cloud-based application by using the Wi-Fi communication feature. You can establish a closed-loop wireless communication network by using Deneyap Mini as a server.
It has many connection interfaces such as USB OTG, SPI, UART, I2S, I2C, Capacitive Sensing. In addition, some of these connection interfaces can be used from any pin you want according to your needs.
By using the I2C communication connector, you can quickly connect the system consisting of sensor and actuator units without cable connection or soldering. You can install it.
Features
- Single Core 240MHz Tensilica Xtensa 32-bit LX7 Microprocessor
- 4 MB SPI Flash
- 320 KB SRAM
- 128 KB ROM
- 2.4 GHz Wi-Fi – 802.11b/g/n
- Internal PCB Antenna
- General Purpose Button (Pin: GPKEY)
- 3.3V Operating Voltage
- 3.3V and 5V Output Voltage
- 3.3 – 5.5V Input Voltage
- Dimension: 50.00mm x 20.32mm x 12.96mm
Documents
Deneyap User Book
