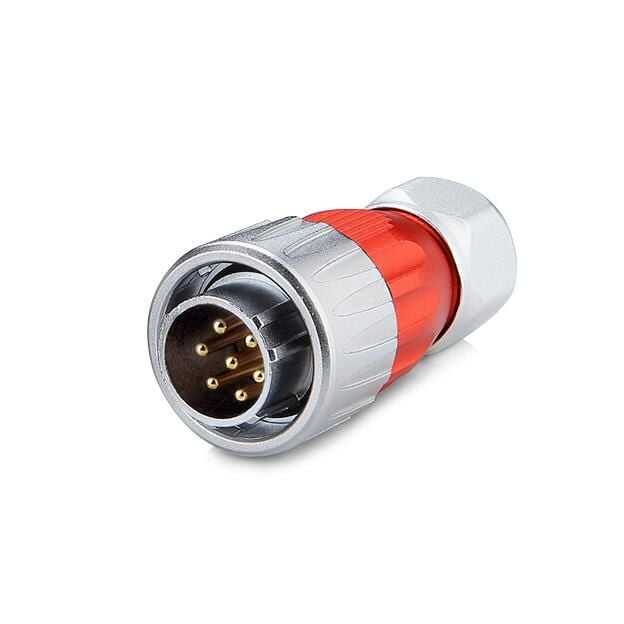

DH-20-C07PE-03-001 7-Pin Waterproof Connector - Male
DH-20 series waterproof connectors use unique waveform to meet customer's demand It features spring design, standard card slot, rotary locking type and stylish design. Widely used in LED display, industrial equipment, stage lighting equipment and other fields.
Usage Areas
- LED tri-proof lighting/outdoor lighting
- LED display
- Test measurement
- Industrial control system
- Control system
- Power equipment

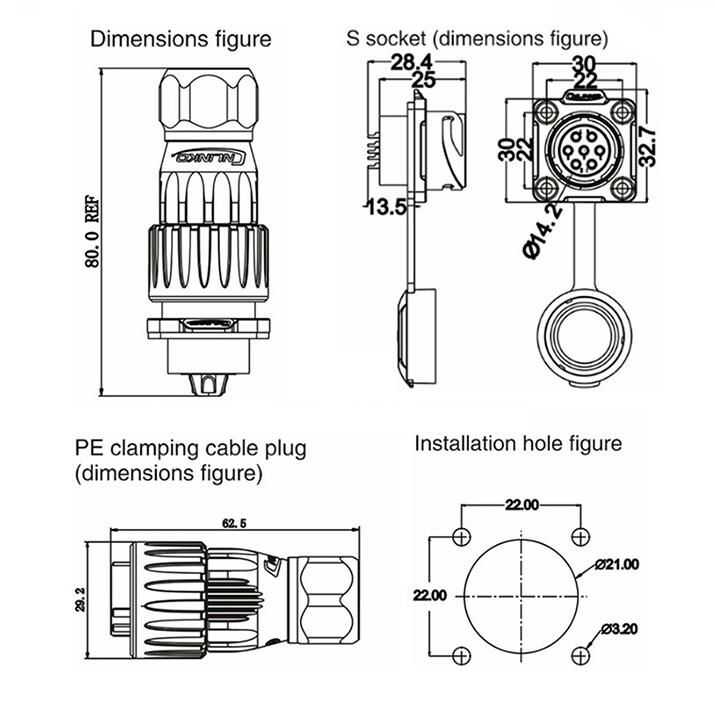

Technical Specifications
- Alloy external protective material
- Military standard three-point spiral locking
- IP65/67 rating when connected
Cable specifications: 16-18 AWG
Diameter range: Φ7mm～Φ9mm
Contact diameter × number: Φ1.8×7
Rated Current (A): 12A
Operating voltage (AC.V.rms): 500V
Contact resistance: <2.5mΩ
Withstand Voltage (AC.V) 1 minute: 2500V
Insulation resistance: ＞500MΩ
Protection level: ;IP65/IP67
Operating temperature: -40℃～80℃
Connection mode: 1/ 4 Bayonet Connection Types
Mounting Cable: Soldering / Crimping
Copper pins: Copper alloy (gold plated 4U)
Flammability rating: UL94-V0
