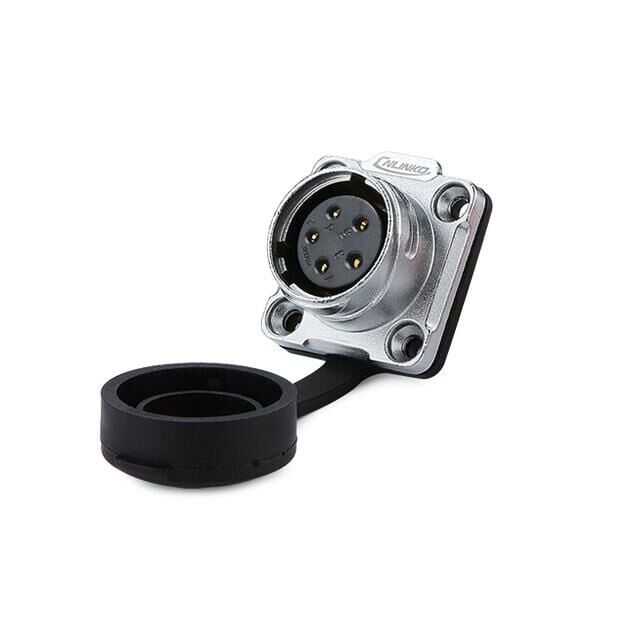

DH-20-J05SX-03-401 5-Pin Waterproof Connector - Female
DH-20 series waterproof connectors, unique waveform to meet customer's demand It features spring design, standard card slot, rotary locking type and stylish design. Widely used in LED display, industrial equipment, stage lighting equipment and other fields.
Usage Areas
- LED tri-proof lighting/outdoor lighting
- LED display
- Test measurement
- Industrial control system
- Control system
- Power equipment

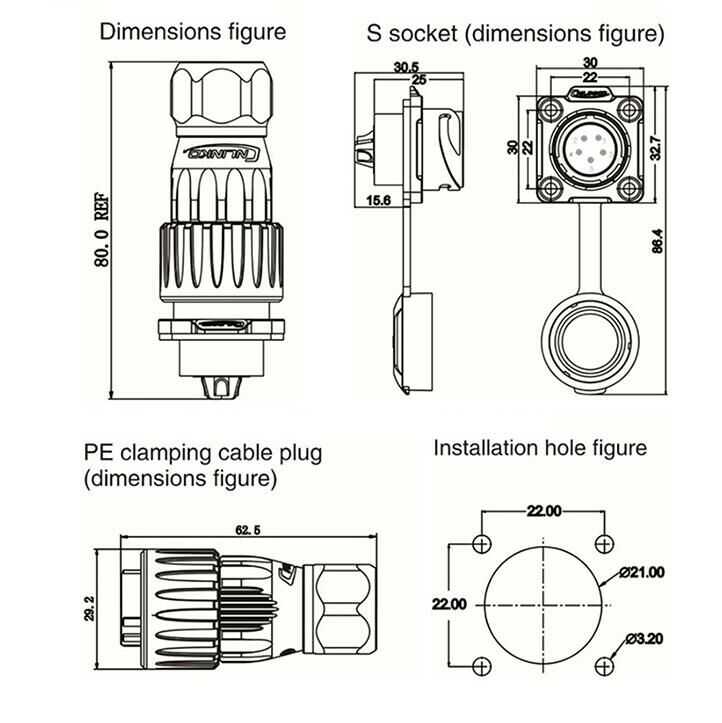

Technical Specifications
- Alloy external protective material
- Military standard three-point spiral locking
- IP65/67 rating when connected
-
Cable specifications: 16-18 AWG
-
Diameter range: Φ7mm～Φ9mm
-
Contact diameter × number: Φ1.8×5
-
Rated Current (A): 12A
-
Operating voltage (AC.V.rms): 500V
-
Contact resistance: <2.5mΩ
-
Withstand Voltage (AC.V) 1 minute: 2500V
-
Insulation resistance: ＞500MΩ
-
Protection level: ;IP65/IP67
-
Operating temperature: -40℃～80℃
-
Connection mode: 1/ 4 Bayonet Connection Types
-
Mounting Cable: Soldering / Crimping
-
Copper pins: Copper alloy (gold plated 4U)
-
Flammability rating: UL94-V0
