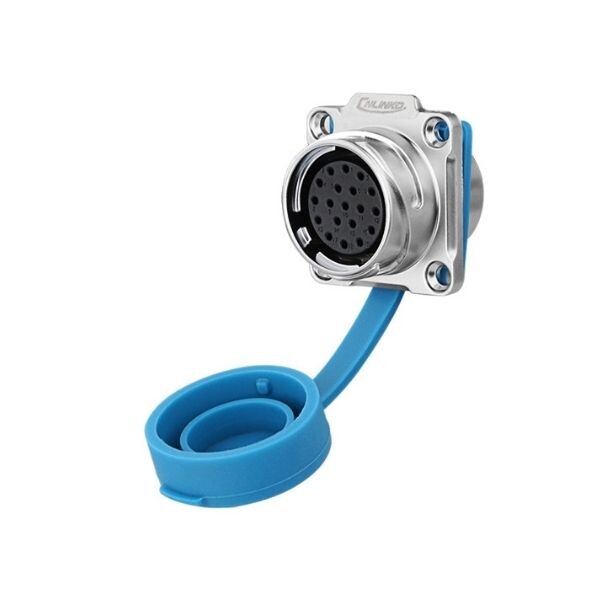

DH-24-J19SX-03-401A 19-Pin Waterproof Connector - Female
DH-24 series waterproof connectors with unique wave spring design, standard card slot, rotary locking type and fashion design to meet customer's demand, are widely used in LED display, industrial equipment, stage lighting equipment and other fields.
CNLINKO products can be produced with cables upon request. Special production is valid for bulk purchases. For special requests, you can send an e-mail to info@motorobit.com.
Technical Specifications
-
High temperature and pressure resistance
-
IP65/67 class when connected
-
Pin Count: 19
- Pin Diameter - 3 mm
-
Cable Connection - 14-12 AWG
-
Rated Current - 5 Ampere
-
Operating Voltage - 250V AC
-
Contact Resistance - <500mOhm
-
Withstand Voltage - 1500V
-
Ingress Protection - IP65/67
-
Operating Temperature - -40 C - 80 C
-
Body Material - High Performance Plastic
-
Flammability Rating - UL94-V0

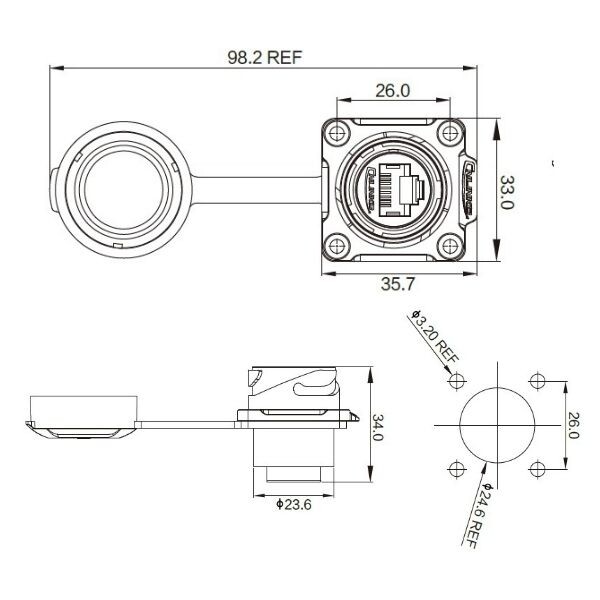

DH24 Waterproof Connector Datasheet
