DH24-HDMI-MP-MP-1M-001 Waterproof HDMI Male Connector - 1M Cable

Ratings & Reviews (0)
Comment
Brand: CNLINKO
Product Code: KOM.KNN.05.000493
Stokta 10+ ürün
788.40 TL + VAT
VAT Included: 946.08 TL

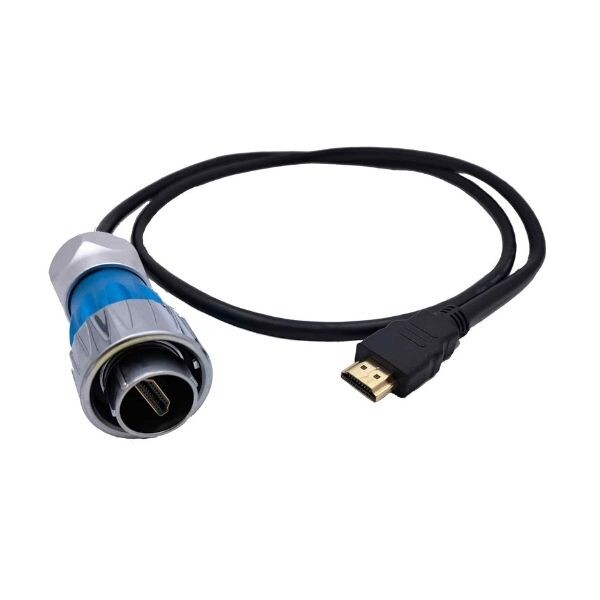

DH24-HDMI-MP-MP-1M-001 Waterproof HDMI Male Connector - 1M Cable

DH-24 HDMI high-performance HDMI connector features a quick-locking feature for secure signal and data transmission. IP67 data connector with a plastic housing of size 24 in the DH series. The black plastic construction with gold-plated contacts ensures a long service life. The HDMI connector is waterproof and dustproof in accordance with the IP67 protection class. The metal lock ensures a secure connection and protects against data and power interruptions. The maximum rated power for the data connector is 0.5 amps. The plug has a quick-connect connection. Quick connector design allows for one-handed plugging and unplugging.

CNLINKO products can be produced with cables upon request. Special production is valid for bulk purchases. For special requests, you can send an e-mail to info@motorobit.com.


Technical Specifications

  • DH-24 HDMI
  • IP65/67 rating when connected
  • Rated Current - 0.5 Ampere
  • Cable Diameter: 6.5mm
  • Operating Temperature - -40 C - 80 C
  • Body Material - Aluminum Alloy
  • Flammability Rating- UL94-V0


DH24 Waterproof Connector Datasheet

Weight(Kg)
0.1
Features
Connector Pin
HDMI
