EG3013 SOIC-8 Half-Bridge Driver IC
EG3013 is a cost-effective half-bridge designed for N-channel MOSFETs and IGBTs driver IC. The EG3013 includes unified logic inputs for low and high side drivers, fixed dead time to protect FETs, anti-crossover logic, high voltage level shifter, noise filter enhanced immunity, and provides high current capability for external N-channel MOSFETs, Application for brushless motor drivers.
Areas of Use
| Series |
EG3013 |
| Supply Voltage |
4.5-30V |
| Quiet Current Icc |
6mA |
| Fixed Dead Time |
120nS |
| Operating temperature |
-45°C~+85 °C
|

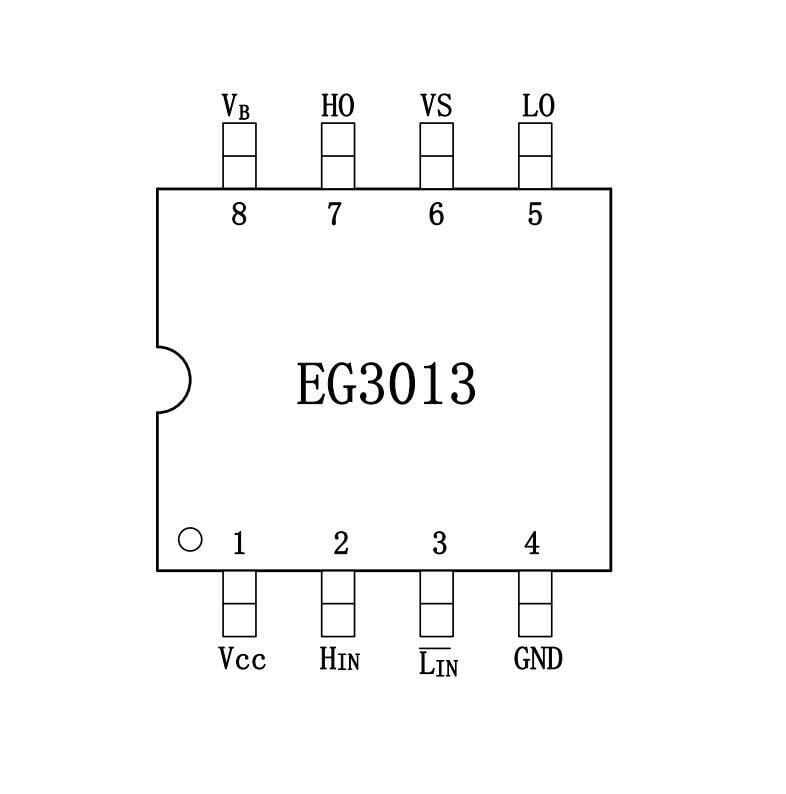

| Number of Pins |
8
|
| Package Type |
SOIC-8 |
