EPS3210 32V 10A Adjustable DC Power Supply

Ratings & Reviews (0)
Comment
Brand: Profuse
Product Code: GUC.AGC.01.000065
Stokta son 10 ürün
4,500.00 TL + VAT
VAT Included: 5,400.00 TL

EPS3210 32V 10A Adjustable DC Power Supply

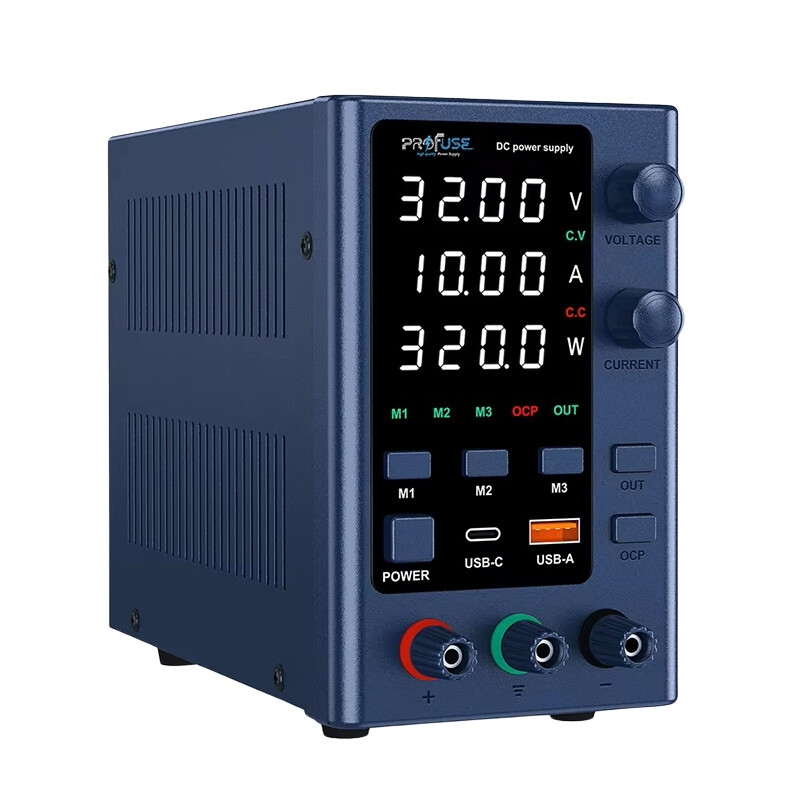

EPS3210 is a high precision DC power supply that can provide up to 10A output between 0-32V. There are one setting encoder on the product that allows you to make voltage and current adjustments. When these encoders that allow adjustment are pressed, the setting sensitivity can be changed.

EPS3210 model has a memory feature. You can save the voltage-ampere data you set with the M1, M2, M3 keys on the device, and then you can quickly access that setting with the saved key.

The product does not provide output directly when it is on. The output button must be pressed for it to provide output. The product provides output when the green light is on. In addition, there is an OCP short circuit overcurrent protection button on the product. OCP is a function that protects against overcurrent in short circuit situations.

EPS3210 is lighter than old-style power supplies thanks to its modern design and circuit structure. It also has a USB and Type-C output that allows charging phones and similar 5V devices.

Features:

  • Model: EPS3210
  • Input: 220V AC (socket)
  • Output Voltage: 0-32.00V
  • Current: 0-10.00A
  • Resolution: 0.01V / 0.001A
  • Accuracy: 0.5%±20
  • OVP: High Voltage Protection
  • OCP: High Current Protection
  • OPP: High Power Protection
  • OTP: High Temperature Protection
  • SCP: Short Circuit Protection
  • Dimensions: 90x190x145mm
  • Weight: 1.15kg

Product Contents:

  • EPS3210 Power Supply
  • AC Power Cable
  • English User Manual
  • 2 Crocodile Probe Cables

EPS3210-instruction

Weight(Kg)
2
