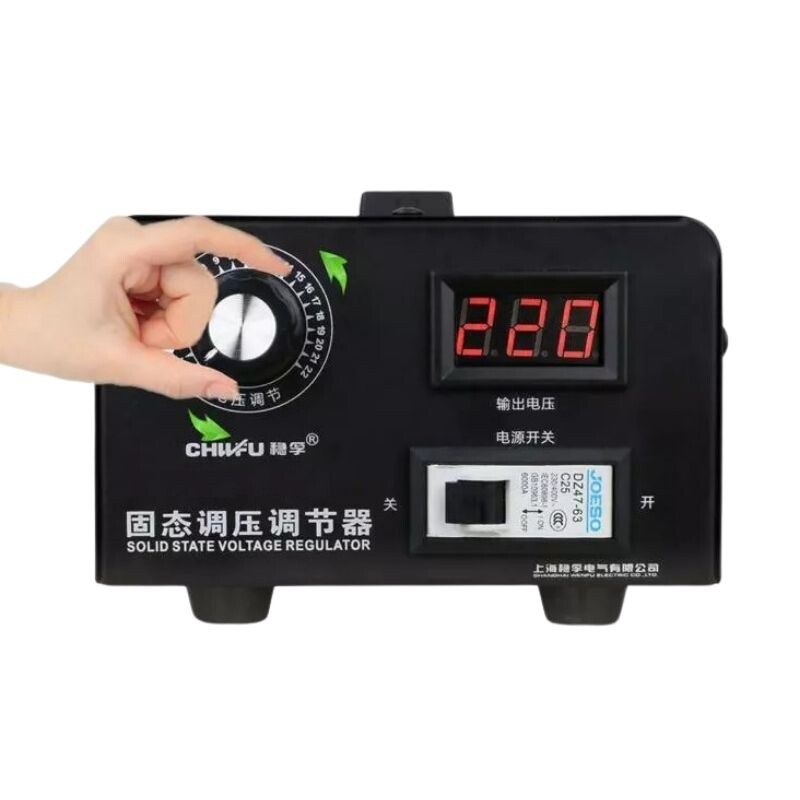

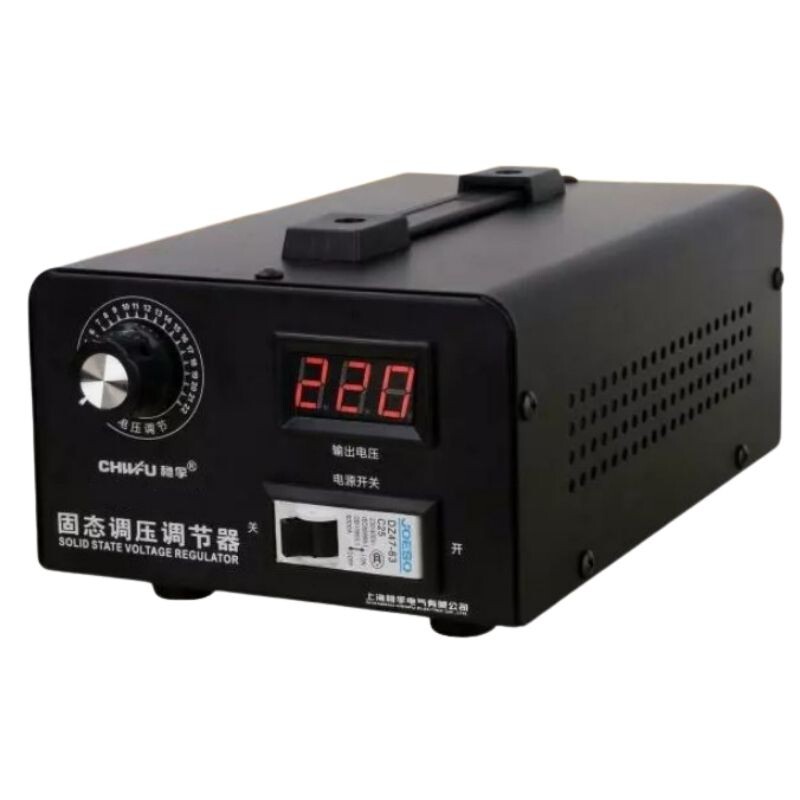

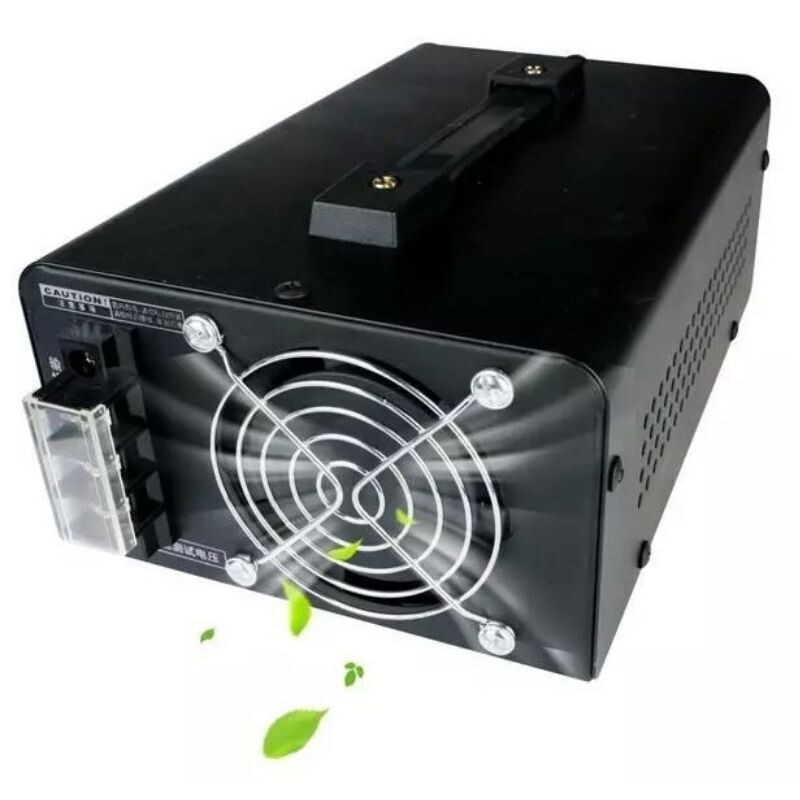

SSR-200VA AC220V 200A Adjustable Solid State Voltage Regulator

SSR-200VA AC220V 200A Adjustable Solid State Voltage Regulator

SSR-200VA AC220V 150A Adjustable Solid State Voltage Regulator is a voltage regulator with SSR inside. Rated current is 200 amps. It is powered by AC 220V. The device, which works with AC 220V, is generally used with heating furnaces, power distribution systems, engraving machines, electric drills, etc.

There are outputs inside that you can get signal output. It has 0-5V, 0-10V, 4-20ma multi-signal system.

You can use SV 5.5-6 4-6mm insulated cable ends as a connection socket.

Precautions and Operating Instructions

• The output voltage measured under no load is the same as the input. It can only be measured if a load over 50W is connected.
• Input and output are AC. Do not connect DC power.
• The 200A in the product name refers to the highest current of the module when operating under resistive loads. The actual carrying power is within 10KW, and the inductive load is 1/3 of the resistive load.
• It is recommended to use electronic smart products carefully.
• When used with metal cased electrical appliances, there must be grounding.

Features

• Model: SSR-200VA
• Input Voltage: AC 220V
• Rated Current: 200A
• Output Voltage 0-220V AC (Adjustable)
• Peak Power: 10000W
• Dimensions: 22.5x15x9 cm
• Weight: 2.5 Kg
