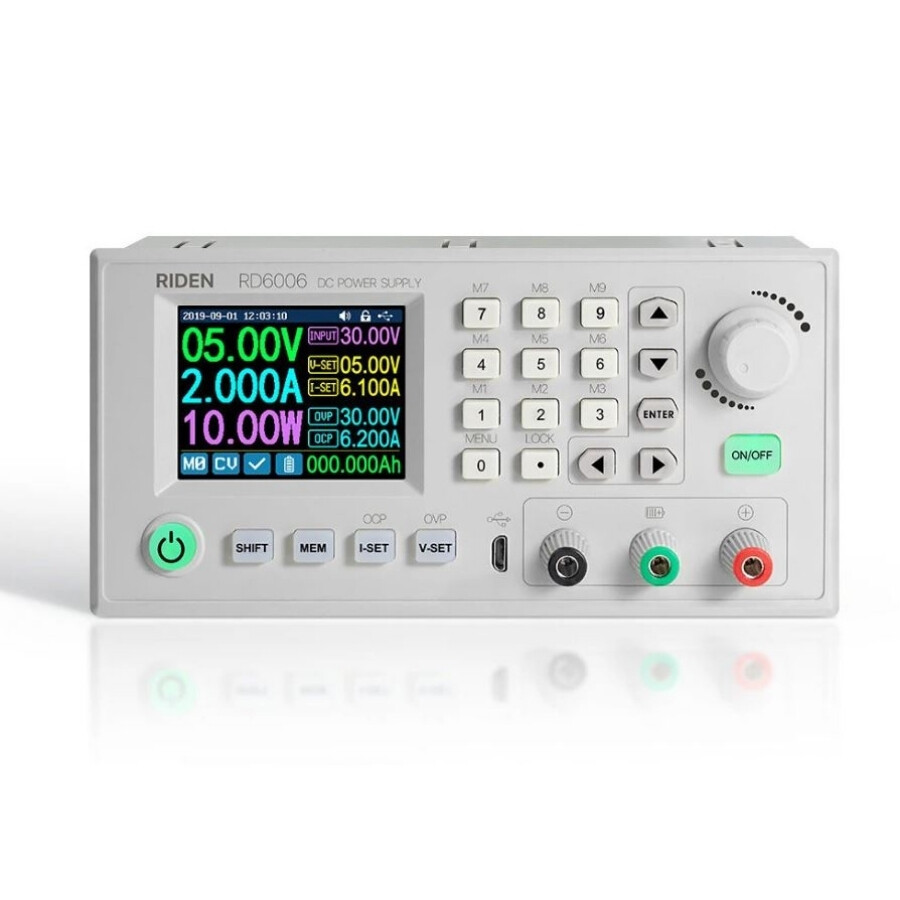

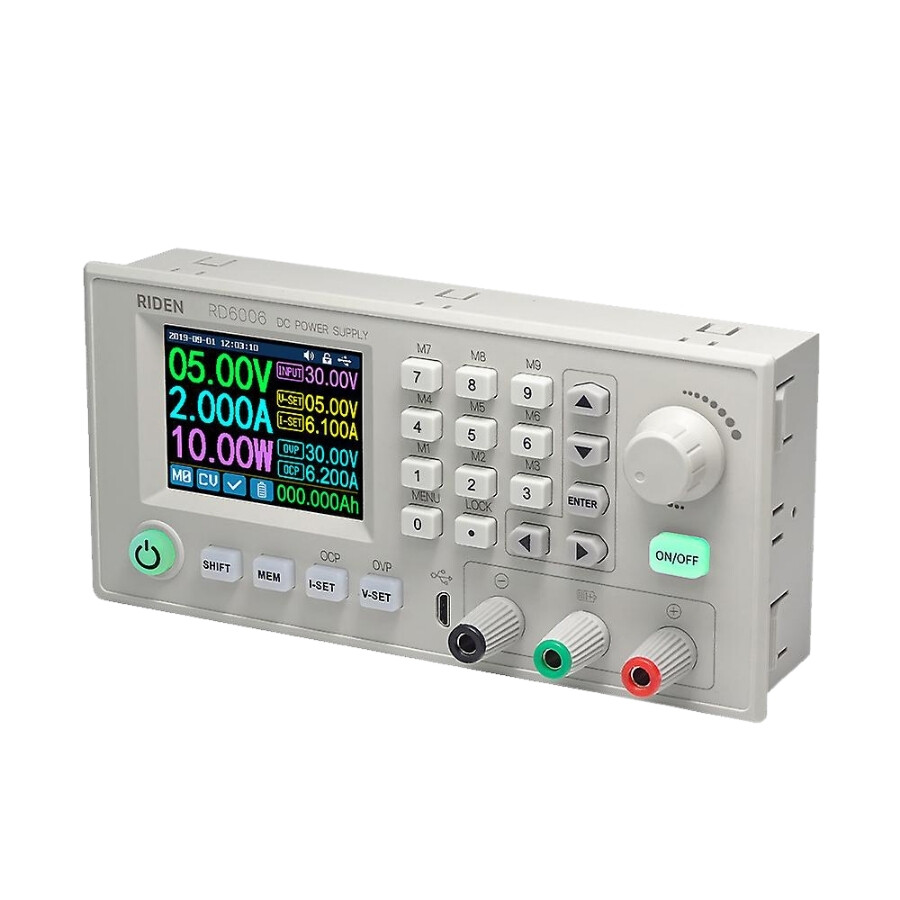

RD6006 0-60V 6A Digital Wifi Controlled Adjustable Power Source
RD6006 0-60V 6A Digital Wifi Controlledü Adjustable Power Source. Adjustable power with digital display that has 95% output efficiency and can output voltage between 0-60 and up to 6 amps. source.
SMPS power supply is not included in the product.
Technical Specifications
- Input Voltage: 6 - 70V DC
- Output Voltage: 0 - 60V DC
- Output Amperage: 0 - 6A
- Power: 360W
- Frequency: 60-80 kHz
- Efficiency: 95%
- Number of Phases: 1
- Response Time: 2ms
- Operating Humidity Range: 10 ~ 80% RH
- Operating Temperature Range: -20 ~ 75°C

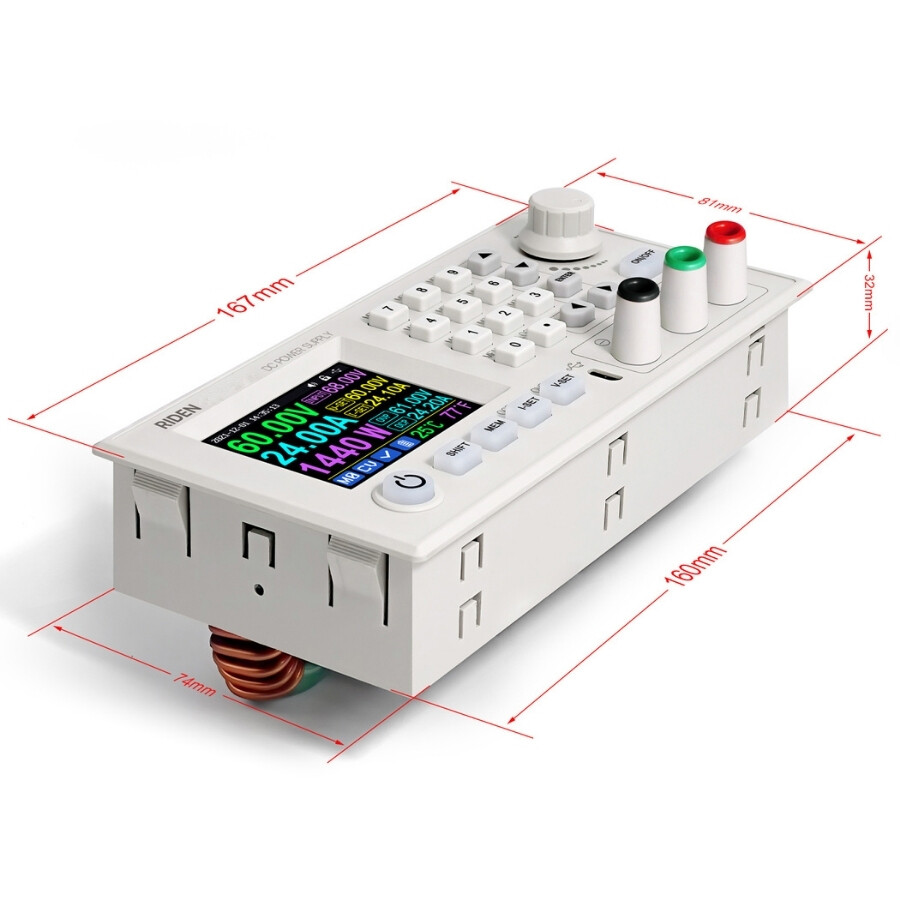

- Dimension: 167x81x69mm
