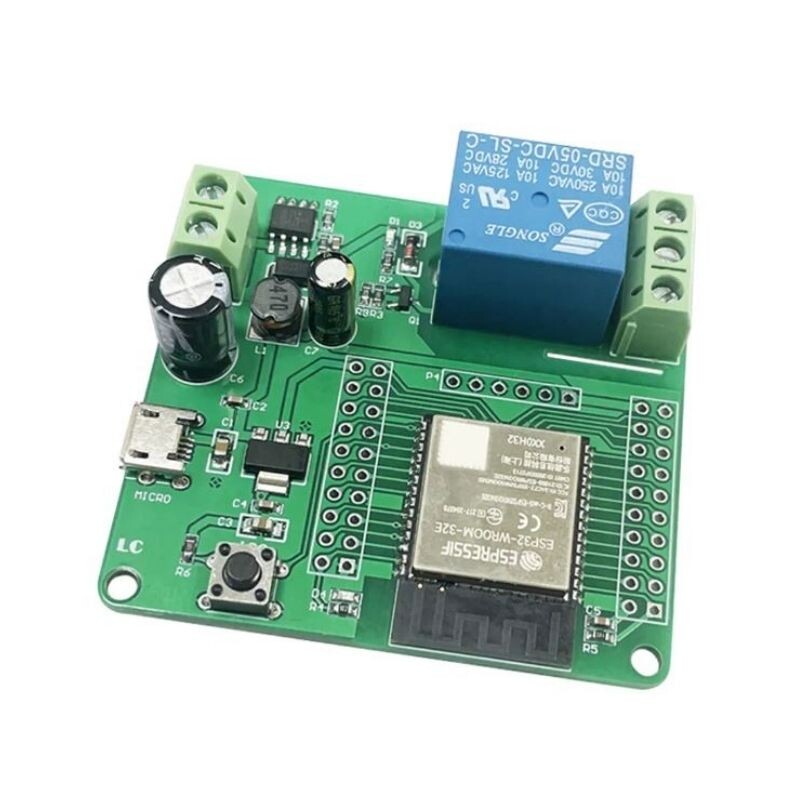

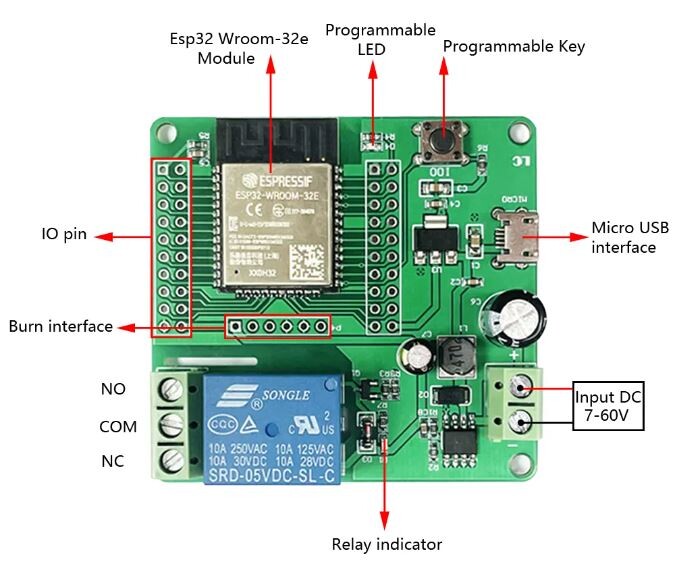

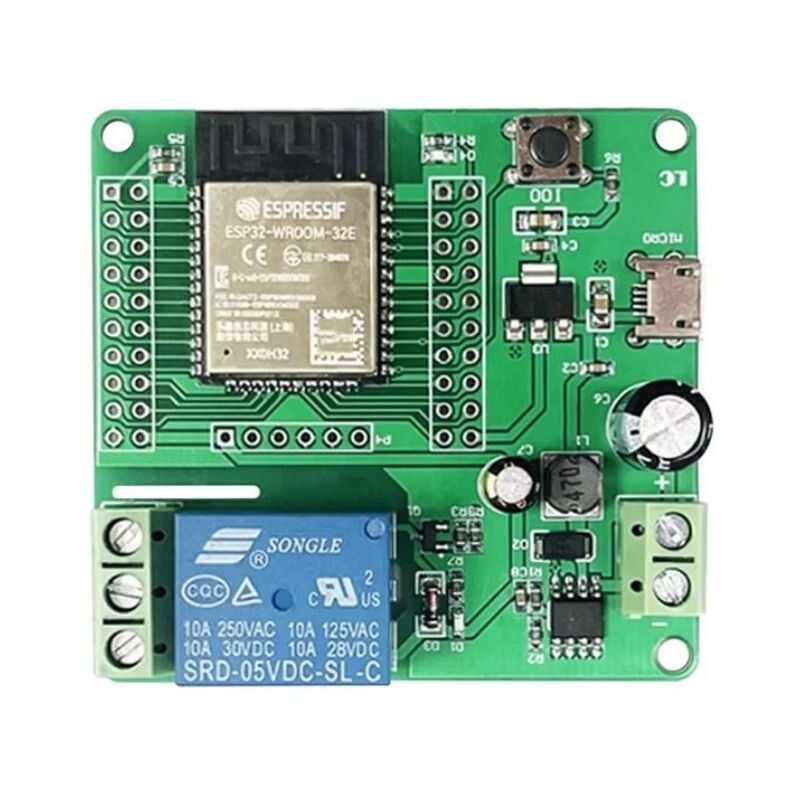

ESP32-WROOM-32E Relay Module
ESP32 1 channel relay development board is equipped with ESP32-WROOM-32E WiFi&BLE module, all I/O ports goes out and supports DC 5-60V power supply mode. ESP32 is suitable for secondary development and learning, smart home wireless control and other occasions.
ESP32 supports the use of Arduino IDE development tools, which provide reference programs in the Arduino development environment.
Technical Specifications
-
Onboard stable ESP32- WROOM-32E module, large capacity 4M Bytes Flash
-
ESP32 module I/O port and UART program download port are all suitable for secondary development
-
Power supply mode supports DC7-60V and micro USB 5V
-
Onboard ESP32 module I/O programmable keys
-
ESP32 supports the use of AD IDE development tools that provide reference programs under the AD development environment
-
On-board 5V relay, output switch signal, AC Suitable for controlling loads with operating voltage of 250V/DC 30V or less
-
Board size: 57*54mm
